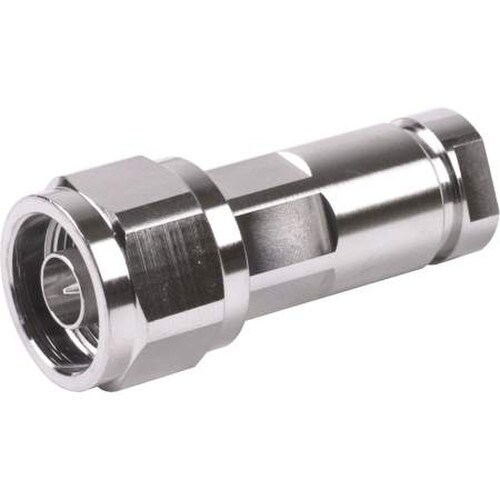

CommScope N Male Positive Lock for LDF1-50 Cables (L1TNM-PL)
- Brand: CommScope
- P\N: L1TNM-PL
- UPC: 888063742767
Live Chat
Contact Us
Description
CommScope L1TNM-PL N Male Positive Lock Connector for 1/4 in LDF1-50 Cable
Best For
Installers terminating 1/4 in LDF1-50 cable.
Why Choose the L1TNM-PL Connector?
The L1TNM-PL is a straight N male positive lock connector rated 0 to 12000 MHz at 50 ohms, with 0.05 dB insertion loss.
Key Benefits
- Type N male positive lock, straight
- 0 to 12000 MHz, 50 ohm, 0.05 dB insertion loss
- Trimetal plated outer contact, silver plated inner contact
- Self-flare outer attachment, captivated inner attachment
- Meets RoHS and REACH-SVHC; designed, manufactured and/or distributed under ISO 9001:2015
Who Should Buy the L1TNM-PL Connector?
Buyers terminating LDF1-50 cable who need an N male positive lock connector.
Specifications
| Maximum VSWR | 1.1:1 |
| RF Connector | N Male |
| RF Impedance | 50 Ohms |
| RF Connector Body Style | Straight |
| Body | Trimetal |
| Low PIM | No |
| Body Material | Tri-Metal Plated Brass |
| Fits | LDF1-50 & LDF1RN-50 |
| Frequency Range | 0-15.8 GHz |
| Outer Contact Attachment Type | Self-flare |
