CommScope Single Sector Chain Mount for 10-30in OD Monopoles (RR-CM130)
- Brand: CommScope
- P\N: RR-CM130
- UPC: 888063491795
Live Chat
Contact Us
Description

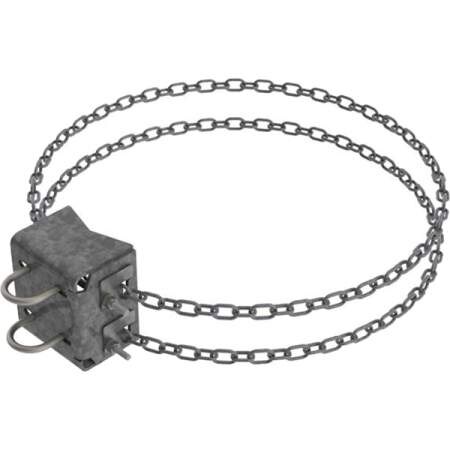

CommScope Single Sector Chain Mount (RR-CM130)
Single sector chain mount for 10 inch to 30 inch OD monopoles
Specifications
Product Classification
| Product Type | Chain mount kit |
General Specifications
| Chains, quantity | 2 |
| Pipe, quantity | 0 |
| Sectors, quantity | 1 |
Dimensions
| Height | 203.2 mm | 8 inch |
| Width | 203.2 mm | 8 inch |
| Length | 203.2 mm | 8 inch |
| Chain Length | 2400.3 mm | 94.5 inch |
| Mounting Diameter, maximum | 762 mm | 30 inch |
| Mounting Diameter, minimum | 203.2 mm | 8 inch |
| Pipe Outer Diameter | 60.96 mm | 2.4 inch |
| Mounting Circumference, maximum | 2392.68 mm | 94.2 inch |
| Mounting Circumference, minimum | 635 mm | 25 inch |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating | 120 mph (BWS) at 100 feet AGL |
| Wind Rating Criteria | One 96 in x 10 in panel antenna per sector |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and Weights
| Included | Brackets | Chains | Hardware |
| Packaging quantity | 1 |
| Weight, net | 10 kg | 22.046 lbs. |
Regulatory Compliance/Certifications
| Agency | Classification |
|---|---|
| ROHS | Compliant/Exempted |
CHINA-ROHS | Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
