CommScope TNC male for 1/4" Superflex (F1TTM-C)

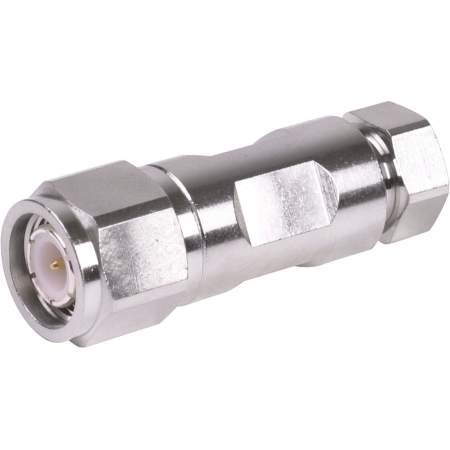

Introducing the CommScope TNC Male Connector for 1/4" Superflex (F1TTM-C)

Upgrade your wireless and radiating connections with the CommScope TNC male connector for 1/4" Superflex (F1TTM-C). Designed for professionals who demand high-quality, reliable connections, this connector is part of the HELIAX® product series and is compatible with FSJ1-50A cables. With its straight body style and gold-plated inner contact, this connector ensures optimal performance and durability.

Key Features and Benefits

• High-quality TNC male interface for secure connections
• Compatible with FSJ1-50A cable family
• Gold-plated inner contact for enhanced conductivity
• Self-clamping outer contact for easy installation
• Wide operating frequency band (0 – 10000 MHz)
• Excellent shielding effectiveness (-110 dB)
• Robust mechanical and environmental specifications

Technical Specifications

The CommScope TNC male connector for 1/4" Superflex (F1TTM-C) boasts impressive technical specifications, including:

• 3rd Order IMD at Frequency: -112 dBm @ 910 MHz
• Average Power at Frequency: 0.4 kW @ 900 MHz
• Cable and Connector Impedance: 50 ohm
• dc Test Voltage: 1500 V
• Inner Contact Resistance, maximum: 1.5 mOhm
• Insulation Resistance, minimum: 5000 mOhm
• Peak Power, maximum: 5 kW
• RF Operating Voltage, maximum (vrms): 500 V

Additionally, this connector has been tested for mechanical shock, corrosion, moisture resistance, thermal shock, and vibration, ensuring its durability and reliability in various environments.

Environmental Specifications

The CommScope TNC male connector for 1/4" Superflex (F1TTM-C) is designed to withstand a wide range of temperatures, making it suitable for various applications:

• Operating Temperature: -55 °C to +85 °C (-67 °F to +185 °F)
• Storage Temperature: -65 °C to +125 °C (-85 °F to +257 °F)

This connector is also compliant with ISO 9001:2015, ROHS, CHINA-ROHS, and UK-ROHS regulations, ensuring its quality and safety for use.

Upgrade Your Connections Today

Don't settle for subpar connections. Upgrade your wireless and radiating connections with the CommScope TNC male connector for 1/4" Superflex (F1TTM-C) and experience the difference in performance and reliability. Order now and enhance your connectivity!
