DIRECTV 4-DSWM SWM Expander Passive Module (SWM-EXPNDR-P-R0-09)

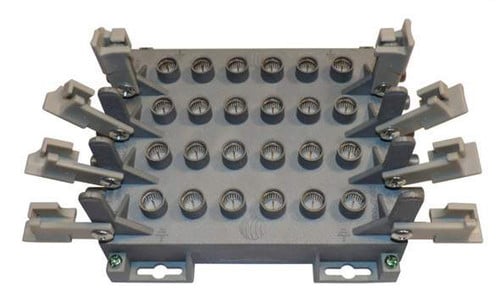

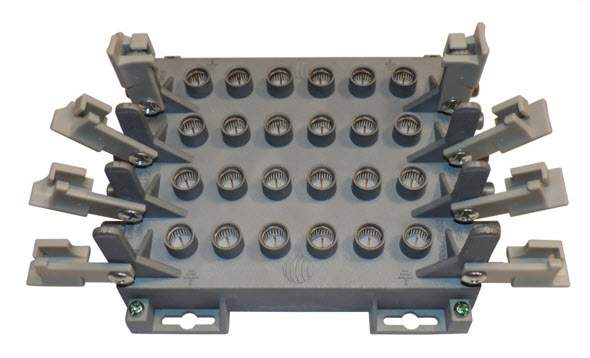

DIRECTV SWM-EXPNDR-P-R0-09 Passive Expander for Up to Four DSWM-30 Modules

Best For

Indoor commercial DIRECTV distribution systems that need to connect up to four compatible DSWM-30 multiswitch modules.

Why Choose It

This passive wall-mountable expander organizes satellite, module-power, and grounding connections in a multi-DSWM installation.

Key Benefits

• Supports up to four DSWM-30 modules.
• Six satellite inputs, two PI-29Z power inputs, and four module power outputs.
• Four ground lugs and auto-termination of unused ports.
• Indoor wall-mountable design.

Who Should Buy

Qualified DIRECTV system installers planning a DSWM-30 installation with the required power supplies and external polarity locker.

Product Details

Part number: SWM-EXPNDR-P-R0-09. Requires one PI-29Z supply for every two DSWM-30 modules. It does not power the LNB and is not compatible with legacy SWM-8, SWM-16, or SWM-32 units. Follow the installation specification.
