DX Engineering MB-2 Passive Splitters DXE-MB-2 (DXE-MB-2)
- Brand: DX Engineering
- P\N: DXE-MB-2
Live Chat
Contact Us
Description
Description

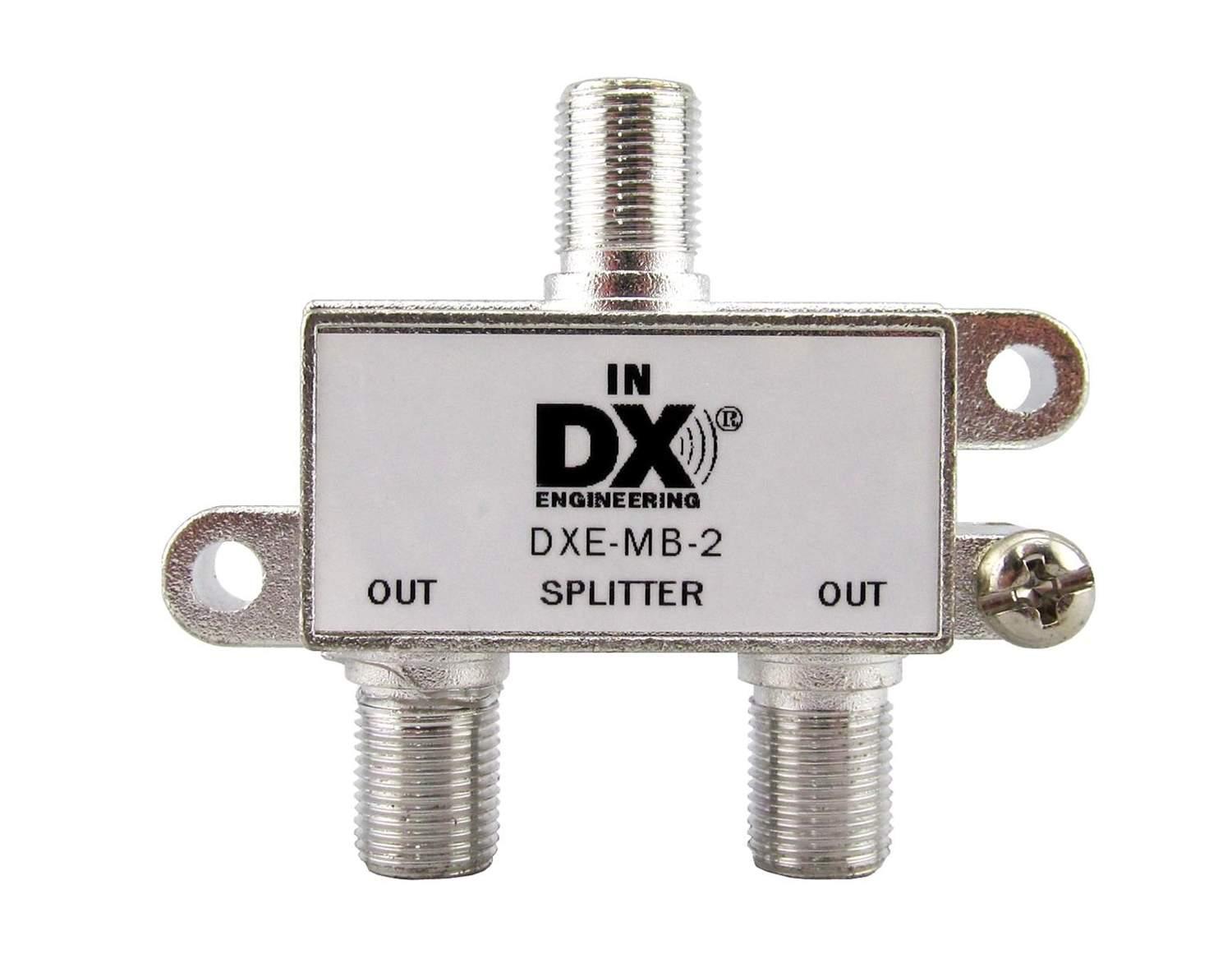

DX Engineering DXE-MB-2 Two-Way Passive Splitter
Split a combined AM, FM, TV or satellite-radio signal to two locations over coaxial cable. DX Engineering rates the MB-2 from 500 kHz to 2.4 GHz with approximately 3.5 dB insertion loss. One output port passes DC power back toward the input for compatible powered equipment.
- Two passive output ports
- Frequency range: 500 kHz–2.4 GHz
- F-female connectors
- Approximate insertion loss: 3.5 dB
- DC power passing on one output port
Use the specified power-passing port when the system includes a coax-powered device.
