Laird 152-156 MHz 3dB Fiberglass Omnidirectional Antenna (FG1523)
- Brand: Laird Connectivity
- P\N: FG1523
- UPC: 729198218720
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description

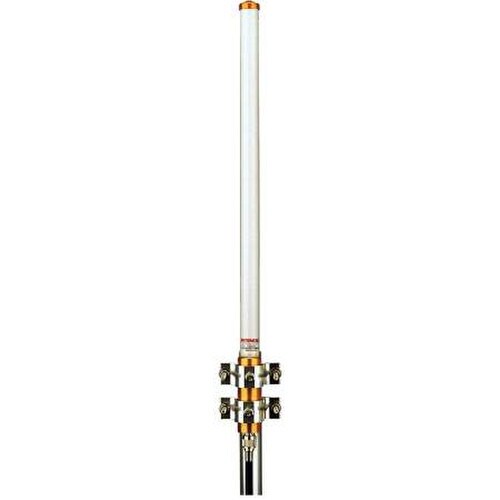

Laird 152-156 MHz 3dB Fiberglass Omnidirectional Antenna (FG1523)
LAIRD's FG1523 3 dBd gain omnidirectional antenna operates in the 152 – 156 MHz frequency range. This high-performance fiberglass VHF omni antenna has a durable gold-anodized sleeve that will not oxidize and is terminated with an N Female connector. The maximum power input is 250 W. Order the FM1 or FM2 mount separately.
Laird Technologies' FG1523 omni antenna is a durable yet economical base station antenna solution.
Specifications
| Item Weight | 4 lbs. |
| Item Length | 107 inch |
| Gain dBd | 2.95 dBd |
| Gain dBi (dBi) | 5.1 dBi |
| Jumper Included | No |
| RF Connectors | N Female |
| Polarization | Vertical |
| Specific Frequency | 152-156 MHz |
| Vertical Beamwidth (Deg) | 33 |
| Maximum VSWR | 2.0:1 |
| Maximum Rated Wind Velocity | 100 miles/hour |
| Tuned Frequency (MHz) | 152-156 |
| Lightning Protection | DC Ground |
| Flat Plate Area (Sq. Ft) | Not Specified |
| Lateral Thrust @ RWV (lb) | Not Specified |
| Support Pipe Dia. | 1 1/4 inch |
| Support Pipe Length | Not Specified |
| Frequency Band | VHF |
Downloads
