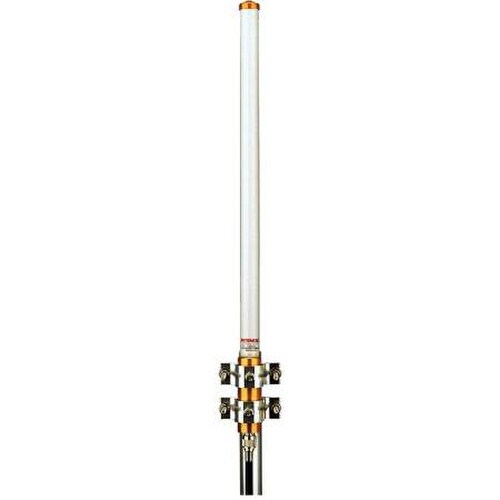

Laird 152-156 MHz Unity Gain Fiberglass Omnidirectional Antenna (FG1520)
- Brand: Laird Connectivity
- P\N: FG1520
- UPC: 729198941833
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
Laird 152-156 MHz Unity Gain Fiberglass Omnidirectional Antenna (FG1520)
LAIRD's FG1520 unity gain omnidirectional antenna operates in the frequency range 152 – 156 MHz. This high-performance fiberglass VHF omni antenna has a durable gold-anodized sleeve that will not oxidize and is terminated with an N Female connector. The maximum power input is 250 W. Order the FM1 or FM2 mount is recommended for mounting.
Laird Technologies' 148 – 152 MHz 3 dB gain omnidirectional fiberglass base antenna provides long-lasting value.
Specifications
| Item Weight | 4 lbs. |
| Item Length | 68 inch |
| Gain dBd | 0 dBd |
| Gain dBi (dBi) | 2.15 dBi |
| Jumper Included | No |
| RF Connectors | N Female |
| Polarization | Vertical |
| Specific Frequency | 152-156 MHz |
| Vertical Beamwidth (Deg) | 75 |
| Maximum VSWR | 2.0:1 |
| Maximum Rated Wind Velocity | 100 miles/hour |
| Tuned Frequency (MHz) | 152-156 |
| Lightning Protection | DC Ground |
| Flat Plate Area (Sq. Ft) | Not Specified |
| Lateral Thrust @ RWV (lb) | Not Specified |
| Support Pipe Dia. | 1 1/4 inch |
| Support Pipe Length | Not Specified |
| Frequency Band | VHF |
Downloads
