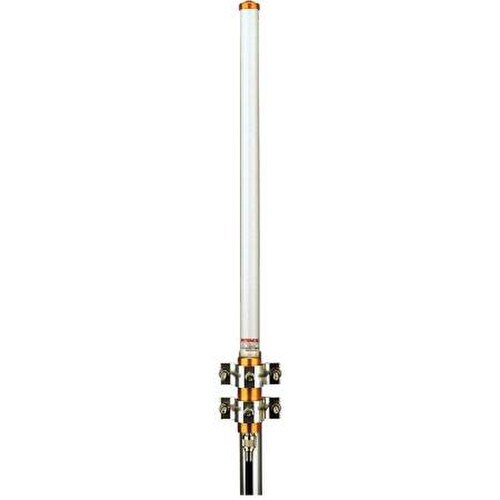

Laird 168-174 MHz 3dB Fiberglass Omnidirectional Antenna (FG1683)
- Brand: Laird Connectivity
- P\N: FG1683
- UPC: 729198522780
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
Laird 168-174 MHz 3dB Fiberglass Omnidirectional Antenna (FG1683)
LAIRD's FG1683 3 dBd gain omnidirectional antenna operating in the 168 – 174 MHz frequency range provides the highest gain combined with the best efficiency. The fiberglass VHF omni antenna has a durable gold-anodized sleeve that will not oxidize and is terminated with an N Female connector. Fiberglass radome is a special ultraviolet (UV) treated to stand up against the sun. The maximum power input is 200 W. Order the FM1 or FM2 mount separately
The Laird 168 – 174 MHz 3 dB gain omnidirectional antenna is economical, efficient and a great solution for your base station needs.
Specifications
| Item Weight | 4 lbs. |
| Item Length | 107 inch |
| Gain dBd | 3 dBd |
| Gain dBi (dBi) | 5.15 dBi |
| Jumper Included | No |
| RF Connectors | N Female |
| Polarization | Vertical |
| Specific Frequency | 168-174 MHz |
| Vertical Beamwidth (Deg) | 33 |
| Maximum VSWR | 2.0:1 |
| Maximum Rated Wind Velocity | 100 miles/hour |
| Tuned Frequency (MHz) | 168-174 |
| Lightning Protection | DC Ground |
| Flat Plate Area (Sq. Ft) | Not Specified |
| Lateral Thrust @ RWV (lb) | Not Specified |
| Support Pipe Dia. | 1 1/4 inch |
| Support Pipe Length | Not Specified |
| Frequency Band | VHF |
