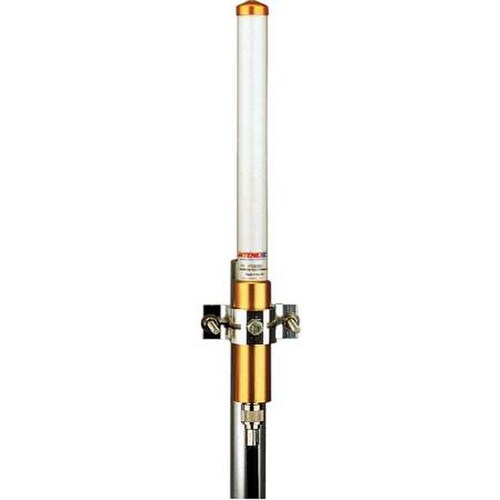

Laird 3dB Fiberglass Omnidirectional Antenna (FG8063)
- Brand: Laird Connectivity
- P\N: FG8063
- UPC: 729198197148
Live Chat
Contact Us
Description
Laird FG8063 806-866 MHz 3 dB Fiberglass Omnidirectional Antenna
Best For
The Laird FG8063 is a fiberglass omnidirectional antenna for 806-866 MHz with 3 dB gain, a 200-watt power rating and a direct N female termination.
Why Choose the FG8063?
The antenna is fiberglass and terminates directly in an N female connector.
Key Benefits
- Covers 806-866 MHz
- 3 dB gain
- 200 W power rating
- Direct N female termination
- Omnidirectional fiberglass design
Who Should Buy the FG8063?
Buyers who need a 3 dB fiberglass omni antenna for 806-866 MHz.
Specifications
- Brand: Laird
- Frequency range: 806-866 MHz
- Gain: 3 dB
- Power: 200 W
- Pattern: omnidirectional, fiberglass
- Connector: direct N female
Specifications
| Item Weight | 3 lbs. |
| Item Length | 25 inch |
| Gain dBd | 3 dBd |
| Gain dBi (dBi) | 5.15 dBi |
| Jumper Included | No |
| RF Connectors | N Female |
| Polarization | Vertical |
| Specific Frequency | 806-866 MHz |
| Vertical Beamwidth (Deg) | 33 |
| Maximum VSWR | 1.5:1 |
| Maximum Rated Wind Velocity | 100 miles/hour |
| Tuned Frequency (MHz) | N/A |
| Connector Placement | Bottom |
| Lightning Protection | DC Ground |
| Electrical Downtilt | Fixed |
| Fixed Electrical Downtilt | 0 deg |
| Lateral Thrust @ RWV (lb) | 4.3 |
| Frequency Band | SMR |
