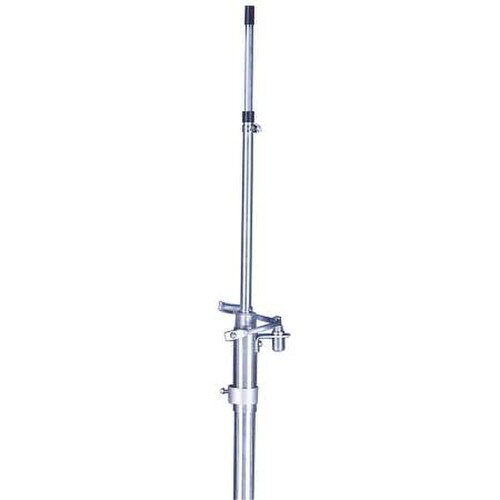

Laird 450-470 MHz 5dB Fiberglass Omnidirectional Antenna (FG4505W)
- Brand: Laird Connectivity
- P\N: FG4505W
- UPC: 729198496142
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
Laird 450-470 MHz 5dB Fiberglass Omnidirectional Antenna (FG4505W)
Laird's 5 dB peak gain fiberglass omni antenna operates in the 450 - 470 MHz frequency range. This UHF antenna has a durable gold-anodized sleeve that will not oxidize and is terminated with an N Female connector. The maximum power input is 100-Watts.
The high quality, focused beam provides the highest gain and best efficiency making it a industry's best value proposition.
Common applications include public safety and private networks.
Note: Order the FM1 or FM2 mount separately.
Specifications
| Item Weight | 4 lbs. |
| Item Length | 76 inch |
| Gain dBd | 5 dBd |
| Gain dBi (dBi) | 7.15 dBi |
| Jumper Included | No |
| RF Connectors | N Female |
| Polarization | Vertical |
| Specific Frequency | 450-470 MHz |
| Vertical Beamwidth (Deg) | 27 |
| Maximum VSWR | 2.0:1 |
| Maximum Rated Wind Velocity | 100 mile/hour |
| Tuned Frequency (MHz) | 450-470 |
| Lightning Protection | DC Ground |
| Lateral Thrust @ RWV (lb) | 12.6 Lbs. |
| Support Pipe Dia. | 1 5/16 inch |
| Support Pipe Length | N/A |
| Frequency Band | UHF |
