Laird 450-470 MHz Unity Gain Fiberglass Omnidirectional Antenna (FG4500)
- Brand: Laird Connectivity
- P\N: FG4500
- UPC: 729198802455
Live Chat
Contact Us
Description

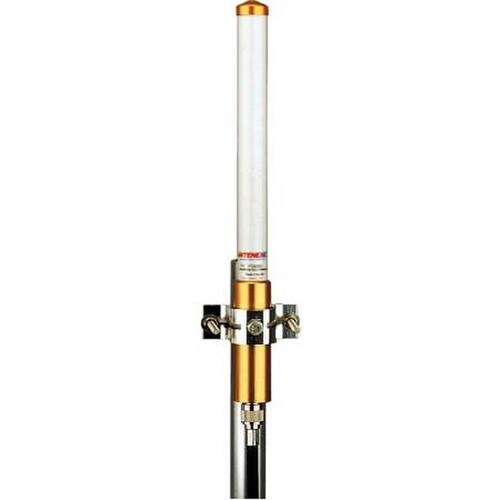

Laird FG4500 450-470 MHz Unity Gain Fiberglass Omnidirectional Antenna
Best For
The Laird FG4500 is a unity-gain UHF fiberglass omnidirectional antenna for 450-470 MHz with an N female connector and a 200 W maximum power input.
Why Choose the FG4500?
It has a gold-anodized sleeve that does not oxidize.
The FM1 or FM2 mount is ordered separately.
Key Benefits
- Operates at 450-470 MHz
- Unity gain
- Omnidirectional fiberglass design
- Gold-anodized sleeve that will not oxidize
- N female connector
- 200 W maximum power input
Who Should Buy the FG4500?
Buyers who need a fiberglass omnidirectional base antenna for 450-470 MHz, commonly used in land-based, marine radio and data transmission systems for public safety, commercial and military users and will order a mount separately.
Specifications
- Brand: Laird
- Frequency range: 450-470 MHz
- Gain: Unity gain
- Pattern: omnidirectional, fiberglass
- Sleeve: gold anodized
- Connector: N female
- Maximum power: 200 W
- Mount: sold separately (FM1 or FM2)
Specifications
| Item Weight | 1.2 lbs. |
| Item Length | 26 inch |
| Gain dBd | 0 dBd |
| Gain dBi (dBi) | 2.15 dBi |
| Jumper Included | No |
| RF Connectors | N Female |
| Polarization | Vertical |
| Specific Frequency | 450-470 MHz |
| Vertical Beamwidth (Deg) | 75 |
| Maximum VSWR | 2.0:1 |
| Maximum Rated Wind Velocity | 125 miles/hour |
| Tuned Frequency (MHz) | 450-470 |
| Lightning Protection | DC Ground |
| Flat Plate Area (Sq. Ft) | N/A |
| Lateral Thrust @ RWV (lb) | 12.6 |
| Support Pipe Dia. | 1 5/16 |
| Support Pipe Length | Not Specified |
| Frequency Band | UHF |
Downloads
