Laird 450-470MHz 1/2 Wave Antenna No Ground Plane (B4502N)
- Brand: Laird Connectivity
- P\N: B4502N
- UPC: 729198633165
Live Chat
Contact Us
Description
Laird 450-470MHz 1/2 Wave Antenna No Ground Plane (B4502N)

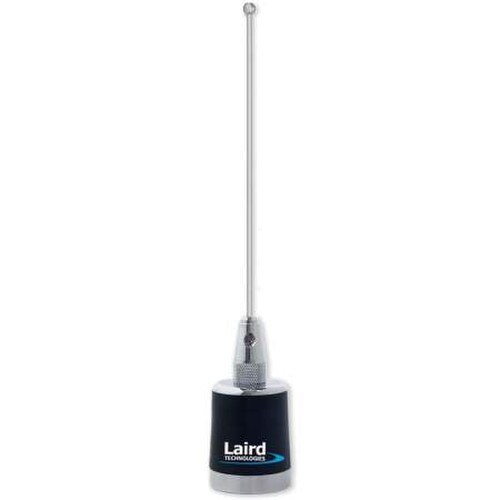

The Laird B4502N wave antenna is a 450-470 MHz 1/2 wave antenna with 2.4dB gain and no ground plane. The advantage of a wave antenna is that they are non-resonant which allows for a wider bandwidth than a typical resonant antenna. Please be advised that this product does not include a spring and/or mount, and the spring/mount should be ordered separately.
Key Features
- Operates within 450-470 MHz
- Wider bandwidth than resonant antennas
- Stainless steel 12.5" whip
- 2.4 dBi gain
- Product does not include a spring and/or mount
Specifications
| Gain dBi (dBi) | 2.4 dBi |
| Maximum Power (W) | 200 |
| Color | Black, Silver |
| Mobile Antenna Mounting Type | NMO |
| Specific Frequency | 450-470 MHz |
| Whip Length | 12.5 inch |
| Whip Material | Stainless Steel |
| Frequency Band | UHF |
