Laird 450-470MHz 5dB Antenna No Ground Plane (B4505CN)
- Brand: Laird Connectivity
- P\N: B4505CN
- UPC: 729198139360
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description

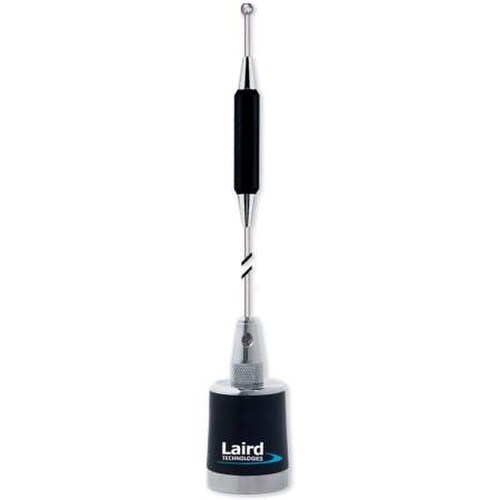

Laird 450-470MHz 5dB Antenna No Ground Plane (B4505CN)
The Laird B4505CN is a 32 inch chrome base loaded mobile UHF whip antenna with NMO base and NO ground plane required. This omnidirectional antenna ofers 5 dbi gain and 100 watts max power and operates in the 450MHz - 470MHz range.
Lairds’ongoing commitment to refinement in mechanical and electrical design has resulted in the most technically advanced mobile load coil antennas on the market. Exclusive features such as stainless steel whips, housings constructed with ABS material injected molded around a solid brass insert, and gold plated push pin contacts make Laird Technologies the obvious choice for quality and long lasting value for demanding mobile radio communications.
KEY FEATURES
- Long tuning ferrule allows for greater freedom in frequency adjustment without trimming
- High performance mobile antenna operates on a No Ground plane (NGP) requirement
- Straight Stainless steel corona ball stays on the rod – no metal interactions
- Easy Installation / NMO mountable
- 100% tested on a network analyzer
APPLICATIONS
- Public Safety
- Transportations/Logistics
- Utilities
- Military
Specifications
| Gain dBi (dBi) | 5 dBi |
| Maximum Power (W) | 200 |
| Color | Black, Silver |
| Mobile Antenna Mounting Type | NMO |
| Specific Frequency | 450-470 MHz |
| Whip Length | 30.5 inch |
| Whip Material | Stainless Steel |
| Frequency Band | UHF |
