Laird 7dB Fiberglass UHF Omnidirectional Antenna (FG4507)
- Brand: Laird Connectivity
- P\N: FG4507
- UPC: 729198702854
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description

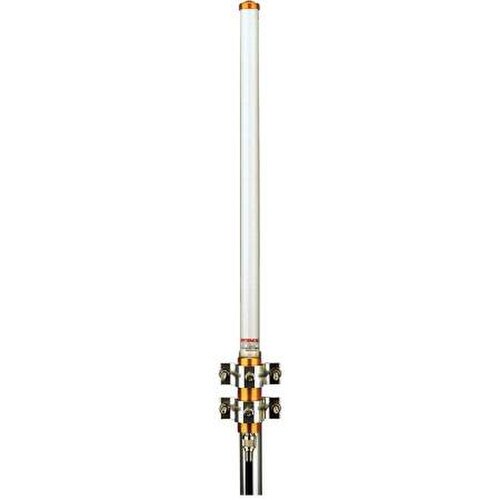

Laird 7dB Fiberglass UHF Omnidirectional Antenna (FG4507)
LAIRD's FG4507 7 dBd gain fiberglass omnidirectional antenna operates in the 450 – 460 MHz frequency range. The UHF omni antenna has a durable gold-anodized sleeve that will not oxidize and is terminated with an N Female connector. The maximum power input is 100 W. Order the FM1 or FM2 mount separately.
The high quality, focused beam this omnidirectional fiberglass UHF antenna creates provides the highest gain and the best efficiency.
Specifications
| Item Weight | 4 lbs. |
| Item Length | 107 inch |
| Gain dBd | 7 dBd |
| Gain dBi (dBi) | 9.15 dBi |
| Jumper Included | No |
| RF Connectors | N Female |
| Polarization | Vertical |
| Specific Frequency | 450-460 MHz |
| Vertical Beamwidth (Deg) | 27 |
| Maximum VSWR | 2.0:1 |
| Maximum Rated Wind Velocity | 100 miles/hour |
| Tuned Frequency (MHz) | 450-460 |
| Lightning Protection | DC Ground |
| Flat Plate Area (Sq. Ft) | Not Specified |
| Lateral Thrust @ RWV (lb) | 12.6 |
| Support Pipe Dia. | 1 5/16 inch |
| Support Pipe Length | Not Specified |
| Frequency Band | UHF |
