Laird 902-928 MHz 3dB Fiberglass Omnidirectional Antenna (FG9023)
- Brand: Laird Connectivity
- P\N: FG9023
- UPC: 729198873967
Live Chat
Contact Us
Description

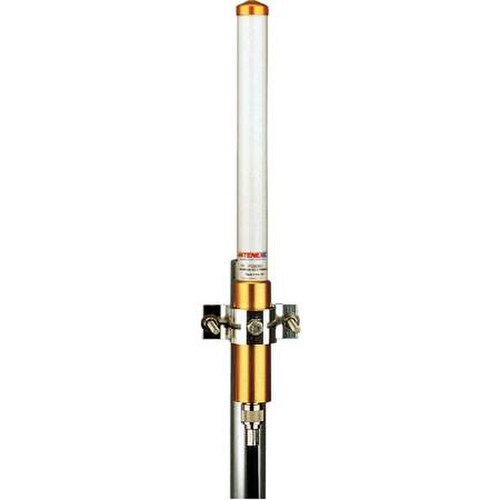

Laird FG9023 902-928 MHz 3 dB Fiberglass Omnidirectional Antenna
Best For
The Laird FG9023 is a fiberglass omnidirectional base-station antenna for 902-928 MHz with 3 dB gain, a 200-watt rating and a direct N female termination.
Why Choose the FG9023?
It has a gold base. Order the 65724 or 69293 clamp set separately.
Key Benefits
- Covers 902-928 MHz
- 3 dB gain
- 200 W power handling
- Direct N female termination
- Fiberglass construction with gold base
Who Should Buy the FG9023?
Installers of fixed 902-928 MHz wireless and RF systems who need a fiberglass omni base antenna and will order a clamp set separately.
Specifications
- Brand: Laird
- Frequency range: 902-928 MHz
- Gain: 3 dB
- Pattern: omnidirectional, fiberglass
- Power: 200 W
- Connector: direct N female
- Base: gold
- Mounting: clamp set 65724 or 69293, sold separately
Specifications
| Item Weight | 1 lbs. |
| Item Length | 25 in |
| Gain dBd | 3 dBd |
| Gain dBi (dBi) | 5.15 dBi |
| Jumper Included | No |
| RF Connectors | N Female |
| Polarization | Vertical |
| Specific Frequency | 902-928 MHz |
| Vertical Beamwidth (Deg) | 33 |
| Maximum VSWR | 2.0:1 |
| Maximum Rated Wind Velocity | 125 miles/hour |
| Tuned Frequency (MHz) | N/A |
| Connector Placement | Bottom |
| Lateral Thrust @ RWV (lb) | Not Specified |
| Frequency Band | 900 MHz |
