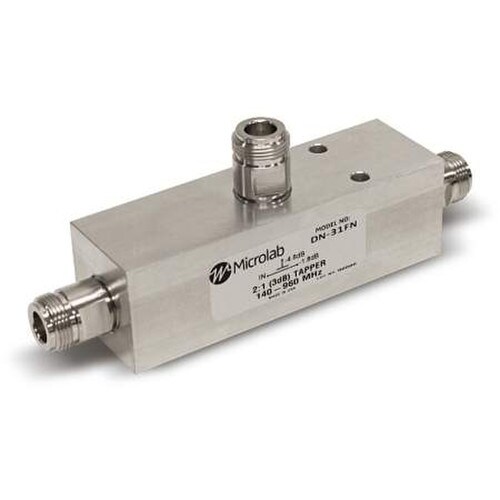

Microlab FXR 137-960 MHz 3 dB Low PIM Taper N-Female (DN-31FN)

  • Brand: Microlab FXR
  • P\N: DN-31FN
  • UPC: 729198874209
(0)No Reviews yet

Availability: In Stock


Your Price: $192.00

Do you have questions?

Please contact our experts for assistance.

Description

Description

The DN-31FN series of Directional Couplers are a tapered stripline design covering from 698 to 3,600 MHz. Units couple off a defined fraction of the signal with minimal reflections or loss. Each model is available as a 4 port coupler. The extremely wide frequency range allows use with multiband antennas, leaky cable systems and wireless base stations. With minimal solder joints and a low loss dielectric, the dissipative loss has been minimized and reliability enhanced.
Key Features
  • Frequency Range 137-960 MHz
  • Nominal Coupling 3 dB
  • PIM Typical -161 dBc
  • Maximum Power 500 W
  • RF Connectors N-Female
  • Maximum VSWR 1.40:1
  • Dimensions 4.02" L x 1.25" W x 1.60" H
