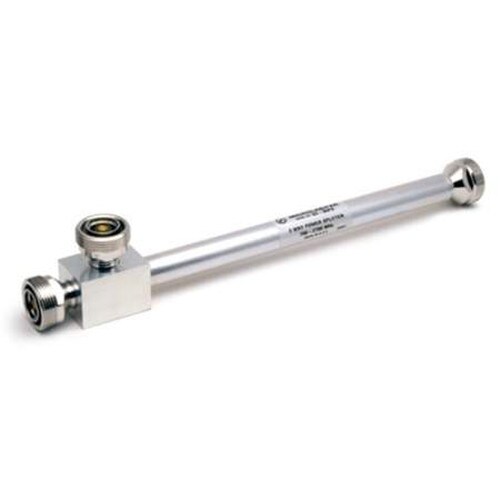

Microlab FXR 694-2700 MHz 2-Way Power Splitter (D2-85FN)

Microlab Model D2-85FN 2 way power splitter has been designed to evenly split high power cellular signals with minimal reflections and loss. Joints are moisture sealed with gaskets to meet IP67. The rugged, lightweight design can be easily attached to a wall with the supplied bracket and clip.

Special Order. Non-Cancellable and Non-Returnable

Key Features

• Frequency Range 694-2700 MHz
• PIM Typical -161 dBc
• Maximum Power 500 W
• Loss 3 dB
• RF Connectors N-Female
• Maximum VSWR 1.20:1
• PIM Minimum -150 dBc
• Dimensions 10.52" L x 1.69" W x 1.13" H
