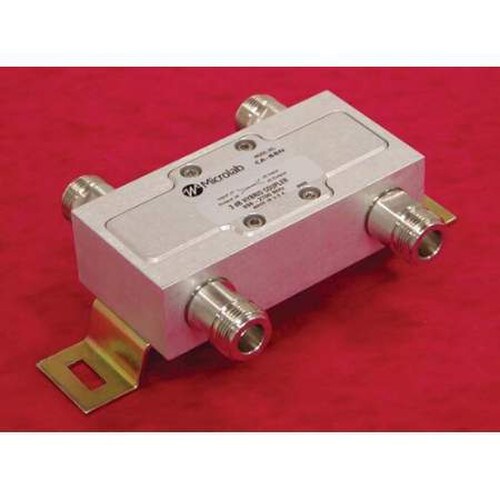

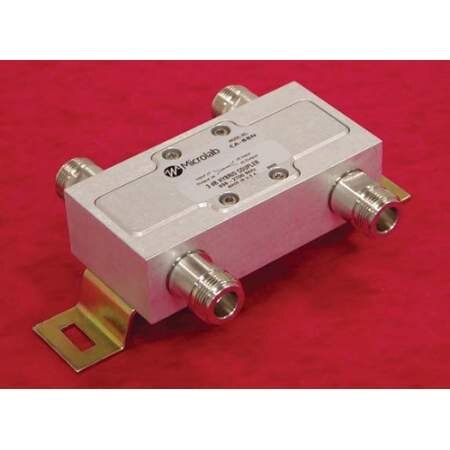

Microlab FXR 698-2700 MHz Hybrid Coupler N-Female (CA-88N)

Microlab FXR 698-2700 MHz Hybrid Coupler N-Female (CA-88N)

Key Features and Benefits

Designed to meet the specific needs of Verizon Wireless, the Microlab FXR Hybrid Coupler is a high power, 4-port device that guarantees high isolation and passive intermodulation (PIM) of less than -150 dBc. It is commonly used to combine two wireless carriers with powers up to 100W each, into a single antenna feed.

• Frequency Range: 698-2700 MHz
• Nominal Coupling: 3 dB
• PIM Typical: -150 dBc
• Coupled Loss (dB): 3.1
• Maximum Power: 100 W
• Directivity: 25 dB
• RF Connectors: N-Female
• Maximum VSWR: 1.20:1

Technical Specifications

The Microlab FXR Hybrid Coupler is designed with a frequency range of 698-2700 MHz, a nominal coupling of 3 dB, and a coupled loss of 3.1 dB. It can handle a maximum power of 100 W and has a directivity of 25 dB. The RF connectors are N-Female, and it has a maximum VSWR of 1.20:1.

To maintain the PIM performance of the hybrid, the unused output port must be terminated with a low PIM load of appropriate power.

Additional Information

The Microlab FXR Hybrid Coupler is designed to meet the special needs of Verizon Wireless. It is commonly used to combine two wireless carriers with powers up to 100 W each, into a single antenna feed. This ensures a seamless and efficient connection for your wireless needs.

With its high isolation and guaranteed PIM of less than -150 dBc, you can trust the Microlab FXR Hybrid Coupler to deliver a reliable and high-quality signal. Its robust design and high-quality components ensure long-lasting performance and durability.

Experience the difference in your wireless connection with the Microlab FXR Hybrid Coupler. Order now and elevate your wireless experience.
