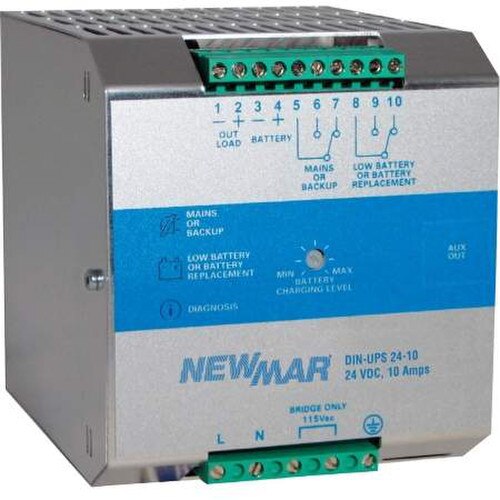

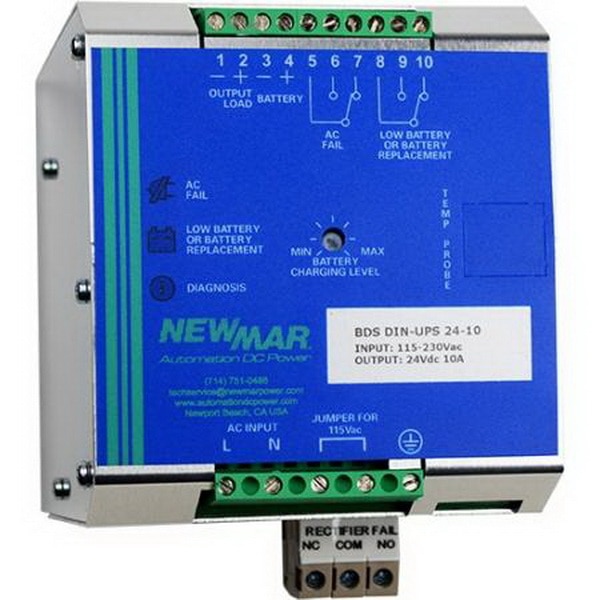

Newmar NFPA 24VDC 10A DIN Power System (BDS-DIN-UPS-24-10)

Newmar NFPA 24VDC 10A DIN Power System: The Ultimate Power Solution

Key Features:

• Combines all system power functions: power supply, battery charger, and status monitoring in one compact DIN rail mount unit
• Dual outputs for load and battery
• 3 step charging for rapid battery recovery, programmable for battery type, with optional temperature compensation sensor
• Charge current limit is adjustable so that essential output power to the load is maintained while the battery is being recharged
• Low voltage disconnect protects the battery from total discharge
• Automatic periodic battery health diagnosis
• High operating temperature range
• Alarm contacts: AC fail, battery status/condition

Unmatched Power Management

The Newmar NFPA 24VDC 10A DIN Power System combines all system power functions in one compact unit. It offers dual outputs for load and battery, ensuring efficient power management. The 3-step charging system allows for rapid battery recovery, and the charge current limit is adjustable to maintain essential output power while the battery is being recharged.

Advanced Battery Protection

This power system features a low voltage disconnect that protects the battery from total discharge. It also conducts automatic periodic battery health diagnosis, ensuring your battery is always in optimal condition.

High Operating Temperature Range

With a high operating temperature range, the Newmar NFPA 24VDC 10A DIN Power System is designed to perform under demanding conditions. It also includes alarm contacts for AC fail and battery status/condition, providing real-time updates on your power system's performance.

Experience the convenience and efficiency of the Newmar NFPA 24VDC 10A DIN Power System. Order now and revolutionize your power management system.

• Battery Type: Lead Acid, Gel-Cell, Ni Cad (model BDS-DIN-UPS-48-10 only)
• Battery Charge Current Limit: 20 - 100% of charge amperage rating
• Power Restore Button: connects battery without AC present
• Power:24 VDC
• (H x W x D):10 Amps
• Dimensions: 4.5" x 3.9" x 5.3"
