PCTEL 0-1000 MHz 3/8in to 3/4in Mount Thick Plate (BMATM-NC)
- Brand: PCTEL
- P\N: BMATM-NC
- UPC: 646444873024
Live Chat
Contact Us
Description

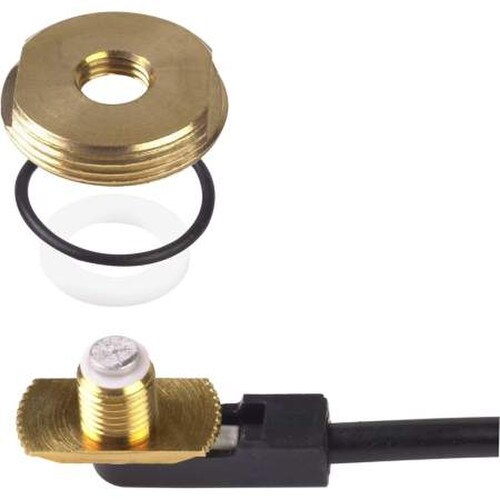

PCTEL BMATM-NC 0-1000 MHz Brass Thick-Plate Mount, 3/8 to 3/4 Inch Hole
Best For
The PCTEL BMATM-NC is a permanent brass antenna mount for 3/8 inch or 3/4 inch holes, designed for thick surfaces and rated for 0-1000 MHz.
Why Choose the BMATM-NC?
It installs from below using 3/8 inch or 3/4 inch holes and has a 1-1/8 inch-18 thread. It can be used on metal up to 3/16 inch thick.
Key Benefits
- Brass permanent mount
- For 3/8 inch or 3/4 inch holes
- 1-1/8 inch-18 thread
- Installs from below
- Metal thickness up to 3/16 inch
Who Should Buy the BMATM-NC?
Installers mounting a Motorola-style antenna through thick metal.
Specifications
- Brand: PCTEL
- Type: permanent brass mount
- Frequency: 0-1000 MHz
- Hole size: 3/8 inch or 3/4 inch
- Thread: 1-1/8 inch-18
- Installation: from below
- Metal thickness: up to 3/16 inch
Specifications
| Specific Frequency | 0-1000 MHz |
| Cable Length | 17 feet |
| Cable Type | RG-58/U |
| RF Connector | No Connector |
| Connector Installed | No |
| Thread Size | 1-1/8-18 |
| Cable Length (ft) | 17 |
Downloads
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reviews
1 review
Thick plate
by Steven
Great mount when you don't want to drill a large hole in a 3/4 ' ' thick plate.
