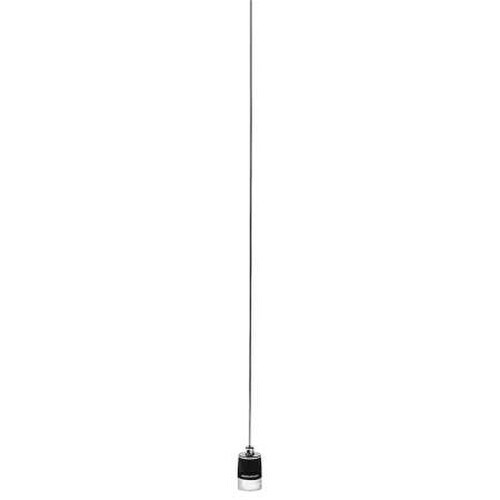

PCTEL 144 to 174 MHz 5/8 Wave Antenna Chrome Coil (MHB5800)
- Brand: PCTEL
- P\N: MHB5800
- UPC: 729198338251
Do you have questions?
Please contact our experts for assistance.
Description
PCTEL 144 to 174 MHz 5/8 Wave Antenna Chrome Coil (MHB5800)
PCTEL's 144 - 174 MHz 3 dB 200 W base loaded 5/8 wave antenna. This 52-inch VHF mobile antenna utilizes a chrome coil design with the enhancement of a heavy-duty tapered rod for maximum durability in tough environments. < 1.5:1 VSWR and 50 Ohm nominal impedance. Order NMO mount separately.
Key Features:

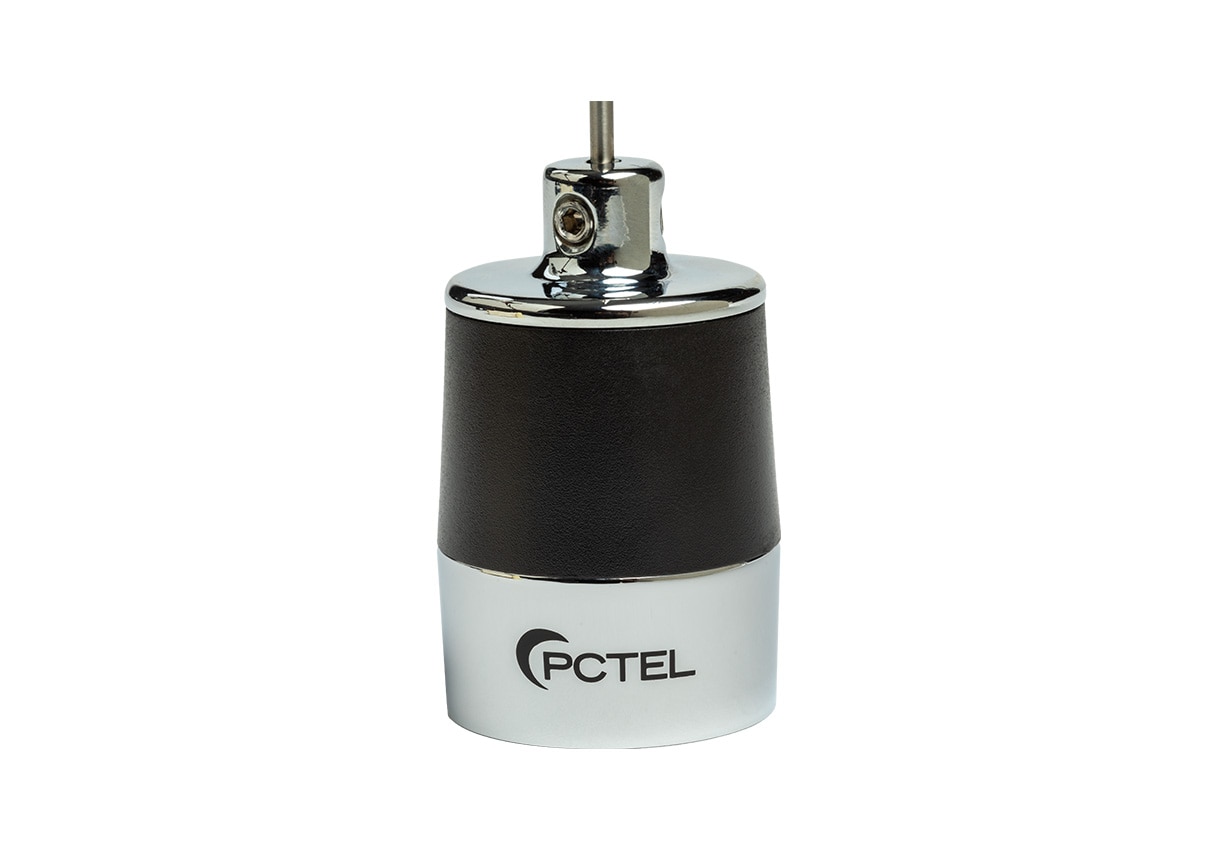

- The matching coil is supported by a low loss coil for superior performance in heavy-duty applications
- The tapered coil housing design enhances appearance and prevents moisture from entering the load
- Mates with all 1-1/8 inch -18 thread mounts, including 3/4 in mounts
Specifications
Gain dBi (dBi) | 5.1 dBi |
Maximum Power (W) | 200 |
Color | Silver |
Mobile Antenna Mounting Type | NMO |
Specific Frequency | 144-174 MHz |
Whip Length | 58 in |
Whip Material | Stainless Steel |
Frequency Band | VHF |
