PCTEL 150-174MHz 9.2dB 5 Element Yagi Antenna (MYA1505KN)

  • Brand: PCTEL
  • P\N: MYA1505KN
  • UPC: 646444826952
1 Review

Availability: In Stock


Your Price: $348.00

Do you have questions?

Please contact our experts for assistance.

Description

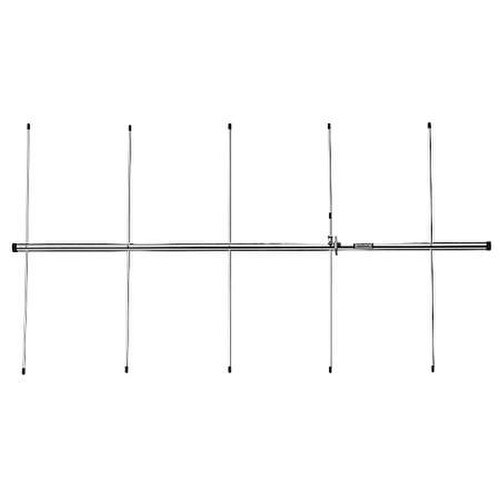

PCTEL 150-174MHz 9.2dB 5 Element Yagi Antenna (MYA1505KN)

PCTEL's MYA1505KN Maxrad 150 – 174 MHz 5 element VHF yagi, field tunable, 9.2 dB gain, 300 W, direct N Female termination includes mounting hardware.

Specifications

Item Weight4 lbs.
Gain dBi (dBi)11.3 dBi
Gain dBd9.2 dBd
Item Length72 inch
Horizontal Beamwidth56 deg
Jumper IncludedNo
Maximum Power (W)250
PolarizationLinear
RF ConnectorsN Female
Vertical Beamwidth (Deg)48
Specific Frequency150-174 MHz
Maximum Rated Wind Velocity100 miles/hour
Maximum VSWR1.5:1
Minimum Front Back Ratio20 dB
Lightning ProtectionDC Ground
Frequency BandVHF

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Reviews

1 review

  • 5
  • 0 reviews
  • 3
  • 0 reviews
  • 2
  • 0 reviews
  • 1
  • 0 reviews
Write a Review

Works well, Assemble with Care

by

Good antenna requires careful assembly. Note that full 150-174 bandwidth not possible. Must select region of interest. Spec indicates 1.3 MHz bandwidth for transmit but decent reception was achieved over 10 MHz bandwidth with 155 MHz center frequency. Boosted scanner receiver signals well above omni antenna levels. Carefully measure, mark, and cut each element symmetrically at both ends with rotary pipe cutter to tune antenna center frequency. Magnify the very small chart provided to visually interpret lengths more accurately. Setting gamma match element to "starting point" mechanical position in instructions was good enough as I had no means to tune it. Tighten threaded element bolt/nut asymetrically to pull elements to one side of boom for firm electrical contact. Otherwise the elements will float on only the threads of the bolts. No polar plot was provided which would have been helpful.
