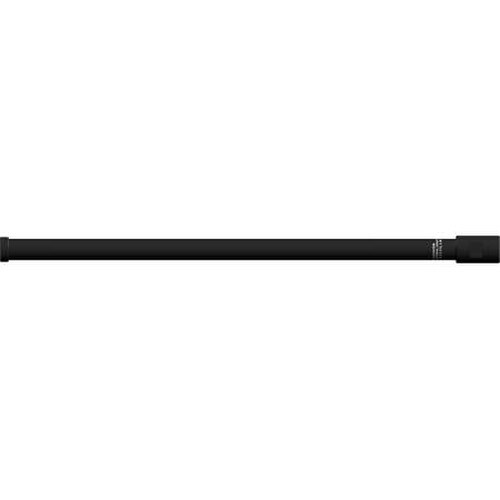

PCTEL 2.4-2.5 GHz and 6 dBi Heavy Duty Omni Antenna (BOA24006NM)
- Brand: PCTEL
- P\N: BOA24006NM
- UPC: 729198598136
Live Chat
Contact Us
Description
PCTEL 2.4-2.5 GHz and 6 dBi Heavy Duty Omni Antenna (BOA24006NM)
PCTEL's BOA24006NM heavy-duty omnidirectional carrier grade fiberglass antenna, 2.4 – 2.5 GHz, N Male, 6 dBi. BAM1109 or BAM1011-HCA mast mounts sold separately.
The BOA omnidirectional base station antenna design utilizes a linear array, encapsulated in a heavy-duty fiberglass radome with a thick walled mounting base for reliable, long term use. This rugged design withstands harsh environments making the antennas ideal for industrial wireless and military applications. The antennas in this series are DC grounded for electrostatic discharge (ESD) protection of radio components.
Features
- UV Stable, black fiberglass radome (0.625 in diameter)
- Black chrome plated mounting base
- DC grounded design
- Fully sealed IP67 design
- Type N Male or N Female connector options
Features
- Made for harsh environments – Temperature range -40°C to +85°C; Wind rated 125 mph
- IP67 compliant design – UV-stable, fiberglass radome; protects against water or dust ingress
- Black chrome plated mounting base
- DC grounded design
Specifications
| Item Weight | 0.30 lb |
| Item Height | 14.8 in |
| Item Width | 0.825 in |
| Item Length | 0.825 in |
| Gain dBd | 3.85 dBd |
| Gain dBi (dBi) | 6 dBi |
| RF Connectors | N Male |
| Specific Frequency | 2.4-2.5 GHz |
| Maximum VSWR | 1.5:1 |
| Maximum Rated Wind Velocity | 125 mile/h |
| Connector Placement | Bottom |
| Lightning Protection | DC Grounded |
| Frequency Band | 2.4 GHz |
