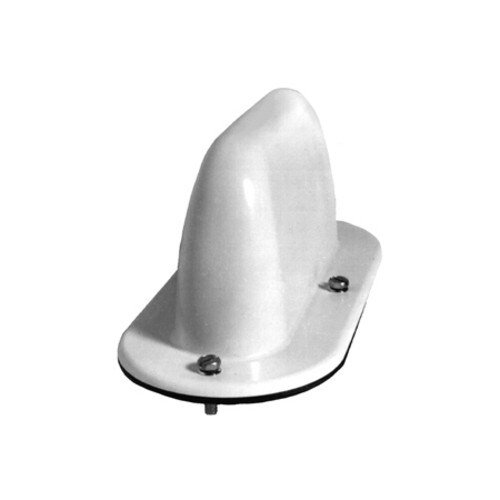

PCTEL Low Profile Vehicular Linebacker Antenna 450-470 MHz (ASP572)
- Brand: PCTEL
- P\N: ASP572
- UPC: 729198223007
Do you have questions?
Please contact our experts for assistance.
Description
PCTEL Low Profile Vehicular Linebacker Antenna 450-470 MHz (ASP572)
The PCTEL rugged low profile vehicular linebacker antenna with a frequency range of 450-470 MHz is designed for transit vehicle installations that require overhead clearance. This includes buses, fire-fighting engines, railroad equipment, airport service vehicles, and construction equipment. This multi-band antenna provides wideband coverage of specific frequencies without field tuning required. It is housed in a high-impact molded ASA radome for long-lasting performance under severe environmental conditions. The antenna includes stainless steel bolts, metal screws, rubber pad.
Key Features
- High-impact molded ASA radome assures long, reliable performance and protection against the elements
- Maximum radiation is vertical and omnidirectional when mounted on a flat surface for a high performance
- Low profile for minimal exposure to theft or vandalism
- Wideband coverage that requires no field tuning
- 450-470 MHz frequency range
Specifications
Item Height | 3.13 inch |
Gain dBi (dBi) | 2.15 dBi |
Maximum Power (W) | 100 |
Specific Frequency | 450-470 MHz |
Color | White |
Antenna Material | Plastic |
Mobile Antenna Mounting Type | Permanent |
Whip Material | Plastic |
Frequency Band | UHF |
