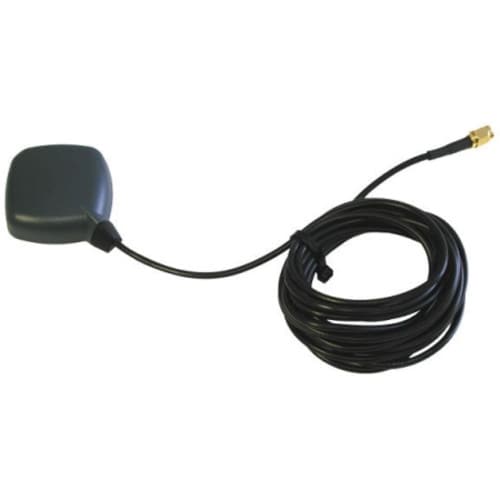

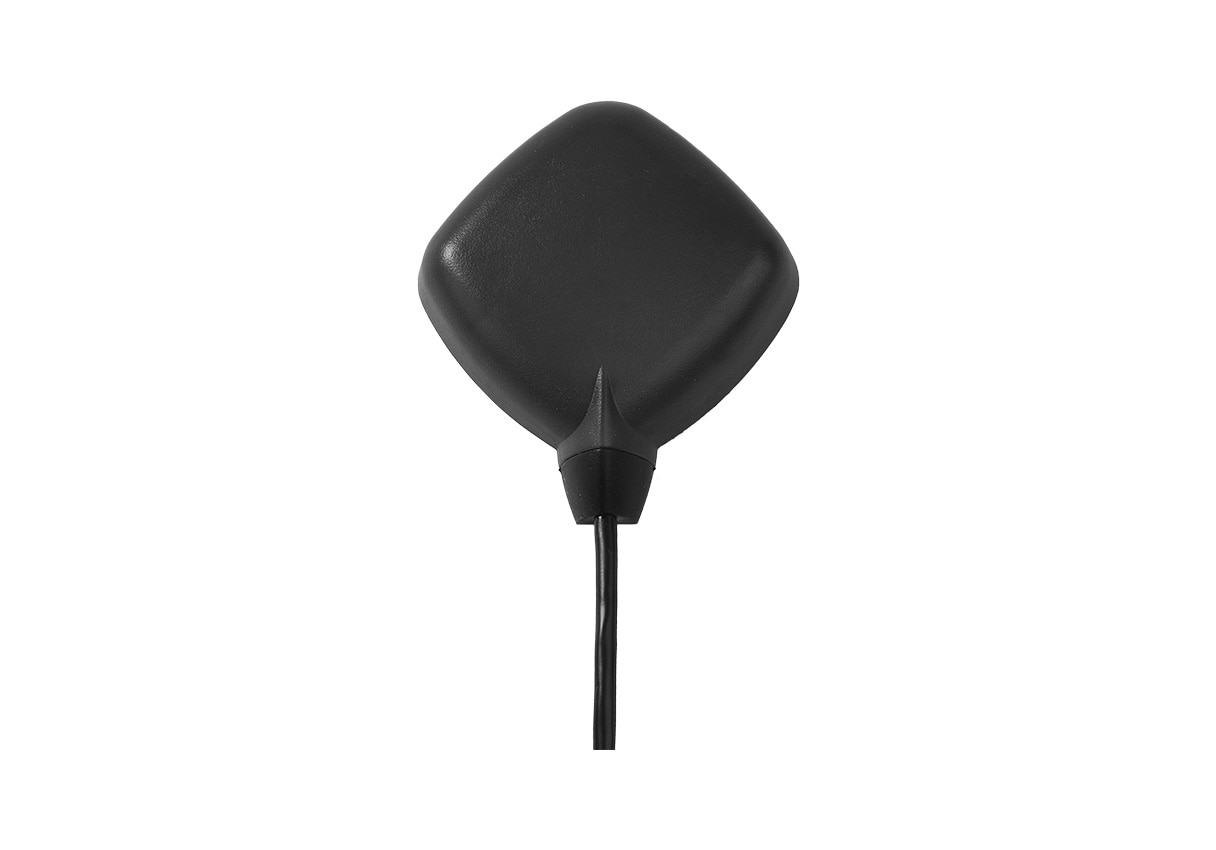

PCTEL Wi-Sys High Gain GPS Antenna 28dB 5m RG174 SMA Male (3917D-5M-SMA)
- Brand: PCTEL
- P\N: 3917D-5M-SMA
- UPC: 729198260682
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
PCTEL Wi-Sys High Gain GPS Antenna (3917D-5M-SMA)
- Enhanced safety – Voltage range: 2.7 to 5.5
- High gain, low noise – LNA 30 dB gain typical; low noise figure 1.5 dB, SAW filter
- Flexible installation – Via internal magnets or screw mount
A high performance antenna with a wide voltage range, this product is ideally suited for vehicular telematics applications. It features a low noise amplifier and SAW filter. It offers greater installation flexibility for rooftop locations using either its internal magnets or screw mount holes. This antenna can be used with the vast majority of GPS L1 systems available.
Specifications
| Item Height | 0.47 in |
| Item Width | 2.01 in |
| Item Weight | 0.26 lb |
| Item Length | 1.77 in |
| Color | Black |
| Mobile Antenna Mounting Type | Magnet |
| Antenna Material | Plastic |
| Cable Length | 5 m |
| Coaxial Cable Series | RG-174 |
| Whip Length | 2.1 in |
| Whip Material | Plastic |
| Frequency Band | GPS |
| Cable Length (m) | 5 |
