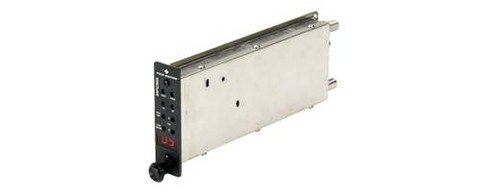

Pico Digital 45dB AGILE Mini Modulator Channel 1-135 (MPCMA)
- Brand: Pico Digital
- P\N: MPCMA
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
Pico Digital 45dB Mini Modulator Channel 1-135 (MPCMA)
Key Features
- 45dBmV minimum output for a 63dB in-band carrier to noise ratio provides superior picture quality
- 135 Channel frequency range 54~860MHz (CATV 2~13, A1~A5, A~ZZZ, 89~135, UHF 14~69)
- Agile microprocessor control enables quick digital push-button channel selection for ease of installation, configuration and improved system uptime
- SAW (surface acoustic wave) filtered for superior adjacent channel performance enables drop-in channel expansion
- BTC stereo compatible pre-emphasis disable switch provides pass-through for stereo signals
- Three-digit LED display provides quick channel identification
- Non-volatile memory ensures channel programming remains after power loss
- IRC and HRC offsets available for frequency settings in systems using offset channels
- Compatible with most manufacturers’ mini-modulator chassis
- PAL option available for international operation
Specifications
| Output Frequency Range | 54~860MHz |
| Tuning | Agile |
| RF Output Level (min) | 45dBmV |
| Carrier to Noise (in-band) | 63dB |
| Carrier to Noise (out of band) | 65dB |
| Spurious Output | >65dB |
| Video Frequency Response | ±1.2dB |
| Video Signal to Noise | 60dB |
| Audio Input Type | Monaural/MTS Baseband |
| Audio Frequency Response | 50~15,000Hz |
| Video Input Connection | 75Ω F-Female |
| Audio input Connection | 10KΩ RCA-Female Unbalanced |
| RF Output Connection | 75Ω F-Female |
| Voltage Input | +5, +12VDC |
| Dimensions | 1” (L) x 8.7” (D) x 3.4” (H) |
| Weight | 1 lb. |
