Pixel Technologies XM Sirius Radio SBA Inline Amplifier (SBA-1)

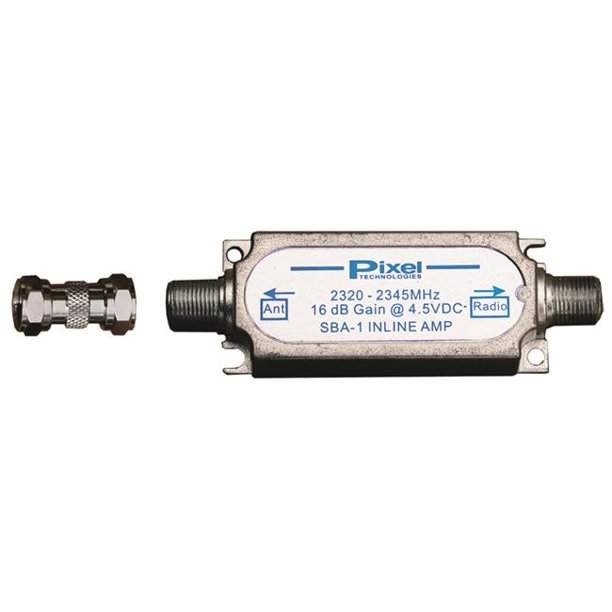

Pixel Technologies SBA-1 SiriusXM Inline Amplifier

Use the SBA-1 in a compatible XM or Sirius satellite radio antenna distribution run to compensate for cable and splitter loss. Pixel rates it for 16 dB gain across 2320–2345 MHz at 4.5 VDC. It receives power from the DC bias supplied at the radio's antenna input.

• Compatible with XM and Sirius satellite radio distribution
• Gain: 16 dB at 4.5 VDC across 2320–2345 MHz
• Operating voltage: 2–12 VDC
• Maximum noise figure: 5 dB

Check the power and connection requirements of the complete antenna distribution system before installation.
