PolyPhaser Lightning Arrestor for CATV/MATV Installations (IS-75F-C1)

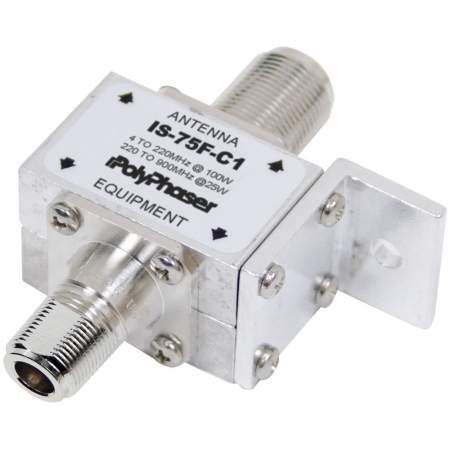

PolyPhaser IS-75F-C1 CATV/MATV Coax Surge Protector

Best For

75-ohm CATV/MATV coax systems requiring in-line surge protection across the stated 4-900 MHz range.

Why Choose the IS-75F-C1?

The existing product information describes an in-line protector with F-female connectors, RF blocking capacitor and gas tube.

Key Benefits

• 4-900 MHz stated frequency range
• F-female connectors on protected and surge sides
• Flange mount
• 600 VDC turn-on voltage stated in existing content
• 0.2 dB nominal insertion loss stated in technical specifications
• CE compliance stated in existing content

Who Should Buy the IS-75F-C1?

CATV/MATV installers who have confirmed frequency range, impedance, connector interface, insertion loss, DC/power-passing requirements, grounding/bonding and current PolyPhaser specifications.

Source-Data Conflict

The existing copy also says 0.1 dB max low loss while its technical list says 0.2 dB nominal insertion loss. Confirm the current datasheet when loss is critical.

Purchase Note

Non-Cancellable and Non-Returnable. Protected Contact Us content remains preserved separately.
