Rohn - 45G Top Section 2-in OD x 12-in Pipe (45AG)

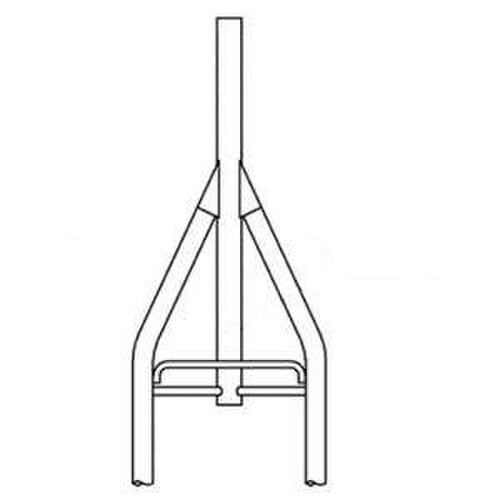

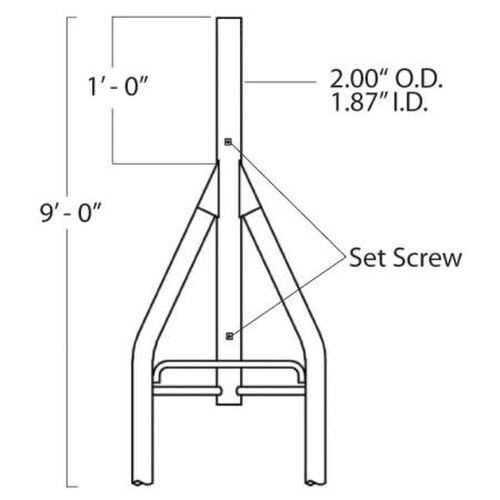

The ROHN R-45AG 45G top section features the same 18-in face and 7/16-in solid serpentine Zig-Zag bracing as the standard 45G tower sections and it also comes with a tapered top and integrated 2-in OD x 12-in mounting pipe and set screw. Both ends of the mounting pipe are open but can accept ROHN thrust bearings R-TB-50 and R-TB75.

You can connect the 9-ft long R-45AG to any standard ROHN 45G tower section using the included bolts and double-bolted leg connections. The entire section has been completely hot-dip galvanized for years of worry-free corrosion protection and it can be used in guyed, self-supporting and bracketed tower configurations.
