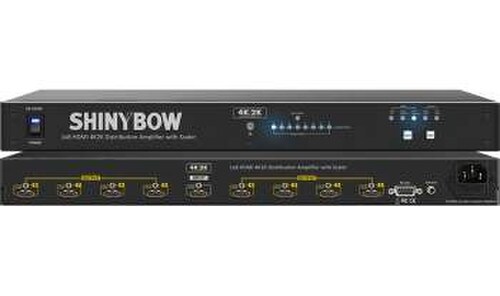

ShinyBow 4K 1x8 HDMI Distribution Amplifier With Scaler (SB-5658K)

The SB-5658K is a professional 1x8 4K2K HDMI Distribution Amplifier. It supports one HDMI input and eight HDMI outputs. The SB-5658K is based on the HDMI standard 4K2K and supports full resolution HDMI video with embedded EDID, with a signal bandwidth of 340Mhz, there is no signal degradation. High Definition Digital signals can be distributed to one input to eight outputs. The distribution amplifier is certified as being fully CEC and HDCP 1.4 compliant, full HD 4K2K HDMI V1.4a 3D formats, data rates up to 6.75 Gbps.

Key Features

1 HDMI 4K2K source device distributed to 8 HDMI output 4K2K destinations

HDMI digital Video 4K2K TMDS w/embedded HDCP, DVI format and CEC / HDCP 1.4 compliant

Worldwide control EDID modes for HDMI full 4K2K (24/25/30 Hz) HD Video resolutions

Link speeds of up to 6.75 Gbps (link clock rate of 340MbHz), Support HDMI 4K2K, 1.4a 3D formats

HDTV / DTV, HDMI resolutions 480i/480p, 576i/576p, 720p, 1080i/p & 4K2K (24/30Hz)

Digital Video TMDS formats Resolution up to 4K2K with Deep color 36-bit

Audio Input : Support HDMI standard multi-channel digital audio

Audio Output : Support HDMI standard multi-channel digital audio

HDMI Output with Booster function, Cable Distance 4K2K 65 feet (20M) and 1080p-60Hz 98 feet (30M)

Various User Interface controls: Front Panel push button, IR Remote Cotrol

Support Power input AC100V~240V, 50/60Hz
