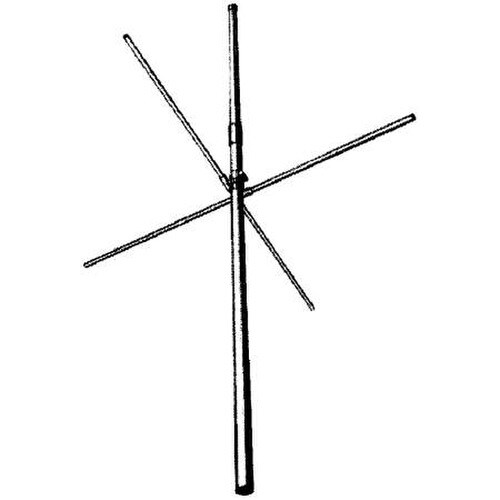

Sinclair 138-174MHz 2.5dB Ground Plane Omnidirectional Antenna (SG217-SF2SNM)
- Brand: Sinclair Technologies
- P\N: SG217-SF2SNM
- UPC: 729198135782
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
Sinclair 138-174MHz 2.5dB Ground Plane Omnidirectional Antenna (SG217-SF2SNM)
SINCLAIR's 138 – 174 MHz low cost omnidirectional antenna. Field tunable, 2.5dB gain, 250 W. Includes harness with N Male termination and mounting hardware.
- Frequency adjustable within specified range
- Omni-directional radiation pattern and 2.5 dBd gain
- Lightweight easy to assemble and install
Specifications
| Electrical | |
|---|---|
| average input power max (W) | 250 |
| connector | N-Male |
| frequency range (MHz) | 138 to 174 |
| gain nominal (dBd) | 2.5 |
| lightning protection | DC ground |
| pattern | Omni-directional |
| polarization | vertical |
| Mechanical | |
|---|---|
| actual shipping weight (lbs) | 15 |
| base pipe diameter | 1.5 |
| base pipe material | aluminum |
| length height (in) | 128 |
| mounting hardware included | Clamp135 |
| radiating element material | aluminum |
| shipping dimensions (in) | 73x5x6 |
| width (in) | 58 |
| Environmental | |
|---|---|
| bending moment 100 mph no ice | 224 |
| lateral thrust 100 mph no ice | 65 |
| rated wind velocity no ice | 125 |
| temperature range (°C) | -40 to 60 |
