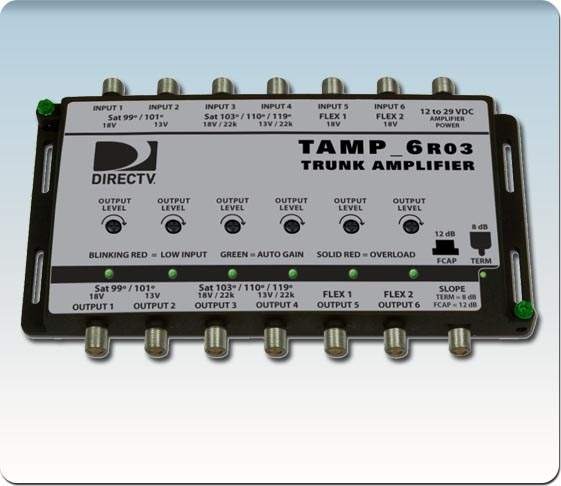

Sonora DIRECTV Coax Amplifier with Adjustable Output (TAMP6R03)

Sonora DIRECTV Coax Amplifier with Adjustable Output (TAMP6R03)

Best For

Professional DBS/DIRECTV distribution systems that need automatic gain control and adjustable output over a broad satellite IF range.

Why Choose the TAMP6R03?

The amplifier provides automatic gain-controlled output with field-selectable slope, signal-level indication, and DC/control-tone pass-through for compatible satellite systems.

Key Benefits

• Ka/Ku bandwidth identified as 250-2400 MHz in existing feature information
• Automatic gain control with adjustable output
• Field-selectable 12 dB or 8 dB slope
• DC and 22 kHz/DiSEqC pass-through described in existing information
• Built-in red/green signal-level indication
• Two 10 AWG green ground screws

Who Should Buy the TAMP6R03?

Satellite distribution professionals who have confirmed frequency plan, signal levels, required output, slope, DC/control pass-through, grounding, and power requirements.

Specification Note

The existing Detailed Description contains conflicting figures: it lists both 250-2400 MHz and 250-2150 MHz, and gives adjustable output as both -15 to -24 dBm and -16 to -25 dBm at 2150 MHz. Verify the exact specification before system design.

Important Requirement

Power adapter is sold separately.
