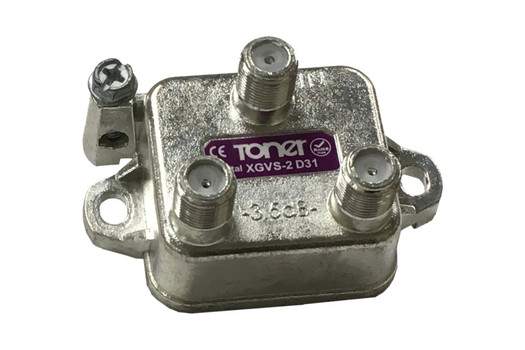

Toner Cable 1.2 GHz 2 Way Vertical Digital Splitter (XGVS-2D31)
- Brand: Toner Cable
- P\N: XGVS-2D31
Do you have questions?
Please contact our experts for assistance.
Description
Description
Toner Cable 1.2 GHz 2 Way Vertical Digital Splitter (XGVS-2D31)
Key Features and Benefits
- Designed for digital systems deploying DOCSIS 3.1
- Utilizes the 5-85 MHz spectrum for upstream, and the 105 to 1220 MHz spectrum for downstream
- Latest ferrite core and winding technology for increased bandwidth
- Premium PC boards and components for enhanced performance
- Diecast zinc alloy housing with nickel plating for superior corrosion resistance
- Waterproof F ports with patented seal, machined with 3/8-32 UNEF threads
- Patented seizure mechanism for the center conductor, ensuring correct electrical contact
Product Overview
Introducing the Toner Cable 1.2 GHz 2 Way Vertical Digital Splitter, a cutting-edge solution for your digital systems. This splitter is designed to work seamlessly with systems deploying DOCSIS 3.1, providing a reliable and efficient connection.
Technical Specifications
- Brand: Toner Cable
- Product Weight: 3 lbs
- Upstream Spectrum: 5-85 MHz
- Downstream Spectrum: 105 to 1220 MHz
- Housing Material: Diecast zinc alloy with nickel plating
- F Port Threads: 3/8-32 UNEF
With the Toner Cable Digital Splitter, you can take advantage of the latest in ferrite core and winding technology. This technology, combined with premium PC boards and components, allows for an increase in bandwidth without any sacrifice in performance.
The splitter's housing is made from a diecast zinc alloy with a nickel plating, offering superior corrosion resistance. The F ports are machined with 3/8-32 UNEF threads to meet SCTE and ANSI specifications, and incorporate a patented seal that is waterproof to 15 PSI.
Additionally, the splitter features a patented seizure mechanism for the center conductor. This mechanism contacts the center conductor on 4 sides and provides more than 200g of retention force, ensuring correct electrical contact. The F ports are on 1" spacing which meets SCTE & ANSI specifications.
Experience the difference in quality and performance with the Toner Cable Digital Splitter. Order yours today and elevate your digital systems to new heights.
