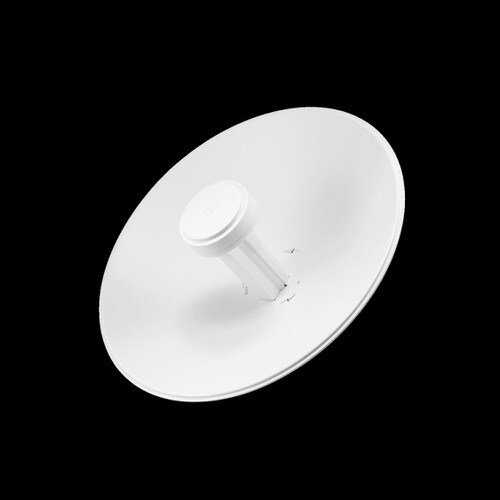

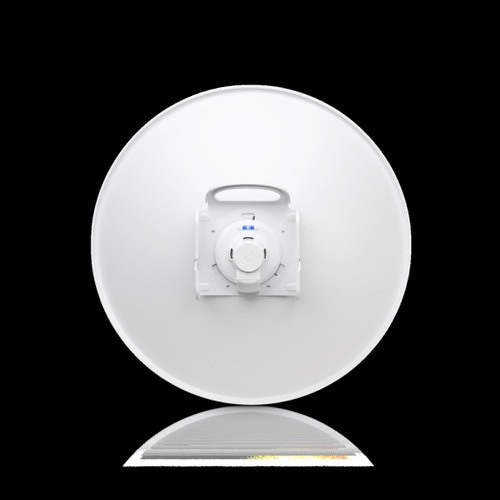

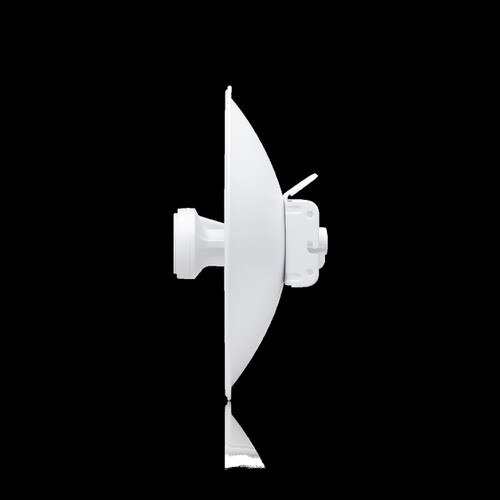

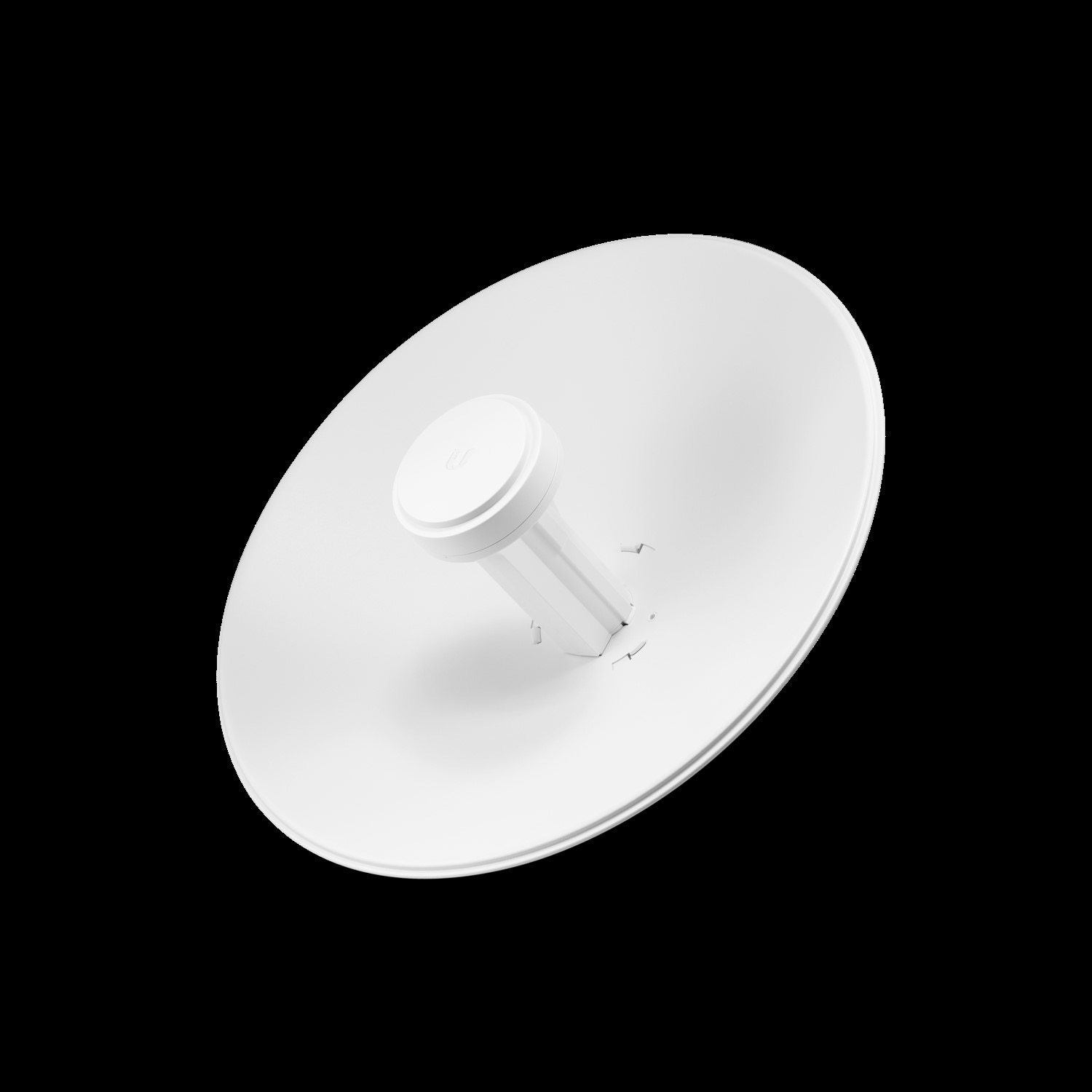

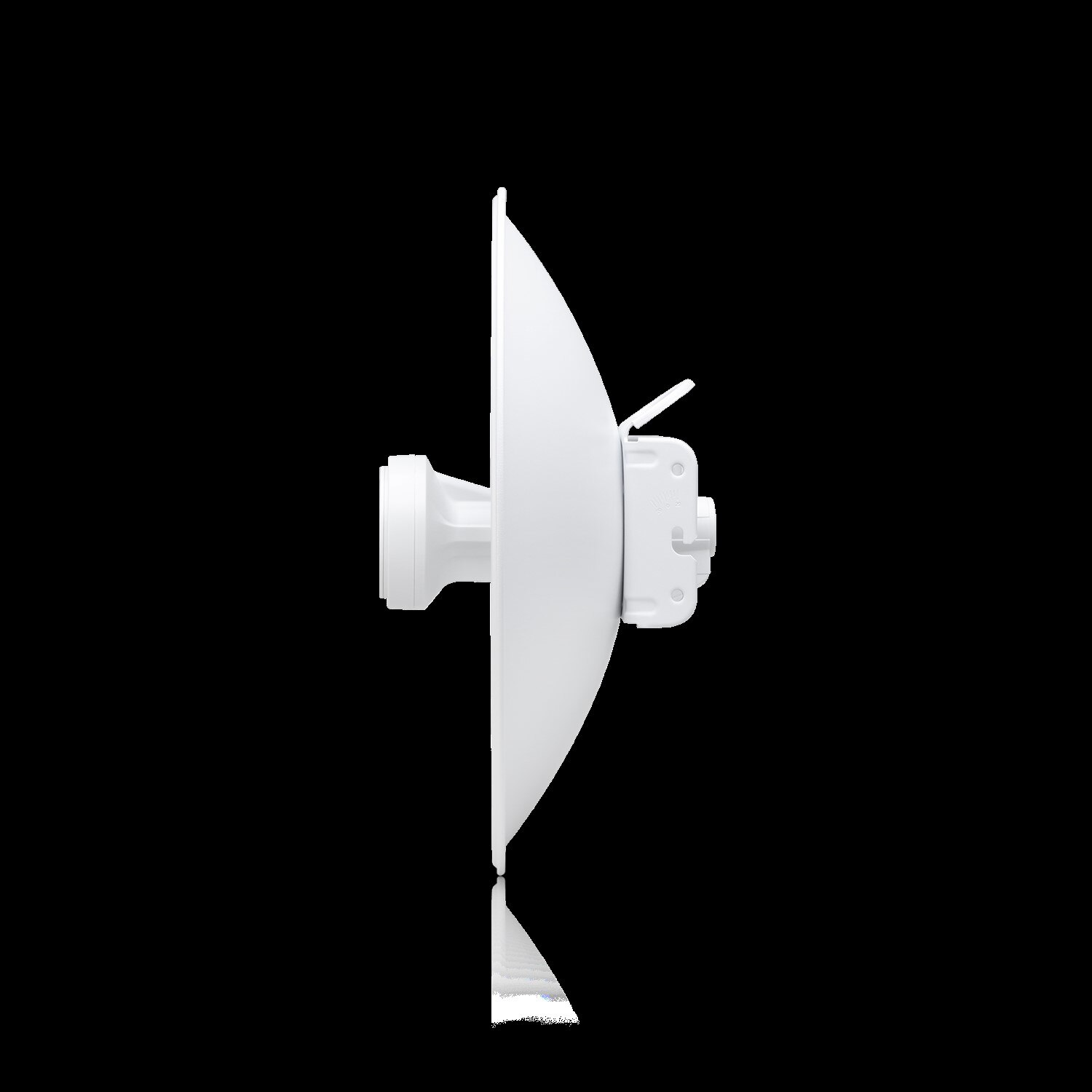

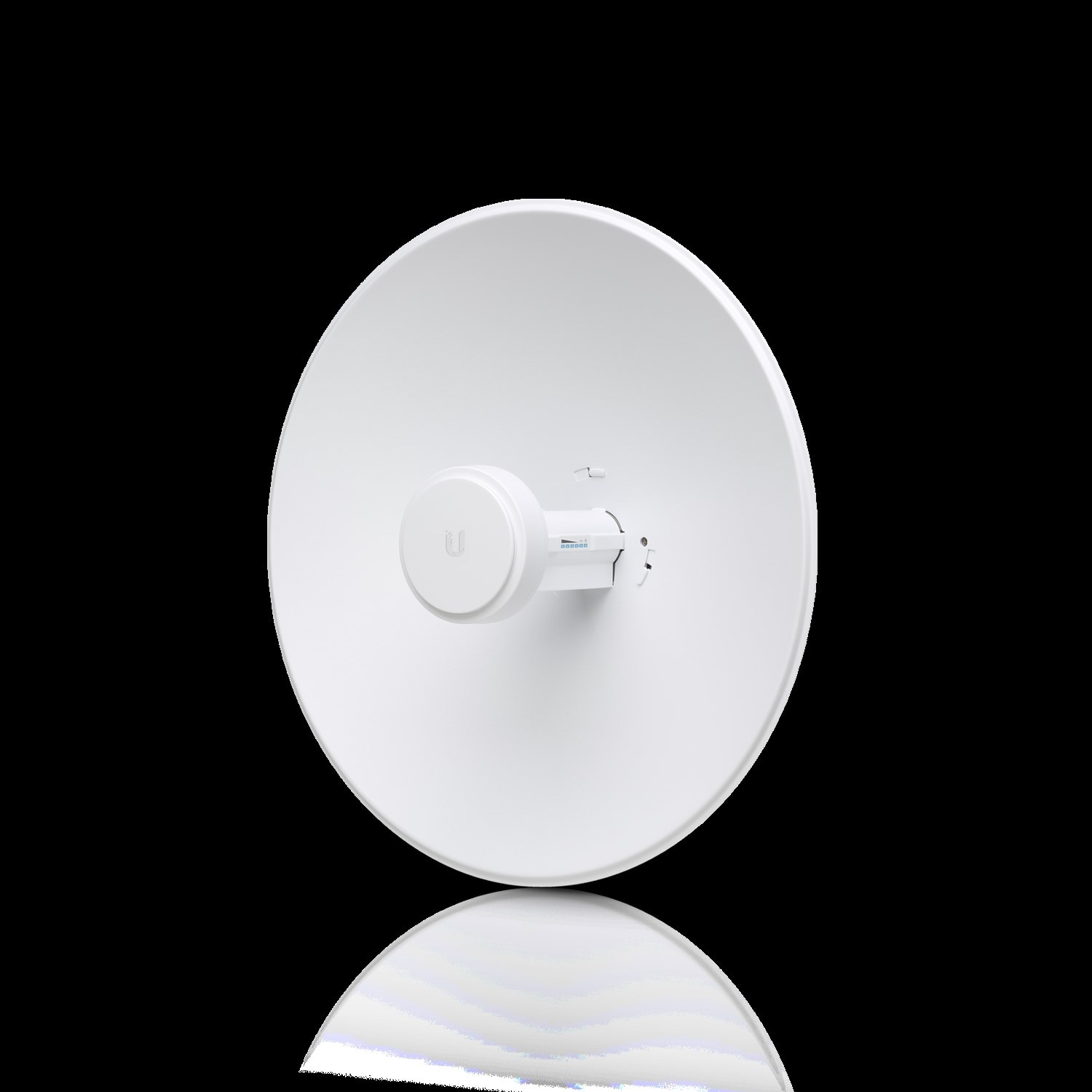

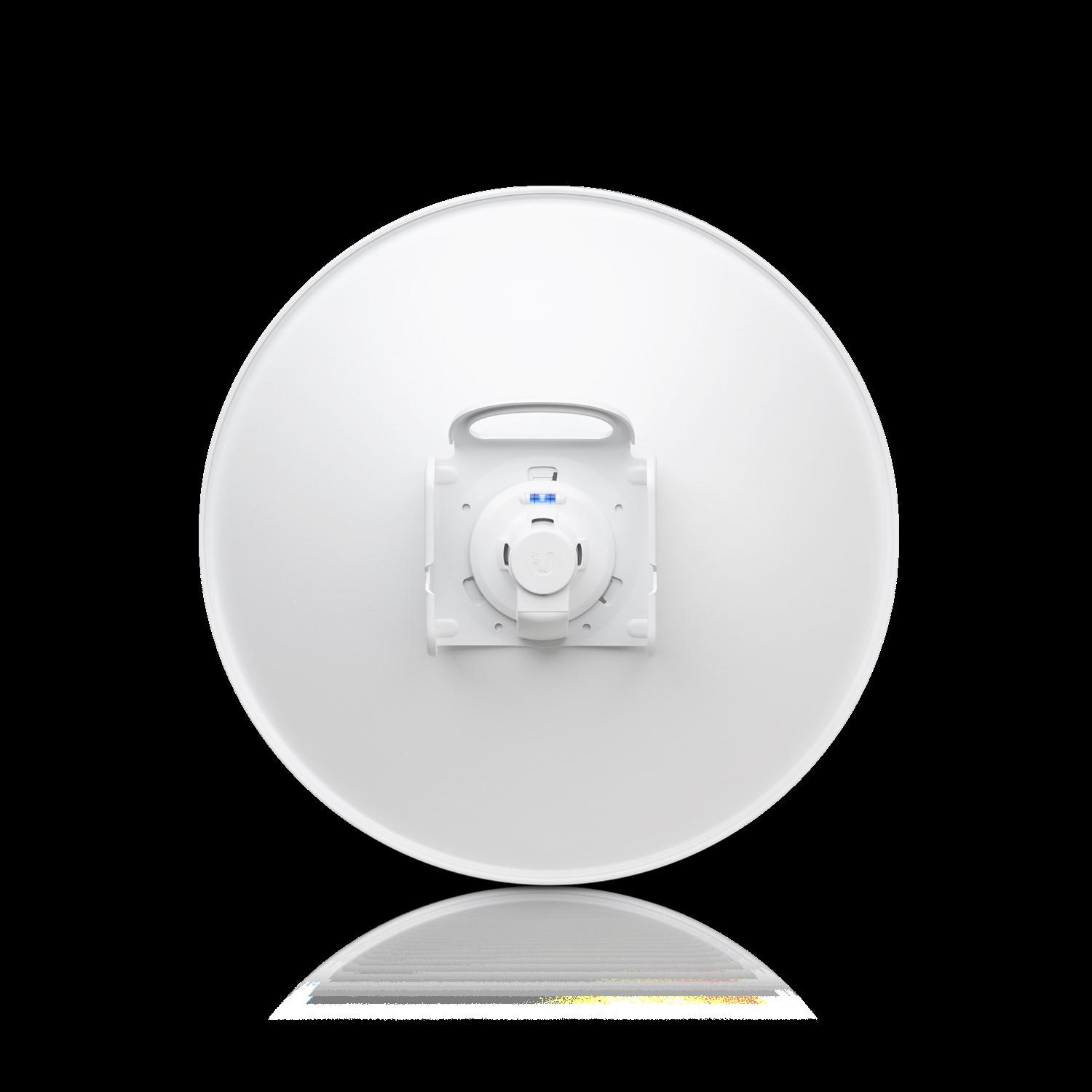

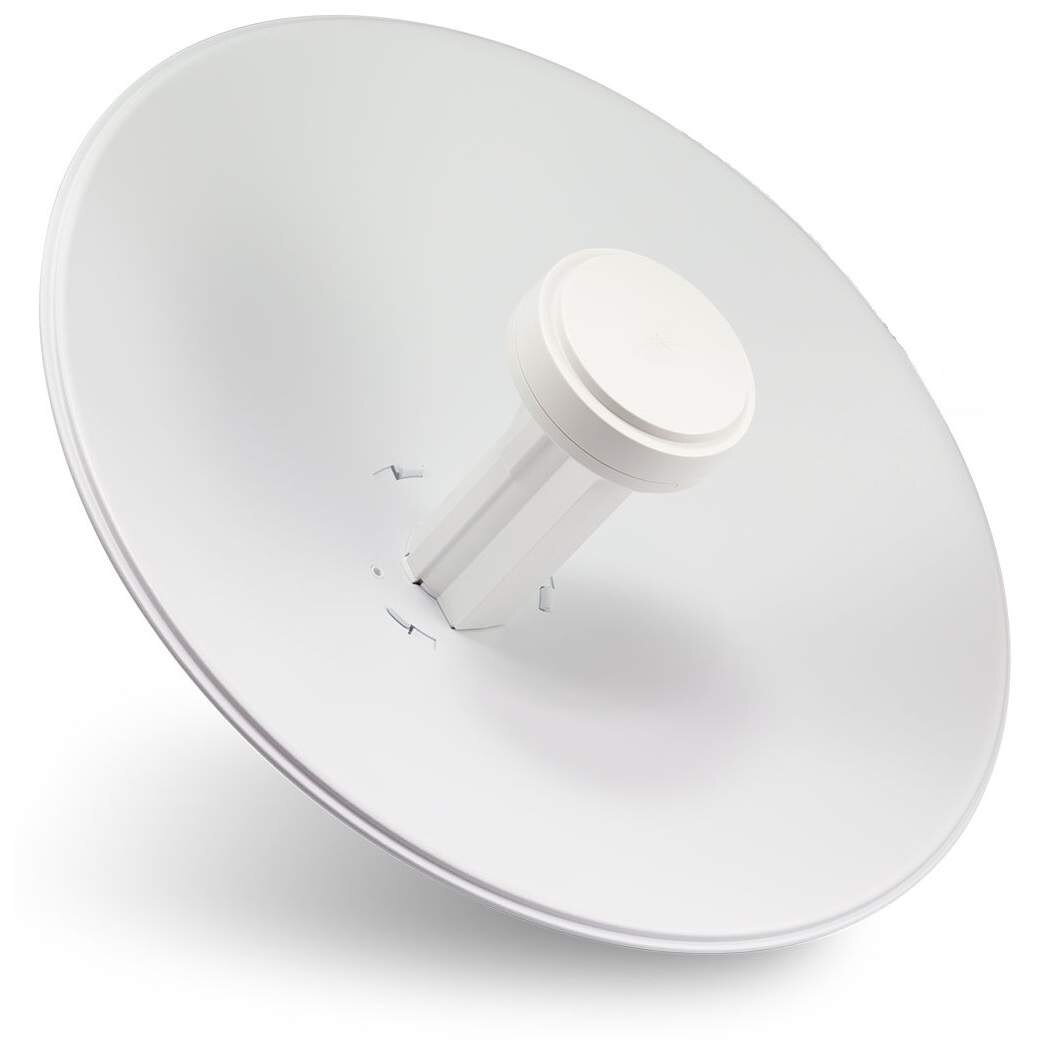

Ubiquiti UISP airMAX PowerBeam M2 400 mm Bridge (PBE-M2-400)
- Brand: Ubiquiti Networks
- P\N: PBE-M2-400
- UPC: 729198353520
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
Ubiquiti UISP airMAX PowerBeam M2 400 mm Bridge (PBE-M2-400)
Experience the power of seamless connectivity with the Ubiquiti PowerBeam M2 airMAX Bridge. This innovative device is designed to provide a uniform beam width, ensuring efficient coverage and high-speed internet access. Its compact, all-in-one design makes it an ideal choice for those seeking a reliable, high-performance solution for their networking needs.
Key Features
- Uniform beam width for efficient footprint
- Compact, all-in-one design for easy installation
- Faster processor for high-speed internet access
- Innovative mechanical design for versatile mounting options
Installation and Use
The PowerBeam M2 airMAX Bridge can be easily mounted in a variety of ways, thanks to its innovative mechanical design. This allows for flexible installation, ensuring optimal performance in different settings.
Experience the difference of high-speed, reliable connectivity. The Ubiquiti PowerBeam M2 airMAX Bridge is not just a device, but a solution to your networking needs. Its efficient footprint, high gain, and faster processor ensure that you stay connected, always.
Don't compromise on your connectivity needs. Choose Ubiquiti PowerBeam M2 airMAX Bridge for a seamless, high-speed internet experience. Order now and elevate your connectivity experience!
What's in the Box:
- Reflector
- Antenna Feed
- Rear Housing
- Mounting Bracket
- Pole Clamp
- U-Bolt
- Flange Nuts (Qty. 2)
- PoE (24V, 0.5A)
- Power Cord
Features
2.4 GHz, 20+ km link range
150+ Mbps throughput
Improved mountingSpecifications
| Mechanical | |
|---|---|
| Dimensions | 420 x 420 x 289 mm (16.5 x 16.5 x 11.4") |
| Weight | 1.8 kg (4 lb) |
| Enclosure material | UV-stabilized plastic |
| Mounting | Pole mount kit (Included) |
| Wind loading | 278.4 N @ 120 km/h (63 lbf @ 75 mph) |
| Wind survivability | 120 km/h (75 mph) |
| Hardware | |
|---|---|
| Networking interface | (1) 10/100 MbE port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.5A PoE adapter (Included) |
| Supported voltage range | 20–27V DC |
| Max. power consumption | 6W |
| ESD/EMP protection | Air/contact: ± 24 kV |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Signal strength LEDs | Software-adjustable to correspond to custom RSSI levels |
| RoHS compliance | Yes |
| Salt fog test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 |
| Vibration test | IEC 68-2-6 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5 |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| System | |
|---|---|
| Gain | 18 dBi |
| Operating frequency | 2405-2475 MHz |
| Max. VSWR | 1.5:1 |
| Channel sizes | 5/8/10/20/30/40 MHz |
| Polarization | Dual linear |
