weBoost Indoor Wall Mount Panel Cellular Antenna F-Female (311155)
- Brand: Wilson Electronics
- P\N: 311155
- UPC: 888063270079
Live Chat
Contact Us
Description

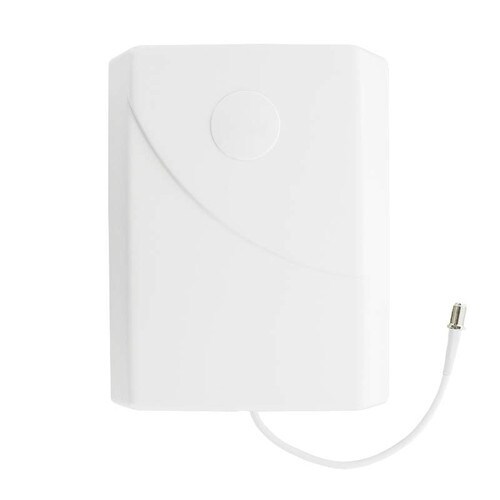

weBoost 311155 Indoor Wall-Mount Panel Antenna
Direct a compatible cell signal booster's indoor signal toward the area where coverage is needed. This white directional panel antenna is designed for wall mounting and uses a 75-ohm connection.
Key specifications
- 75-ohm directional indoor panel antenna

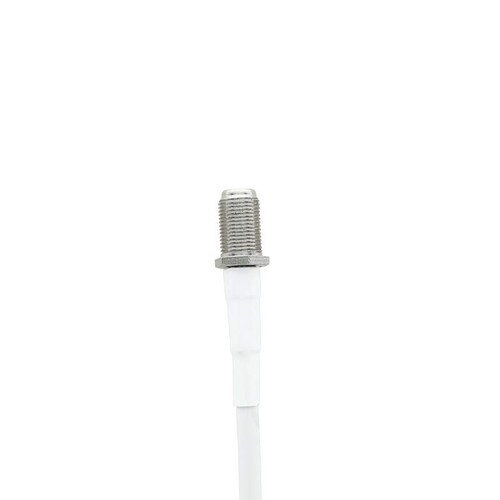

- F-female connector on a nine-inch RG6 pigtail
- Approximate dimensions: 8 × 7 × 2 inches
- Commonly used with the Connect 4G and Connect RV 65 systems
Check your booster's antenna impedance and installation instructions before connecting. This F-female version is different from the 50-ohm N-female model 311135.
Call us for our best price! 877-312-4547
Specifications
• Directional;• 700MHz-800MHz/824MHz-894MHz/880MHz-960MHz/1,710MHz-1,880MHz/1,850MHz-1,990MHz/2,110MHz-2,170MHz;• 75ohm ;• Max power: 15W;• Vertical polarization;• Built-in ground plane;• Dim: 8.27H x 7.09W x 1.73D;• Includes 9 in. RG6 pigtail with F-female connector & mounting hardware;
