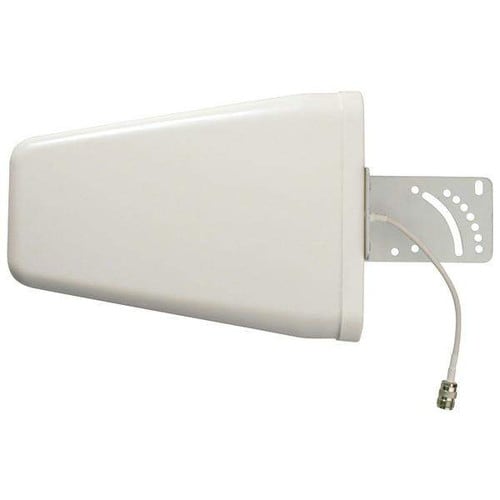

Wilson Wide Band Directional Antenna N-Female (314411)

Wilson Wide Band Directional Antenna N-Female (314411)

Experience superior connectivity with the Wilson Wide Band Directional Antenna N-Female. This high-performance antenna is designed to enhance your cellular signal, ensuring seamless communication and data transfer. It's a perfect solution for professionals who rely on strong and stable connections for their work.

Key Features:

• Targets cell towers to optimize signal
• Compatible with all US carriers
• Supports multiple devices
• High efficiency, compact antenna design
• Anti-UV plastic housing for all-weather use

High Gain, Wide Frequencies
The weBoost 50-Ohm Wideband Directional Antenna offers versatility, reliability, and high performance when used with weBoost residential cell signal boosters. With its tilt-swivel mounting bracket, it easily mounts to exterior walls or rooftop vent pipes. The 50-Ohm Wideband Directional Antenna is made to precision target far away towers—delivering reliable coverage to homes in weak cell signal areas.

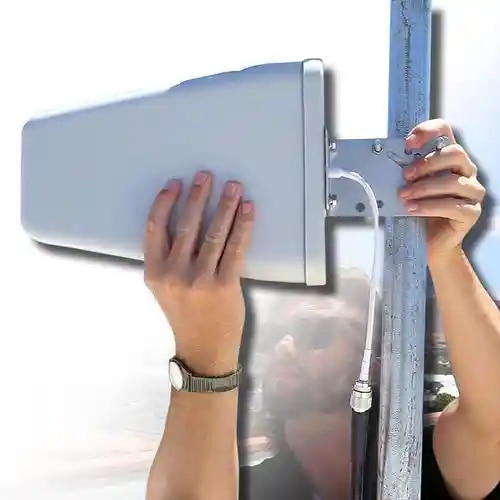

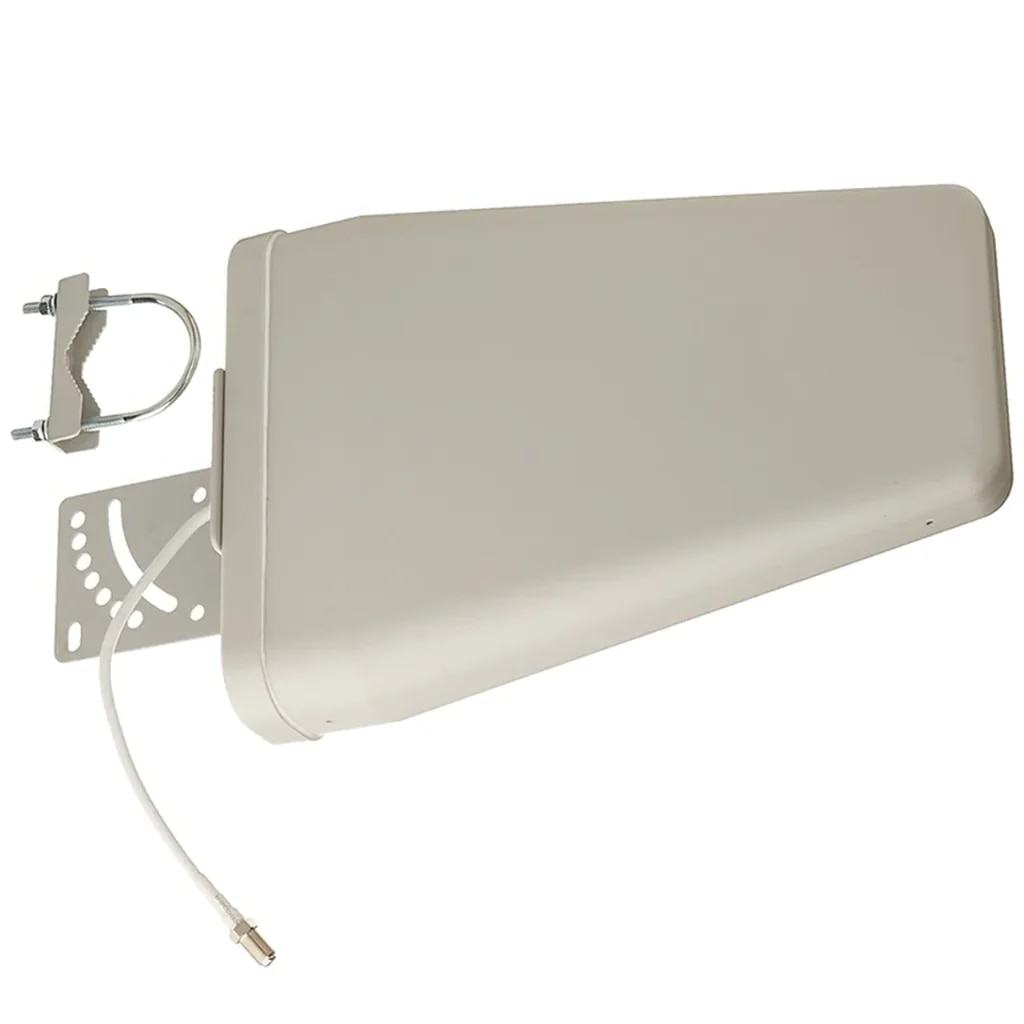

The antenna’s protective anti-UV plastic housing resists sunlight, water, and debris for added protection and reliability in all-weather conditions. Aluminum U-bolt mount and included hardware allow for safe and secure installation on an exterior wall, antenna pole, or rooftop vent pole. Made for use with coax cable featuring N-Male connectors. Antenna includes a 2-year manufacturer’s warranty from weBoost.

*75-ohm amplifiers must have the appropriate connector to allow the outside cable to be connected to the amplifier or to the antenna.

Experience Superior Connectivity

Don't let weak signals disrupt your work. With the Wilson Wide Band Directional Antenna N-Female, you can enjoy strong and stable connections, ensuring seamless communication and data transfer. Experience the difference today. Order now!

Frequency

700-800 MHz 7.3 dB

824-894 MHz 8.1 dB

880-960 MHz 7.4 dB

1710-1880 MHz 9.2 dB

1850-1990 MHz 10.6 dB

2110-2170 MHz 10.4

Impedance
50 Ohm

Power
100 watts

Polarization
Vertical

Connectors
N-Female

Brackets
Max OD 2 inches

Mount Type
Mounts on pipe 1.25 to 2 inches in diameter

Dimensions
Height: 11.42 inches / 19 cm

Weight
3.31 lbs / 1.5 kg (With Mount)

Wind Surface Area
465 cm2
