Winegard 15dB Gain Distribution Amplifier for TV Antennas and CATV (HDA-100)

  • Brand: Winegard
  • P\N: HDA-100
  • UPC: 615798396640
6 Reviews

Availability: In Stock

Ships Within: Same Business Day

Sale Price: $54.99 Listing Price: $63.99

Do you have questions?

Please contact our experts for assistance.

Description

Winegard 15 dB Distribution Amplifier for TV Antennas and CATV (HDA-100)



Best For

TV antenna and compatible cable-distribution systems that need to compensate for signal loss caused by long coaxial runs, connectors, or downstream splitting.

Why Choose the Winegard HDA-100?

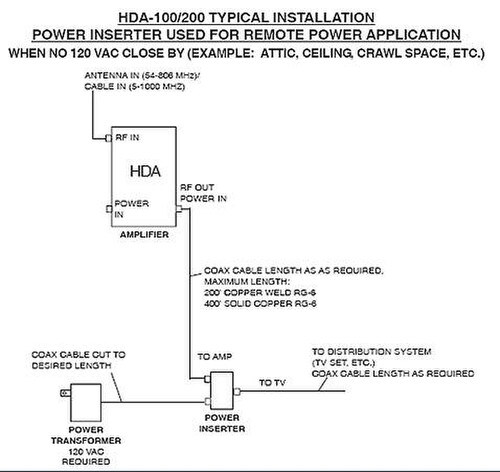

The HDA-100 is a single-input, single-output distribution amplifier providing 15 dB of forward gain. It can be powered directly at the amplifier or remotely through the included power inserter over the coaxial line.

Key Benefits

  • 15 dB forward gain
  • Approximately 3 dB noise figure
  • Single RF input and amplified RF output
  • 5-42 MHz two-way bypass at approximately 2 dB
  • Bi-directional capability for compatible cable TV/cable internet applications
  • Direct or remote coax power options
  • Weather-resistant enclosure; indoor use is recommended

Who Should Buy the HDA-100?

OTA and RF distribution installers who have confirmed that their system has adequate input signal quality and needs additional level to overcome distribution losses. Amplification cannot create a usable signal that is not present at the input.

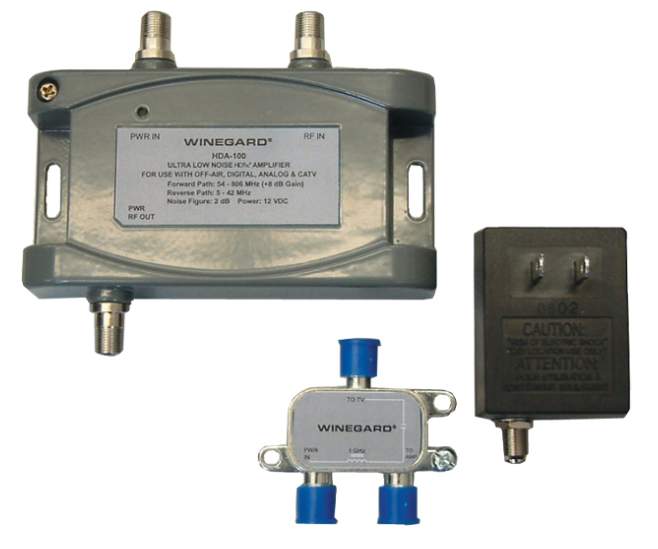

What's Included

  • HDA-100 distribution amplifier
  • Power inserter
  • Power transformer
  • Mounting hardware
  • Printed documentation

Features

  • Amplify and distribute analog/digital broadcast signals from off-air and cable signals
  • Designed to meet the market demand for a heavy duty, quality built, cost effective amplifier
  • Add to a Winegard HDTV antenna to overcome signal degradation from long coax runs

Specifications

  • Maximum Gain:15dB amplifies signals from 54-1000 MHz
  • Single RF Output:Features 5-42 MHz two-way bi-pass at 2dB
  • Noise Figure:3dB (typical)
  • Power:12 VDC
  • Weight: 1.30 lbs.
  • Height: 2.25 Inches
  • Width: 8.25 Inches
  • Depth: 4.75 Inches

Downloads

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Reviews

6 reviews

  • 4
  • 0 reviews
  • 2
  • 0 reviews
  • 1
  • 0 reviews
Write a Review

HDA-100 Review

by

This product has worked very well for all our viewable channels except for our favorite FOX 13 Channel 22-1 and 22-2 out of the Seattle area. Very disappointed that this channel is being notched out with this preamplifier.

A must have for over the air systems

by

Purchased A UHF/VHF antenna from solid signal a few months ago. I was satisfied however we were looking to get one more channel that never came in very well. This amplifier solved our problem.I place the amp within 1 foot of the antenna which was up a pine tree and use the supplied splitter to hook up the power inside the house. Very easy installation, very good product performance. 5 stars.

Who Needs Cable?

by

Almost too simple a real plug and play solution -- worked like a charm. All my intermittent channels are now coming in strong and clear; no more signal drop or pixelation. I re-scanned all channels and picked up 46 solid signals in the greater Chicago market.And the power inserter option (included) made the installation very easy.Highly recommended.

Stop the pixels!!

by

With a new roof on the way I needed to move the antenna into the attic and my signal quality suffered immediately.Even the major channels were breaking up into a pixelated mess!Fortunately I already had a power source in the attic so running a spur line over to the amplifier was no big deal.Now all of the major even secondary channels are strong and clear.Im very happy with this unit

It does the job!!

by

Combined with the new Antenna it does what its suppose to do.The TV signals are just perfect.

Winegard HDA100

by

Thanks so much to Solid Signal about this suggestion. I cant believe how much stronger my signal is now with this amplifier. In Galveston Texas I had nothing but problems with one of the channels that is my favorite and now no problems and strong.
