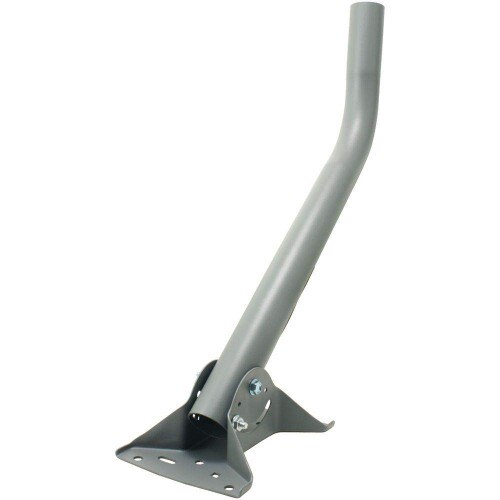

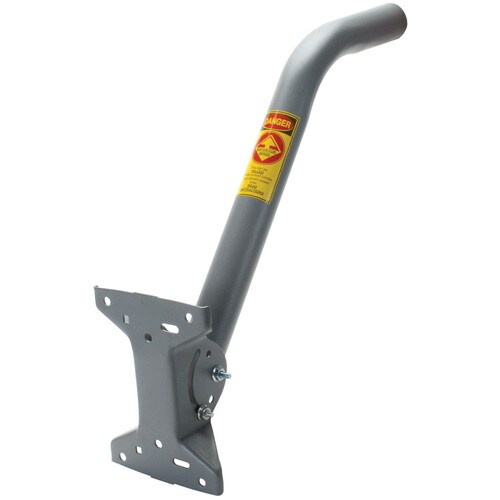

Winegard 22" Universal Antenna Mount with U-Bolt Kit (DS-2000)

Winegard 22-Inch Universal Antenna Mount with U-Bolt Kit (DS-2000)

Best For

Outdoor TV antenna installations that need a versatile 22-inch J-style mast mount on a wall, tower, or compatible existing pole.

Why Choose the Winegard DS-2000?

The DS-2000 provides a 22-inch, 1.66-inch-O.D. mast and includes a U-bolt kit for adapting the mount to compatible pole sizes. Its E-coated pipe helps protect the steel from outdoor exposure.

Key Benefits

• 22-inch universal antenna mount
• 1.66-inch outside-diameter mast
• E-coated pipe for weather protection

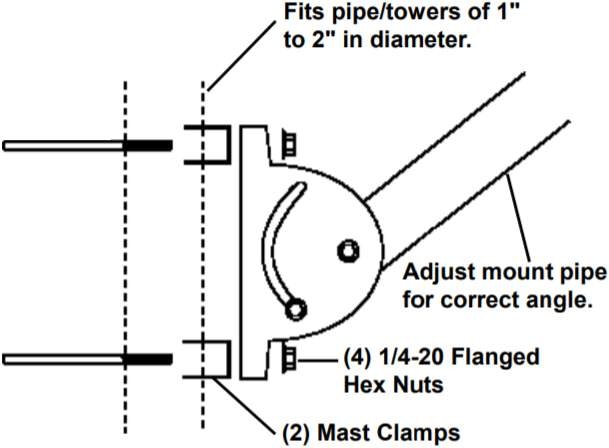

• Includes 2-inch U-bolts for compatible pole mounting
• Can provide an additional mounting point for a compact antenna near an existing installation

Who Should Buy the DS-2000?

TV antenna installers who need a compact universal mount and whose antenna and mounting surface fall within the mount's size and loading requirements.

Important Installation Notes

Not designed for antennas more than five feet in length. Lag bolts for wall mounting are not included. Confirm antenna load, mounting surface, wind exposure, grounding, and local installation requirements before use.

What's Included

• Pipe/foot bracket
• U-bolt mounting kit
• Printed documentation

Learn more:Visit the Solid Signal blog for Winegard articles.

Technical Specifications

• Complimentary: Telephone and e-mail support
• Online: Technical manual and instructions
• Support: Larger Dealer Support Network.
• Repair Parts - Also available at many dealers and/or service centers nationwide

Package Dimensions and Weights

• Weight: 4.10 lbs.
• Height: 5.88 Inches
• Width: 25.75 Inches
• Depth: 6.13 Inches
