Winegard 38" Universal Antenna Mount (DS-3000)

Winegard DS-3000 Universal 38-Inch Antenna J-Mount

Best For

Outdoor TV, cellular, Wi-Fi, radio, and compatible satellite antenna installations that need a versatile mast-and-mount solution for eaves, flat roofs, or angled roofs.

Why Choose the Winegard DS-3000?

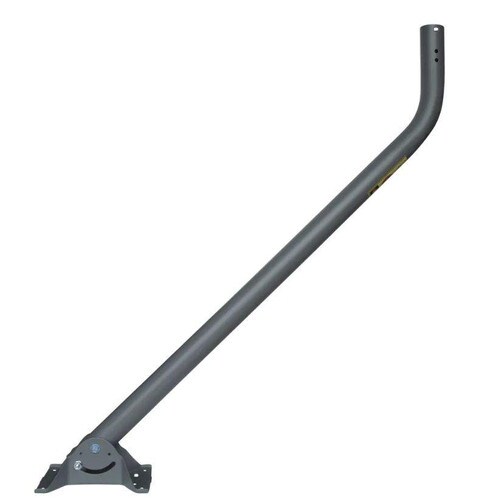

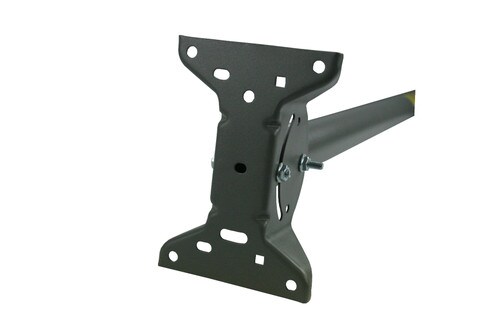

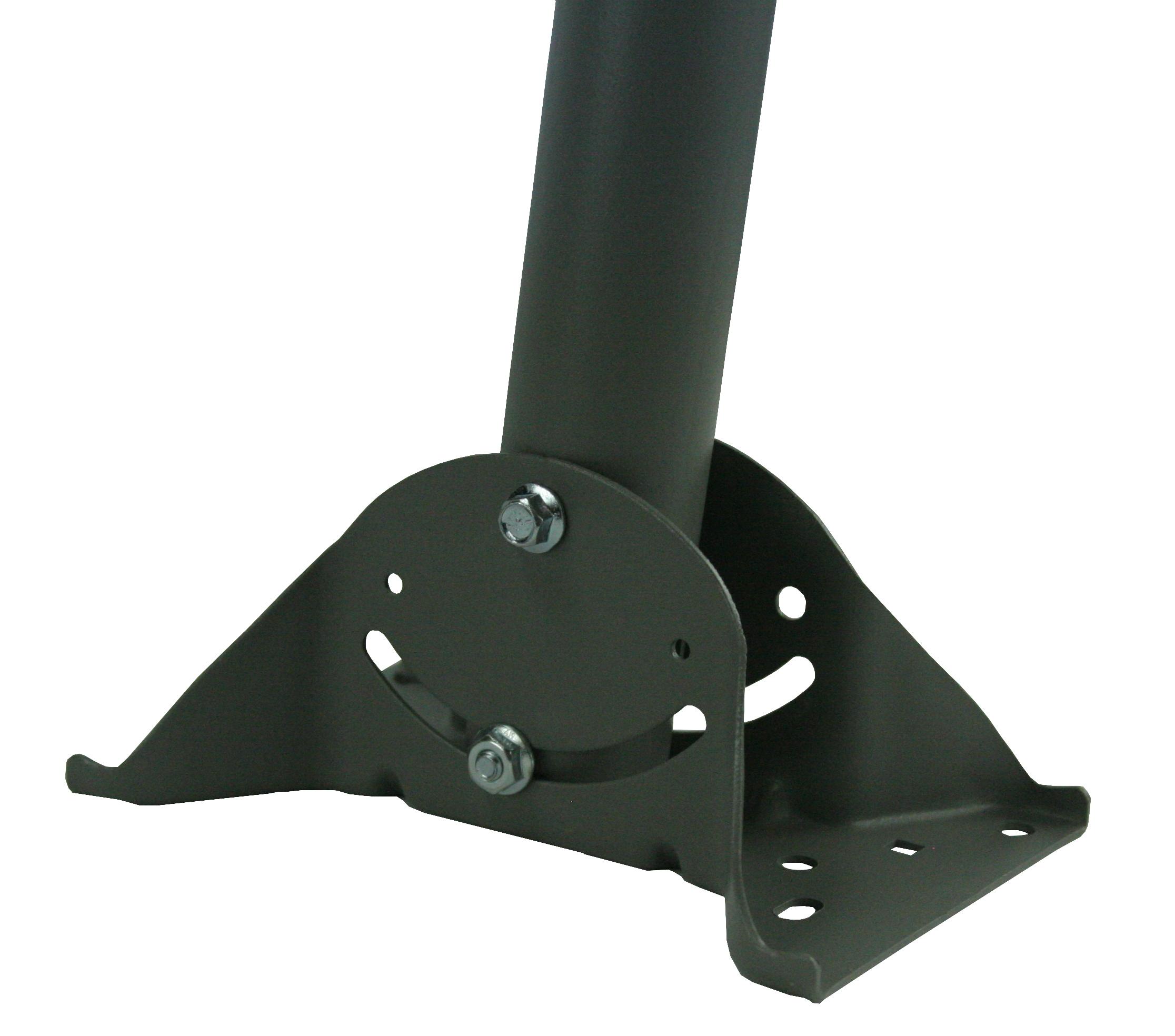

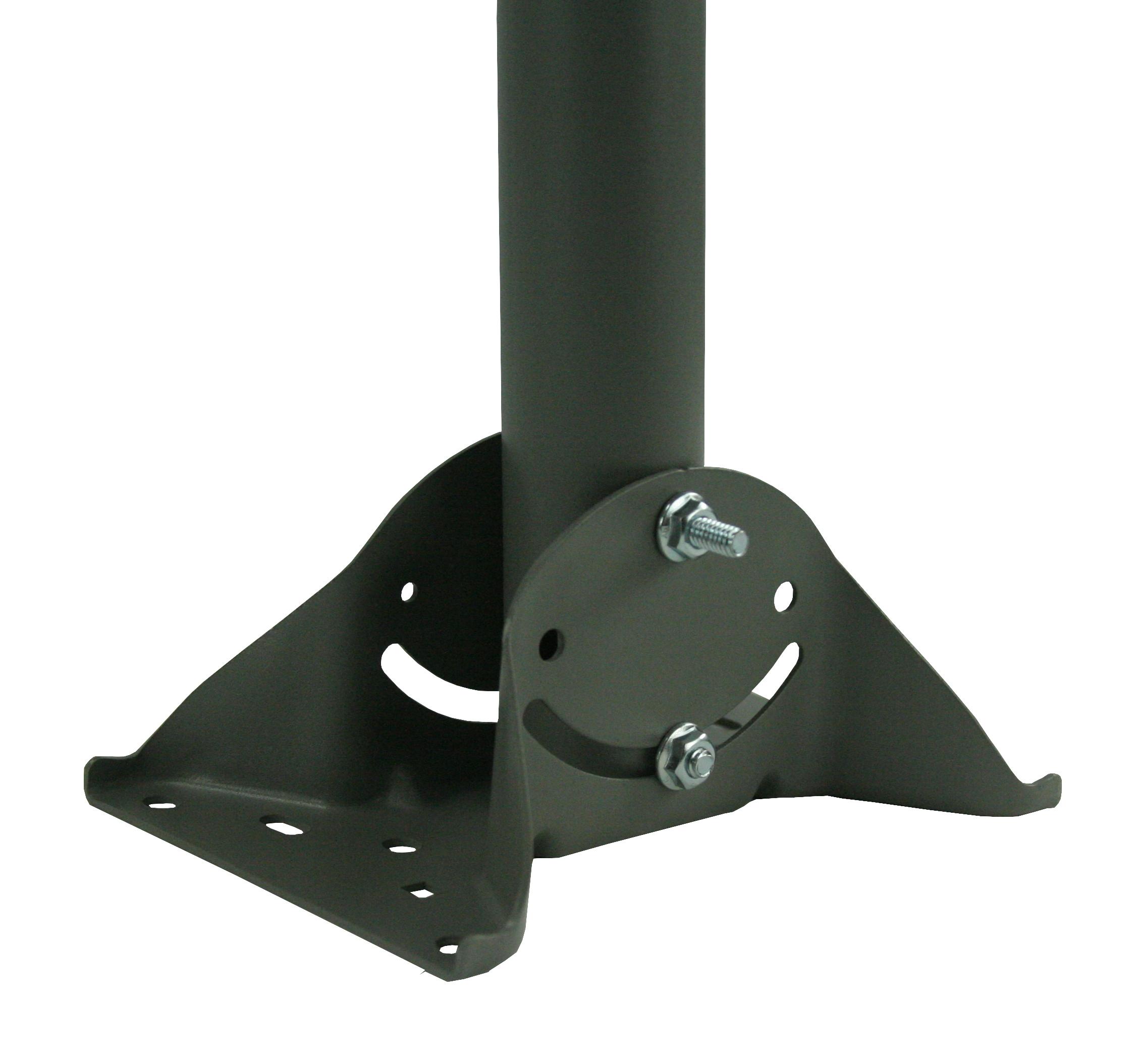

The DS-3000 combines a mast and adjustable mounting foot in one J-mount. Either end of the pipe can be used with the foot to create different mounting angles for the installation.

Key Benefits

• 1.66-inch pipe outside diameter
• Approximately 39 inches above the mounting location when configured upright
• 0.060-inch steel wall thickness
• Electro-applied gray powder coating for outdoor protection
• Pre-drilled mounting holes on both ends
• Works on under-eave, flat-roof and angled-roof installations

Who Should Buy the DS-3000?

Installers who need a long, adjustable J-mount for a compatible outdoor antenna and want flexibility in mounting angle and orientation.

Important Installation Notes

Not recommended for antennas with a boom longer than 40 inches. Confirm antenna load, wind exposure, mounting surface, fasteners, sealing, grounding, and local requirements before installation.

What's Included

• Antenna mount
• Four lag screws

Learn more:Visit the Solid Signal blog for Winegard articles.

• Complimentary: Telephone and e-mail support
• Online: Technical manual and instructions
• Support: Larger Dealer Support Network. For the dealer nearest you, call 1.800.288.8094
• Repair Parts - Also available at many dealers and/or service centers nationwide
• Warranty: 90-Day Limited Warranty
• Weight: 4.80 lbs.
• Height: 6.50 Inches
• Width: 6.00 Inches
• Depth: 42.00 Inches
