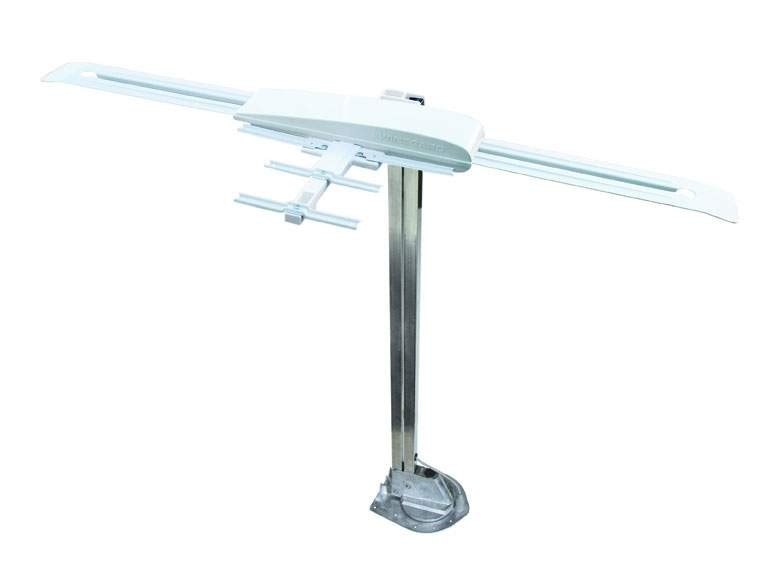

Winegard Sensar IV w/ Integrated Wingman TV Antenna System (RVW-395)

Winegard Sensar IV w/ Integrated Wingman TV Antenna System (RVW-395)

Key Features

• Extended Range up to 55 Miles - Long-range, amplified VHF/UHF antenna with unsurpassed range, allowing you to watch channels broadcast from up to 55 miles away. The built-in amplifier boosts weaker television signals giving you crystal clear reception.
• Receives All Digital and HD Channels - Optimized for digital HD reception, the Sensar IV excels at UHF (channels 14 to 51) and receives hard-to-get VHF (channels 2 to 13) digital channels so you can enjoy watching all your favorite local programs in standard or crisp clear HD.
• Best in UHF Performance - Integrated Wingman UHF Booster optimizes the Sensar IV for digital TV (DTV) channels and increases UHF performance by up to 100%
• Simple to Use - Raise, lower, and rotate the antenna with the hand crank from inside your parked RV to pinpoint the exact angle for best reception.
• Long-Lasting Durability - Powder coated for long-lasting durability with over 30 years of experience on RV roofs. Sensar antennas have passed rigorous UV and environmental testing.
• Low-Profile Design -Stows to just 4" while traveling to protect against tree branches, wires, and other obstructions.

What's in the Box:

• Sensar IV Antenna Head
• Integrated Wingman UHF Booster
• Sensar Lift Assembly
• Interior Controls
• +12 VDC Power Supply
• 20' Coax Cable
• 6' Coax Cable
• Mounting Hardware
• Printed Documentation

• Receives all available VHF/UHF/FM channels
• Unsurpassed range of 55 miles
• Optimized for every digital channel in all markets

Tech Specs

• Requirement: Requires a minimum of 16" from the boom to the edge of vehicle or nearest object.
• Clearance: Lowers to only 4" above the roof while traveling
• Antenna Directivity: Multidirectional, receives signals from multiple directions simultaneously.
• Reception Types: FM, VHF/UHF
• Frequency descriptions:
  • VHF (Very High Frequency): Provides channels 2 -13 in the frequency range 54 - 216 MHz
  • UHF (Ultra High Frequency): Provides channels 14-51 in the frequency range 470-698 MHz.
• FM Radio: Provides stations in the frequency range 88 - 108 MHz
• Power Supply: +12 VDC
• Compatible Networks: HDTV Towers
• Complimentary: Telephone and email support
• Online: Technical manuals and instructions
• Support: Large Dealer Support Network

Package Dimensions and Weights

• Weight: 10.20 LBS
• Height: 8.00 Inches
• Width: 48.00 Inches
• Depth: 15.75 Inches
