Winegard W-Type Antenna Wall Mount 4-Inch Standoff (WM-2040)
- Brand: Winegard
- P\N: WM-2040
- UPC: 615798399207
Description
Winegard W-Type Antenna Wall Mount with 4-Inch Standoff (WM-2040)
Best For
TV, radio, Wi-Fi, cellular, and similar antenna installations that need a mast secured to the side of a structure with approximately four inches of clearance.
Why Choose the Winegard WM-2040?
The WM-2040 uses galvanized-steel W-type brackets and included mounting hardware to support compatible antenna masts against a suitable structural wall.
Key Benefits
- Pair of W-type wall mounts
- Approximately 4-inch standoff
- Galvanized-steel construction
- Supports compatible 1.25- to 1.66-inch O.D. masts
- Installation hardware included
- Existing product guidance recommends one pair per five feet of mast length
Who Should Buy the WM-2040?
Installers who have confirmed mast diameter, wall structure, eave clearance, antenna load, wind loading, and grounding requirements.
Installation Notes
Mount into solid structural material rather than siding alone. Space brackets as far apart as practical within the existing five-foot guidance.

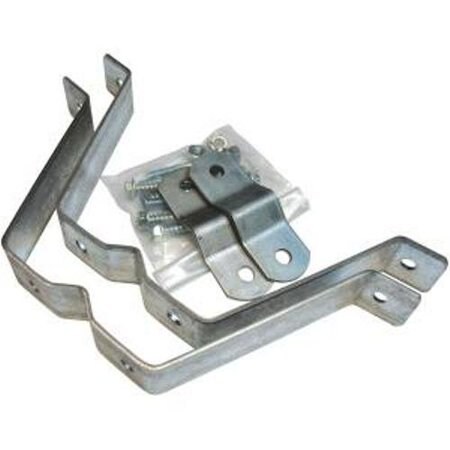

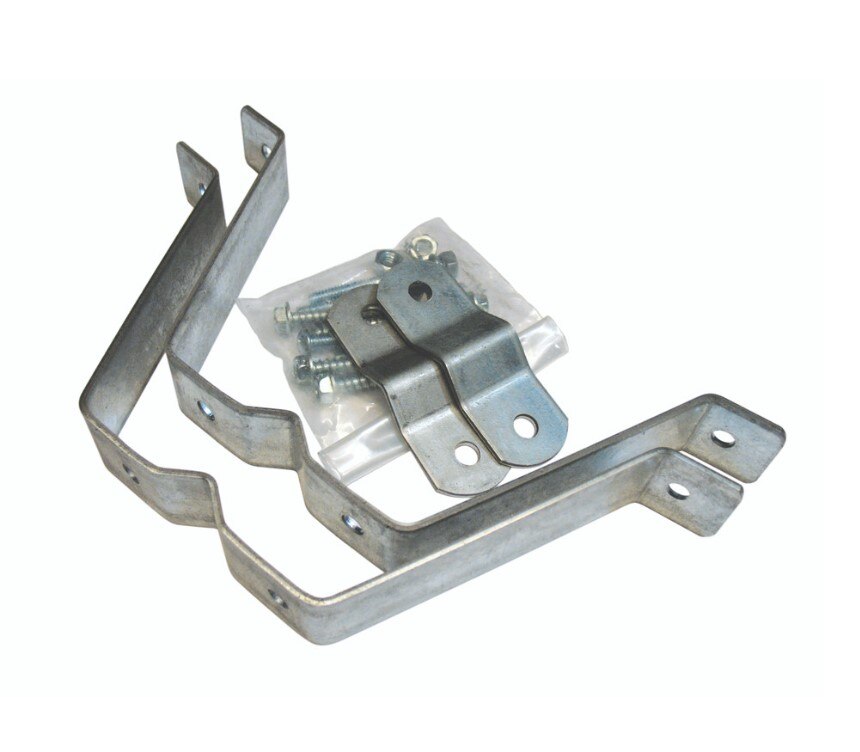

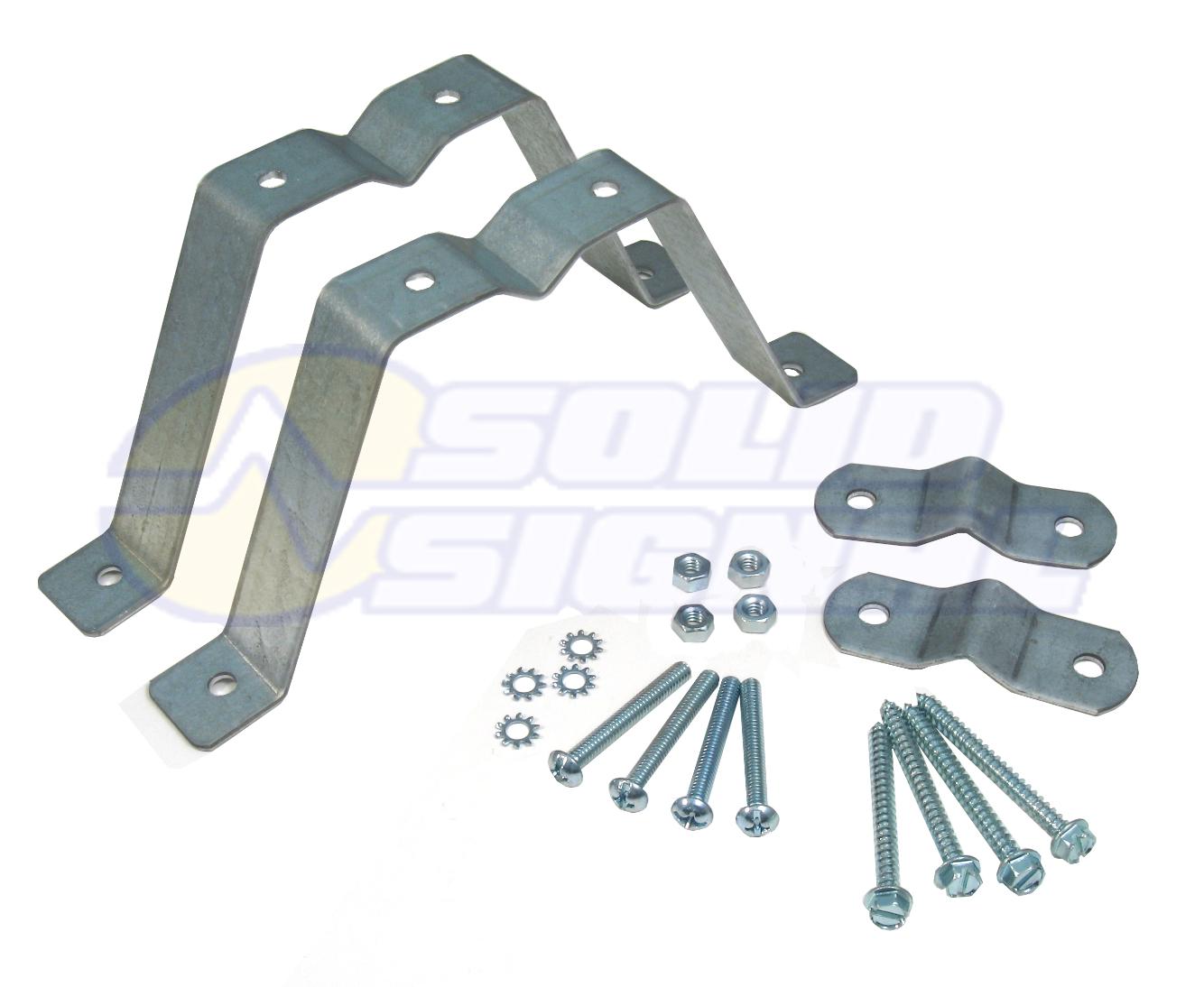

What's Included
- Two W-type wall mounts
- Four bolts
- Two mast clamps
- Four lag screws
- Four washers
- Four nuts
Learn more:Visit the Solid Signal blog for Winegard articles.
Features
- Allows for mounting of an antenna to the side of a structure
- Built from galvanized steel to ensure long-lasting endurance
- Ideal for Starlink, cell boosters, weather stations, LoRa, and off-air antennas
Specifications
- Complimentary: Telephone and email support
- Online: Technical manuals and instructions
- Support: Large Dealer Support Network
- Warranty: 90-Day Limited Warranty
Package Dimensions and Weights:
- Weight: 1.55 lbs.
- Height: 9.75 Inches
- Width: 5.00 Inches
- Depth: 1.25 Inches
