CommScope 3 Way Splitter 555-6000MHz (S-3-UW-L-NI53)

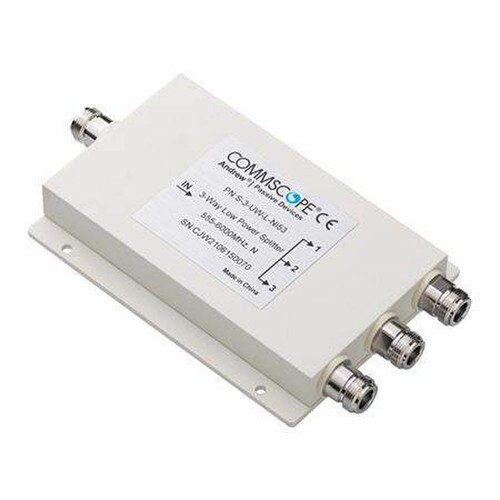

Introducing the CommScope 3-Way Splitter S-3-UW-L-NI53

Experience seamless connectivity with the CommScope Technologies LLC 3 Way Splitter 555-6000MHz - S-3-UW-L-NI53. Designed for both indoor and outdoor applications, this high-performance power splitter ensures reliable signal distribution across a wide frequency range. Ideal for professionals seeking a dependable solution for their antenna systems, the S-3-UW-L-NI53 splitter delivers exceptional performance and durability.

Key Features and Benefits

• Wide operating frequency band of 555-6000MHz for versatile use
• Low insertion loss for minimal signal degradation
• High isolation between bands for improved signal quality
• Robust construction with IP65 ingress protection rating
• Compact design for easy installation and integration

Technical Specifications

The CommScope S-3-UW-L-NI53 splitter boasts impressive technical specifications, ensuring optimal performance in various applications. Key specifications include:

• Device Type: Splitter
• Application: Indoor/Outdoor
• Color: White
• Inner Contact Plating: Silver
• Interface: N Female
• Outer Contact Plating: Trimetal
• Dimensions: 180.6 mm x 104.6 mm x 22.3 mm
• 3rd Order IMD: -153 dBc
• Insertion Loss at Frequency Band: 0.6 dB @ 555–2700 MHz | 0.9 dB @ 2700–3800 MHz | 1.45 dB @ 3800–6000 MHz
• Impedance: 50 ohm
• Isolation Between Bands: 17.7 dB
• Operating Frequency Band: 555 – 6000 MHz
• Power Rating, combining: 0.125 W
• Power Rating, Splitting: 30 W
• Split Loss: 4.8 dB
• VSWR: 1.3
• Operating Temperature: -25 °C to +85 °C (-13 °F to +185 °F)
• Relative Humidity: Up to 100%
• Ingress Protection Test Method: IEC 60529:2001, IP65

With its advanced features and robust construction, the CommScope S-3-UW-L-NI53 splitter is the perfect solution for professionals seeking reliable signal distribution in their antenna systems.

Don't compromise on connectivity. Upgrade your antenna system with the CommScope Technologies LLC 3 Way Splitter 555-6000MHz - S-3-UW-L-NI53 today and experience the difference in performance and reliability. Order now and enjoy seamless connectivity!
