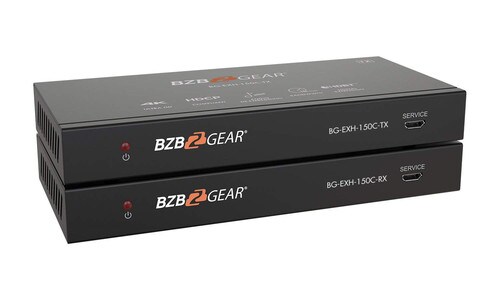

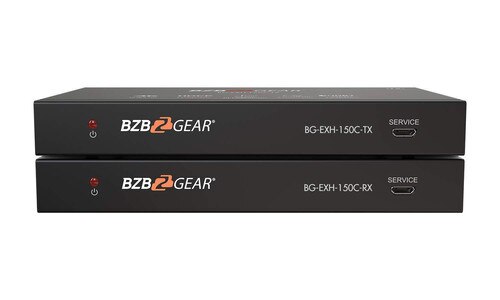

BZBGEAR 4K UHD HDMI HDBaseT Long Range Extender with Bi-directional IR/RS-232/CEC up to 490ft(BG-EXH-150C)
- Brand: BZBGEAR
- P\N: BG-EXH-150C
- UPC: 850009357236
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
Experience Unmatched Video Quality with BZBGEAR's 4K 18Gbps HDMI HDBaseT Extender (BG-EXH-150C)
Key Features and Benefits
- Supports resolutions up to 4K@60fps for crystal clear visuals
- Extends 4K HDMI signal up to 120 meters (394ft) and 1080p signal up to 150 meters (492ft) over a single category cable
- Equipped with bi-directional IR and RS-232 pass-through for both source and display control
- Power over cable function eliminates the need for an additional power supply
- Transmitter offers HDMI loop-out for a local display
- Receiver provides a 3.5mm analog audio output for external audio systems
Technical Specifications
- Product Weight: 2 lbs
- HDCP 2.2 / HDCP 1.4 compliant
- Power: 24V/1A locking power adapter
Unleash the Power of 4K with BZBGEAR's HDMI HDBaseT Extender
Experience the future of video technology with BZBGEAR's HDMI HDBaseT Extender. This state-of-the-art device supports resolutions up to 4K@60fps, delivering crystal clear visuals that will take your viewing experience to the next level. Whether you're watching a movie, streaming a game, or presenting a business proposal, this extender ensures that every detail is captured with stunning clarity.
But the HDMI HDBaseT Extender isn't just about delivering high-quality visuals. It's also designed for maximum convenience. With its bi-directional IR and RS-232 pass-through, you can control both the source and the display with ease. And thanks to its power over cable function, you don't need an additional power supply. Simply power one unit with the 24V/1A locking power adapter, and the second unit will receive power through the cable.
Plus, the HDMI HDBaseT Extender is incredibly versatile. The transmitter offers an HDMI loop-out for a local display, while the receiver provides a 3.5mm analog audio output for external audio systems. This means you can easily connect it to your existing setup and enjoy superior audio and video quality.
Don't settle for less. Upgrade your viewing experience with BZBGEAR's HDMI HDBaseT Extender today.
Experience the difference. Click 'Add to Cart' now!
Specifications
| Technical | |||
| HDCP Compliance | HDCP 2.2 / HDCP 1.4 | ||
| Video Bandwidth | 18Gbps | ||
| Video Resolution | 4K2K@50/60Hz 4:4:4 4K2K@50/60Hz 4:2:2 4K2K@50/60Hz 4:2:0 4K2K@30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i All HDMI 3D TV formats All PC resolutions including 1920 x 1200 | ||
| Color Space | RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 | ||
| Color Depth | 8/10/12-bit (1080p@60Hz, 4K@30Hz, 4K@60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K@60Hz 4:4:4) | ||
| HDMI Audio Formats | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X | ||
| L/R Audio Formats | PCM 2.0 | ||
| ESD Protection | Human body model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) | ||
| Connection | |||

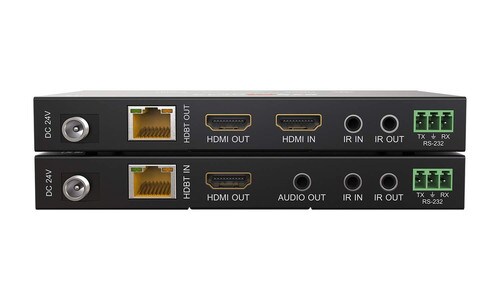

| Transmitter | Inputs: 1x HDMI Type A [19-pin female] Outputs: 1x HDMI Type A [19-pin female] 1x HDBT OUT [RJ45, 8-pin female] Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] 1x SERVICE [Mini-USB, Update port] | ||
| Receiver | Inputs: 1x HDBT IN [RJ45, 8-pin female] Outputs: 1x HDMI Type A [19-pin female] 1x AUDIO OUT [3.5mm Stereo Mini-jack] Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] 1x SERVICE [Mini-USB, Update port] | ||
| Mechanical | |||
| Housing | Metal Enclosure | ||
| Color | Black | ||
| Dimensions | Transmitter / Receiver: 5.5″ (W) x 2.5″ (D) x 0.7″ (H) [140mm (W) x 65mm (D) x 18mm (H)] | ||
| Weight | Transmitter: 0.35lbs [160g], Receiver: 0.34lbs [155g] | ||
| Power Supply | Input: AC 100 – 240V 50/60Hz Output: DC 24V/1A (Locking connector) | ||
| Power Consumption | 9.36 W | ||
| Operating Temperature | 32 – 104°F / 0 – 40°C | ||
| Storage Temperature | -4 – 140°F / -20 – 60°C | ||
| Relative Humidity | 20 – 90% RH (no condensation) | ||
| Resolution / Distance | |||
| 4K2K | 394ft / 120M | ||
| 1080P | 492ft / 150M | ||
| Resolution / Cable Length | 4K@60 – Feet / Meters | 4K@30 – Feet / Meters | 1080P@60 – Feet / Meters |
| HDMI IN / OUT | 16ft / 5M | 32ft / 10M | 50ft / 15M |
| The use of “Premium High Speed HDMI” cable is highly recommended. |
