  • Altelix NF100806-DIN - 10x8x6 Industrial DIN Rail Enclosure Fiberglass NEMA 4X IP66

Altelix NF100806-DIN - 10x8x6 Industrial DIN Rail Enclosure Fiberglass NEMA 4X IP66

  • Brand: Altelix
  • P\N: NF100806-DIN
(0)No Reviews yet

Availability: In Stock


Special Note: This item is Non-Cancellable and Non-Returnable

Ships Within: Next Business Day

Your Price: $149.99

Do you have questions?

Please contact our experts for assistance.

Description

Altelix NF100806-DIN 10x8x6 Fiberglass NEMA 4X/IP66 DIN-Rail Enclosure


Best For

Outdoor/industrial DIN-rail controls, communications, IoT, SCADA and security equipment needing a rugged RF-transparent enclosure.

Why Choose the NF100806-DIN?

This fiberglass-reinforced polyester enclosure includes two 35 mm top-hat DIN rails and steel brackets providing seven adjustable rail positions.

Key Benefits

  • NEMA 4X and IP66 protection stated in existing content
  • Fiberglass-reinforced polyester, RF-transparent and non-conductive
  • Two 35 mm DIN rails included
  • Seven adjustable DIN-rail positions
  • Two PG-16 cable glands
  • Stainless-steel hinge, latches and mounting feet

Who Should Buy the NF100806-DIN?

Industrial/electronics installers who have confirmed equipment dimensions, DIN layout, heat load, cable entries, environmental rating, grounding and current Altelix instructions.

Important

The complete existing description is preserved below, including applications, cable-gland and mounting details.

Purchase Note

Non-Cancellable and Non-Returnable.

NEMA 4X Weatherproof Protection for DIN Rail Mounted Equipment

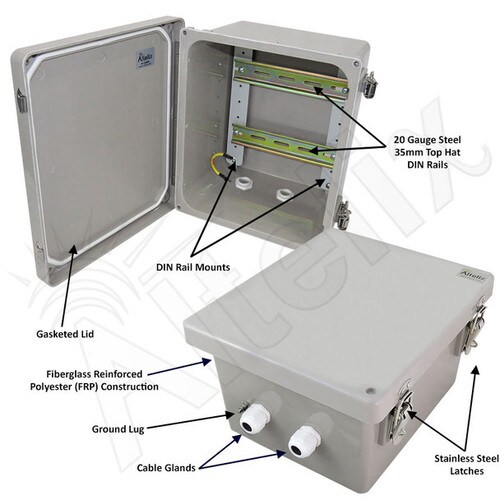

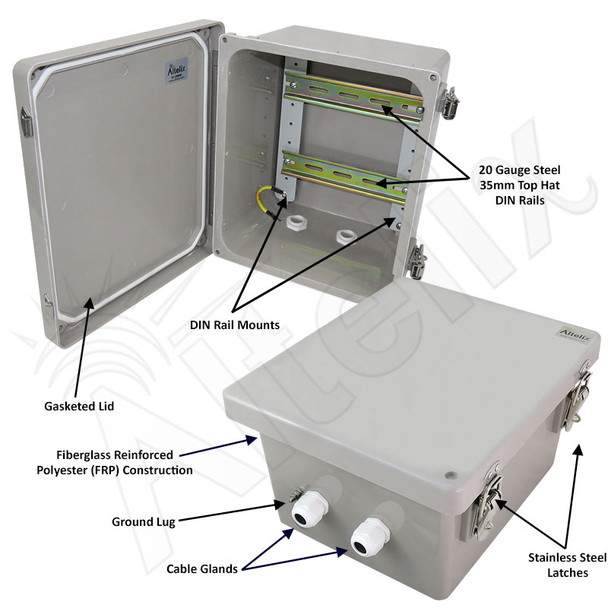

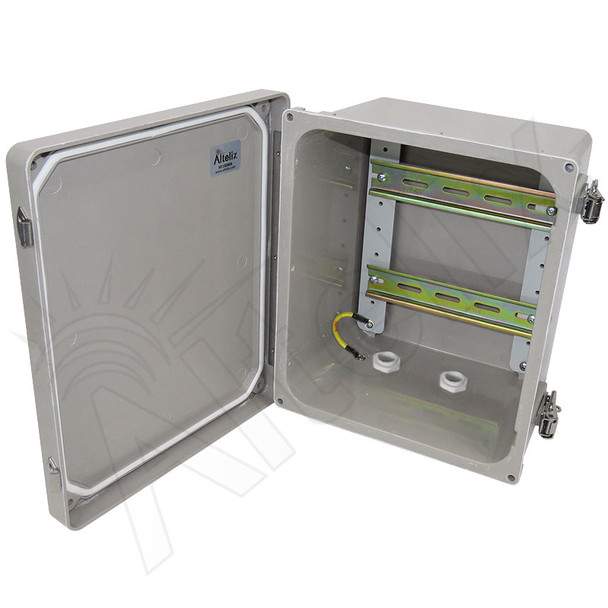

The Altelix NF100806-DIN NEMA 4X Weatherproof DIN Rail Enclosure features two heavy duty 12 gauge steel DIN rail mounting brackets that provide 7 adjustable DIN rail mounting positions. For convenience, the enclosure also includes two pre-cut steel 35mm top-hat rails and mounting hardware.

Extreme Protection Built to Last
The NF100806-DIN is ideal for protecting equipment from harsh environments and tampering. This rugged NEMA box is molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps.

This JIC style enclosure is dent-proof, corrosion resistant and UV stable. The FRP material is non-conductive and RF transparent. It is suitable for use in the harshest outdoor environments. It can be drilled and modified by the installer to suit unique site requirements.

Cable Glands
The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.

Features

  • Steel Din Rail Mounting Brackets with 7 Rail Mounting Positions
  • Includes (2) Steel 35mm Top Hat DIN Rails and Screws
  • Water Resistant JIC Enclosure Design with Gasketed Lid
  • Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66
  • Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
  • Fiberglass Reinforced Polyester, FRP
  • Weatherproof, UV Stable and Highly Corrosion Resistant
  • Includes Cable Glands and Stainless Steel Mounting Feet
  • RF Transparent and Non-Conductive
  • Pole Mounting Kit Available

Applications

  • Rapid Deployment Communications
  • DIN Rail Mounted Equipment
  • Harsh Environments
  • Building Automation Controls
  • Industrial Controls Enclosure
  • IoT Sensors
  • SCADA Remote Terminal Unit
  • Security and Surveillance Systems
  • Solar Equipment Enclosure
  • Outdoor Use of Indoor Equipment
  • Protection from Vandalism
  • Concealment of Electronic Equipment
