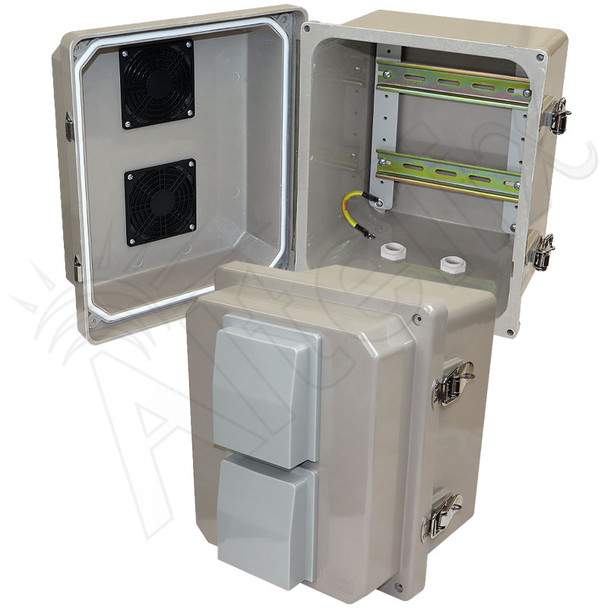

Altelix 10x8x8 Vented Industrial DIN Rail Fiberglass Enclosure

Vented Weatherproof Protection for DIN Rail Mounted Equipment

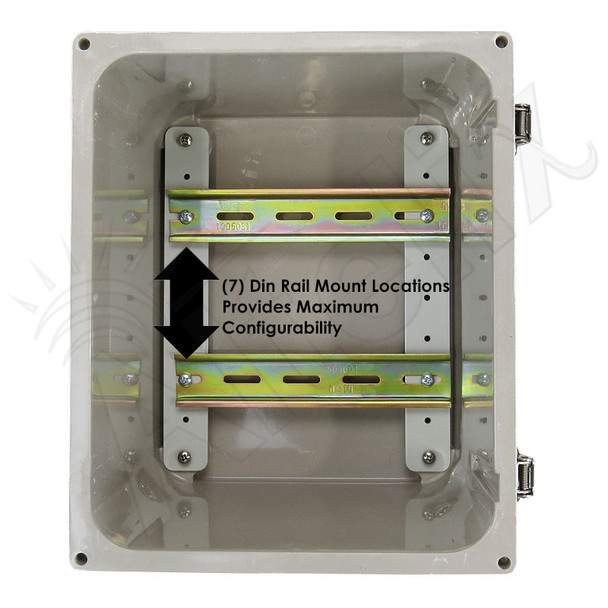

The Altelix NF100808V-DIN Weatherproof Vented DIN Rail Enclosure features two heavy duty 12 gauge steel DIN rail mounting brackets that provide 7 adjustable DIN rail mounting positions. For convenience, the enclosure also includes two pre-cut steel 35mm top-hat DIN rails and mounting hardware.

Vented NEMA Enclosure
This enclosure features two 3 inch air vents covered by rain shields, allowing ventilation of installed equipment or batteries while maintaining waterproof protection.

Extreme Protection Built to Last
The NF100808V-DIN is ideal for protecting equipment from harsh environments and tampering, while allowing ventilation for equipment or batteries. This rugged NEMA box is molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps.

This JIC style enclosure is dent-proof, corrosion resistant and UV stable. The FRP material is non-conductive and RF transparent. It is suitable for use in the harshest outdoor environments. It can be drilled and modified by the installer to suit unique site requirements.

Increased Interior Space

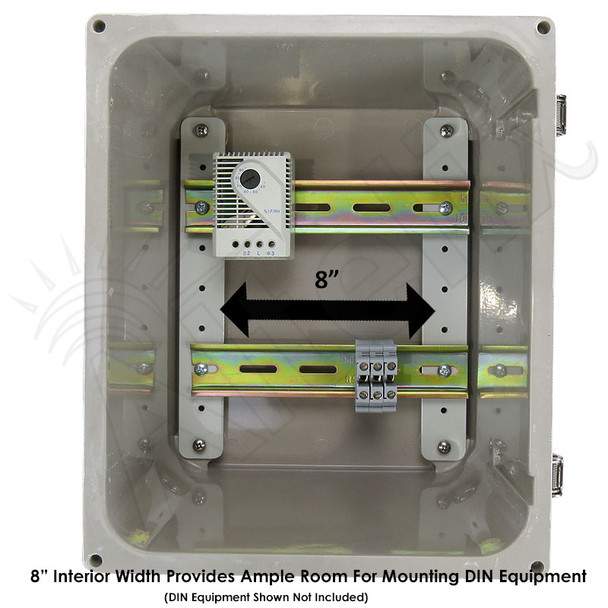

The NF100808 series enclosures feature an extra deep lid, almost 2 inches deeper than our NF100806 series enclosures. With the generous size of this enclosure and extended lid the NF100808 can accommodate a wide range of equipment.

Cable Glands
The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available (see accessories above).

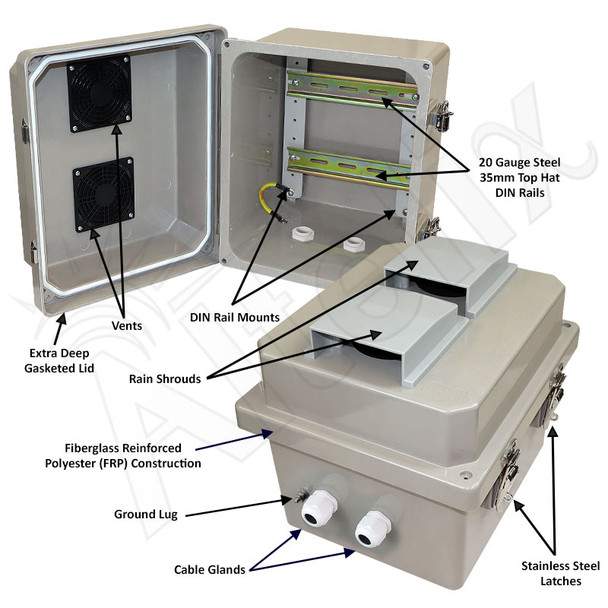

Features

• Two (2) 3" Vents with Rain Shields and Screens
• Steel DIN Rail Mounting Brackets with 7 Rail Mounting Positions
• Includes (2) Steel 35mm Top Hat DIN Rails and Screws
• NEMA Type 3R, 3RX / IP24 Rated
• Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
• Extra Deep Extended Lid for Increased Equipment Clearance
• Fiberglass Reinforced Polyester, FRP
• Weatherproof, UV Stable and Highly Corrosion Resistant
• Includes Cable Glands and Stainless Steel Mounting Feet
• RF Transparent and Non-Conductive
• Pole Mounting Kit Available

Applications

• Rapid Deployment Communications
• DIN Rail Mounted Equipment
• Harsh Environments
• Building Automation Controls
• Industrial Controls Enclosure
• IoT Sensors
• SCADA Remote Terminal Unit
• Security and Surveillance Systems
• Solar Equipment Enclosure
• Outdoor Use of Indoor Equipment
• Protection from Vandalism
• Concealment of Electronic Equipment
