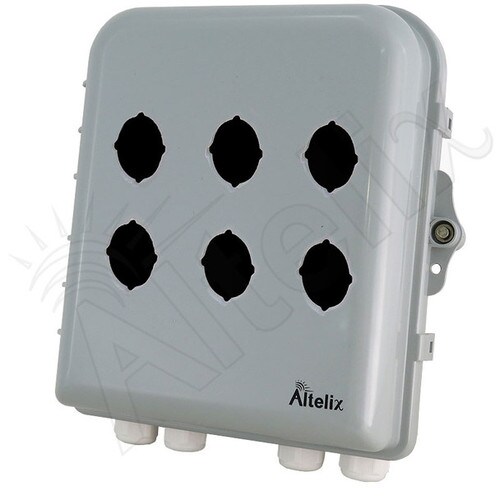

Altelix NP100904-PB30-06 - 10x9x4 IP66 NEMA 4X PC+ABS Weatherproof 6 Pushbutton Enclosure with 30mm holes

Weatherproof Polycarbonate + ABS Construction For Extreme Durability

The Altelix NP100904-PB Series is an industrial quality weatherproof Push Button Enclosure designed to offer extreme protection for a variety of 22 and 30 mm pilot devices including indicators and selector switches.

Construction and Features

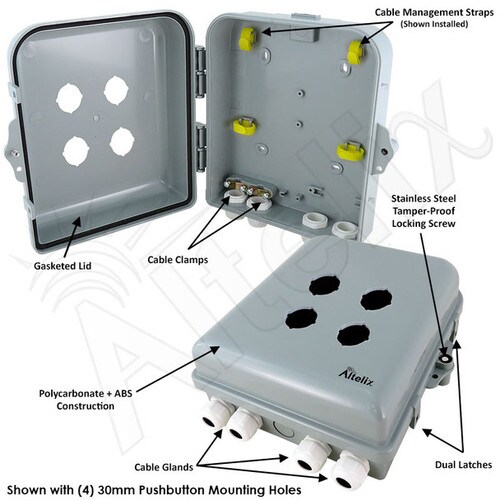

This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for padlock. It meets or exceeds NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66.

Complete with Cable Glands and Wire Management Straps
This enclosure includes 4 weatherproof cable glands. Simply punch out the seal, run your cable, and hand tighten for a water-tight seal. For convenience, the included accessory kit contains wall anchors, zip ties, hook-and-loop wire management straps, door locking key and more.

Pushbutton Enclosure

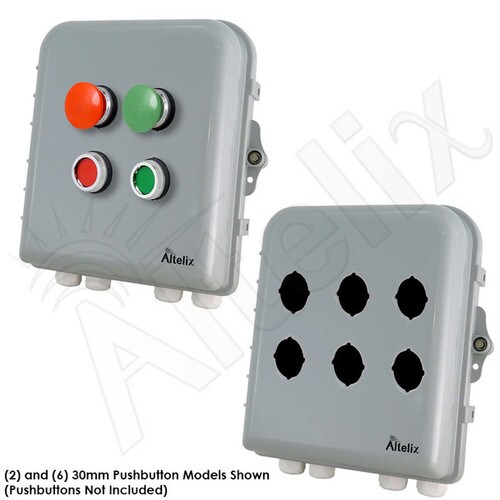

The NP100904-PB is designed to work with 22.5mm or 30.5mm push buttons, switches, pilot lights and other indicators. The gasketed hinged door of this enclosure helps prevent damage and wear to sensitive electrical contacts. The NP100904-PB is available in 1 hole, 2 hole, 3 hole, 4 hole, 6 hole vertical, 6 hole horizontal and 9 hole configurations. (See the download section for configuration drawings and hole dimensions) Custom push button mounting hole configurations are also available.

Pole Mount Available
A pole mounting kit is also available for this enclosure. The NMKG-150-08 attaches to the rear of the enclosure and allows it to be mounted to poles and fence posts up to 9.5 inches in diameter.

Features

• Includes Cable Glands, Zip Ties, Cable Management Straps and Wall Mounting Hardware
• Weatherproof and UV Stable
• Durable Polycarbonate + ABS
• Gasketed Lid with Tamper-Proof Locking Screw & Key and Provision for Padlock
• Available with either 1, 2, 3, 4, 6 and 9 Precut Pushbutton Mounting Holes (22mm or 30mm)
• Meets NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66*
• Optional Pole Mount Kit Available

Applications

• Protection for Industrial Components
• Securely House Pushbutton devices such as Indicators, Selector Switches, Pilot Lights and Buzzers
• Agriculture Processing Facilities
• Mining Operations and Refineries
• Food Processing Facilities
• Industrial Controls
• Building Automation
• Warehouses and Package Sorting Facilities
• Access Controls
