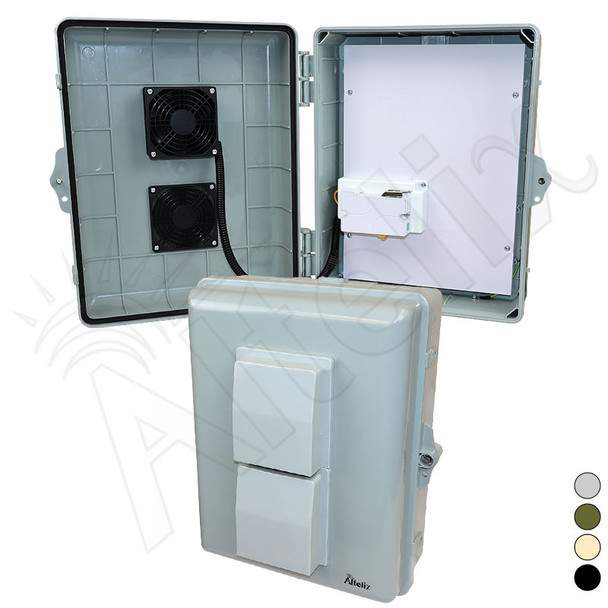

Altelix 14x11x5 PoE Powered Vented Polycarbonate + ABS Weatherproof NEMA Enclosure with DC Cooling Fan & 2-Port PoE Power Splitter

The Altelix NP141105VMFE1 Vented Polycarbonate + ABS NEMA Weatherproof PoE Enclosure with DC Cooling Fan and Non-Metallic Equipment Mounting Plate is ideal for protecting Power-Over-Ethernet (PoE) enabled equipment from harsh environments and tampering. Using a single Ethernet cable to provide power and data, this enclosure can be installed in remote locations with no power outlets available. It features a gasketed door to protect from dust and ingress, reinforced hinges, dual latches and a tamper-proof locking screw with key to secure the enclosure.

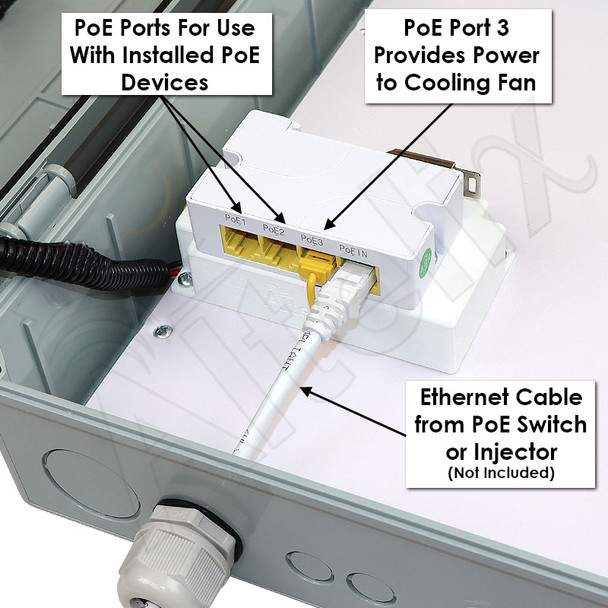

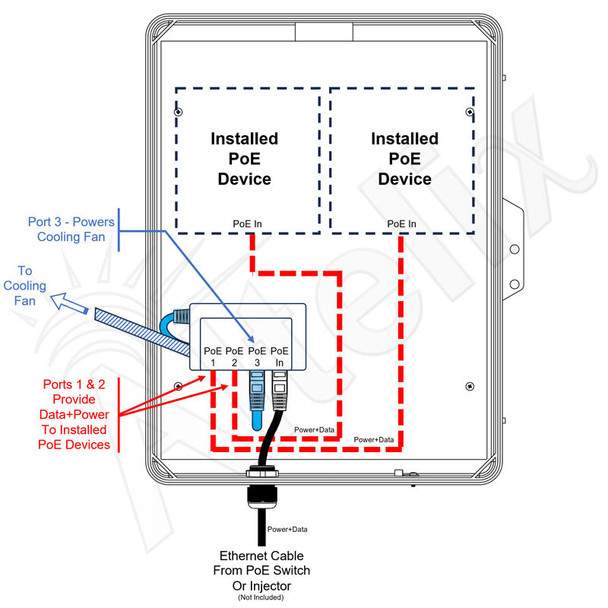

Integral Gigabit PoE/PoE+ Repeater / Power Splitter
Featured in this enclosure is an integral Gigabit PoE repeater/power splitter mounted to the equipment mounting plate. This Gigabit PoE splitter is used to power the thermostat controlled DC cooling fan as well as providing data+power to one or two PoE enabled devices installed inside the enclosure. The PoE splitter is compatible with IEEE 802.3af/at standards and features 10/100/1000Mbps data speeds.

PoE Powered Cooling Fan

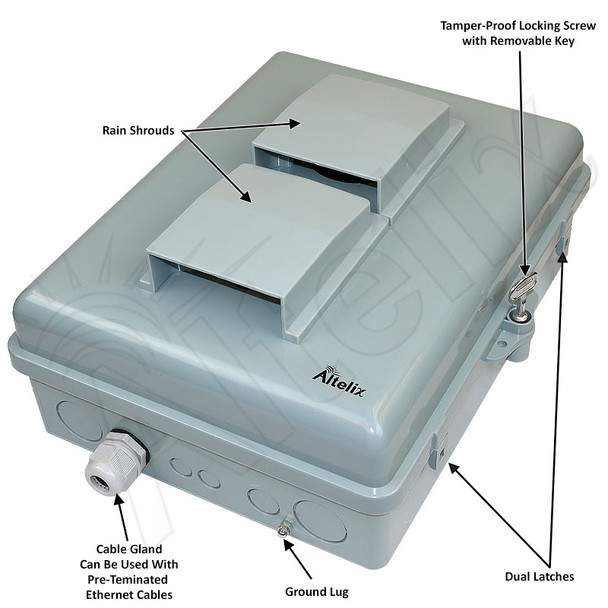

The NP141105VMFE1 features dual 3" vents and a thermostat controlled PoE powered DC cooling fan. The low noise, high airflow fan helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Rain shrouds on the front door keep rain water from entering the enclosure. Dual fans are also available by request.

No-Drill Non-Metallic Equipment Plate
This enclosure includes a no-drill non-metallic 1/4" thick PVC equipment mounting plate. Due to the "No-Drill" design of this plate, mounting radios and other equipment can be done simply by using self-tapping screws.

RF Transparent Design
The NP141105VMFE1 is ideal for WiFi applications. The non-metallic design of both the enclosure and equipment mounting plate will not interfere with the radio's operation. The generous size of this enclosure will accommodate a wide range PoE wireless equipment.

PC+ABS Polycarbonate / ABS Blend for Extreme Durability
These enclosures are molded out of UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS which combines the best qualities of both into a single material. PC+ABS enclosures are superior to ABS enclosures because they maintain high toughness, durability and dimensional stability even at extreme cold and hot temperatures.

Cable Gland
This enclosure features a specially designed cable gland which will allow a pre-terminated Ethernet cable to be fed into the enclosure.

Mounting
The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for installation on poles up to 8 inches in diameter.

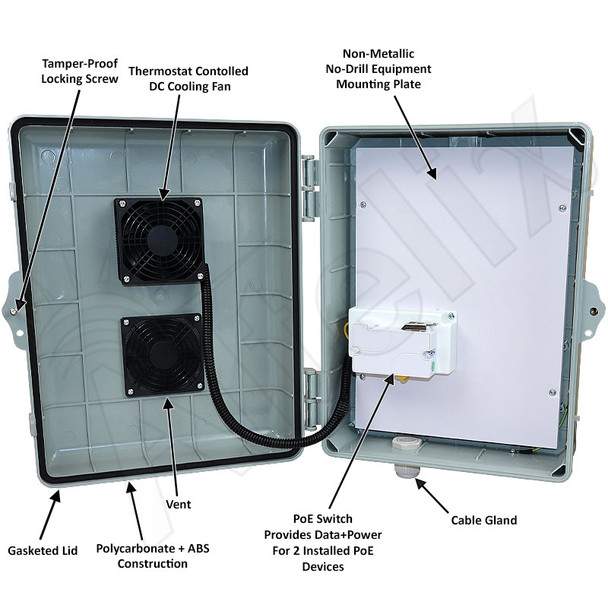

Features

• Integral Gigabit PoE/PoE+ Repeater/Power Splitter Which Provides Power+Data for up to (2) PoE Devices
• Dual 3" Vents with PoE Powered Thermostat Controlled DC Cooling Fan
• ABS + Polycarbonate Construction

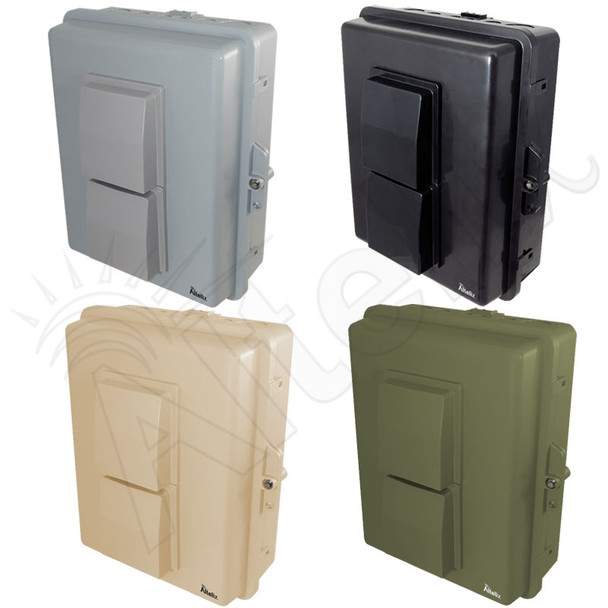

• Available in Gray, Black, Light Ivory and OD Green
• Gasketed Lid with Tamper-Proof Locking Screw and Dual Door Latches
• Features a No-Drill Non-Metallic Equipment Mounting Plate - Mount Your Equipment Securely Without the Need for Drilling
• NEMA Type 3R, 3RX / IP24 Rated
• Unique Cable Gland allows You to Feed a Pre-Terminated Ethernet Cable Into the Enclosure
• Includes Wall Mount Hardware

Applications

• PoE Network Equipment Deployment
• Indoor / Outdoor WiFi PoE Access Points and Routers
• Installation in Remote Locations Without Available Power
• Security and Surveillance Systems
• Outdoor Use of Indoor Equipment
• Protection of Equipment From Theft or Damage
• Concealment of Electronic Equipment
