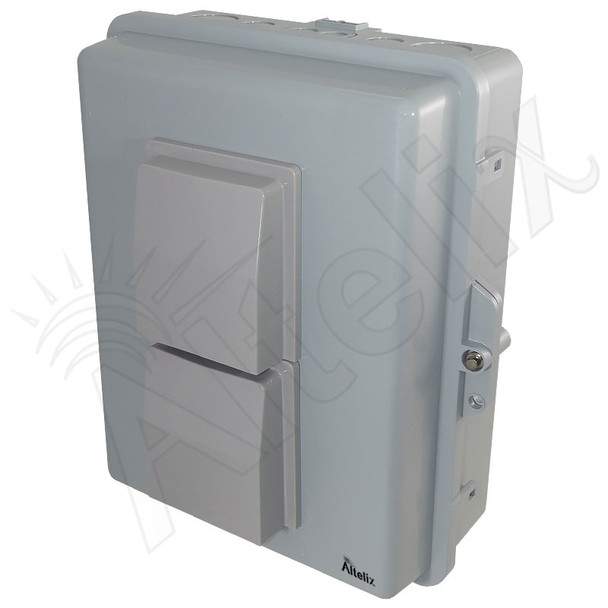

Altelix NP141105VAU - 14x11x5 Polycarbonate + ABS Vented Weatherproof NEMA Enclosure with 100-240 VAC Universal Power Outlet

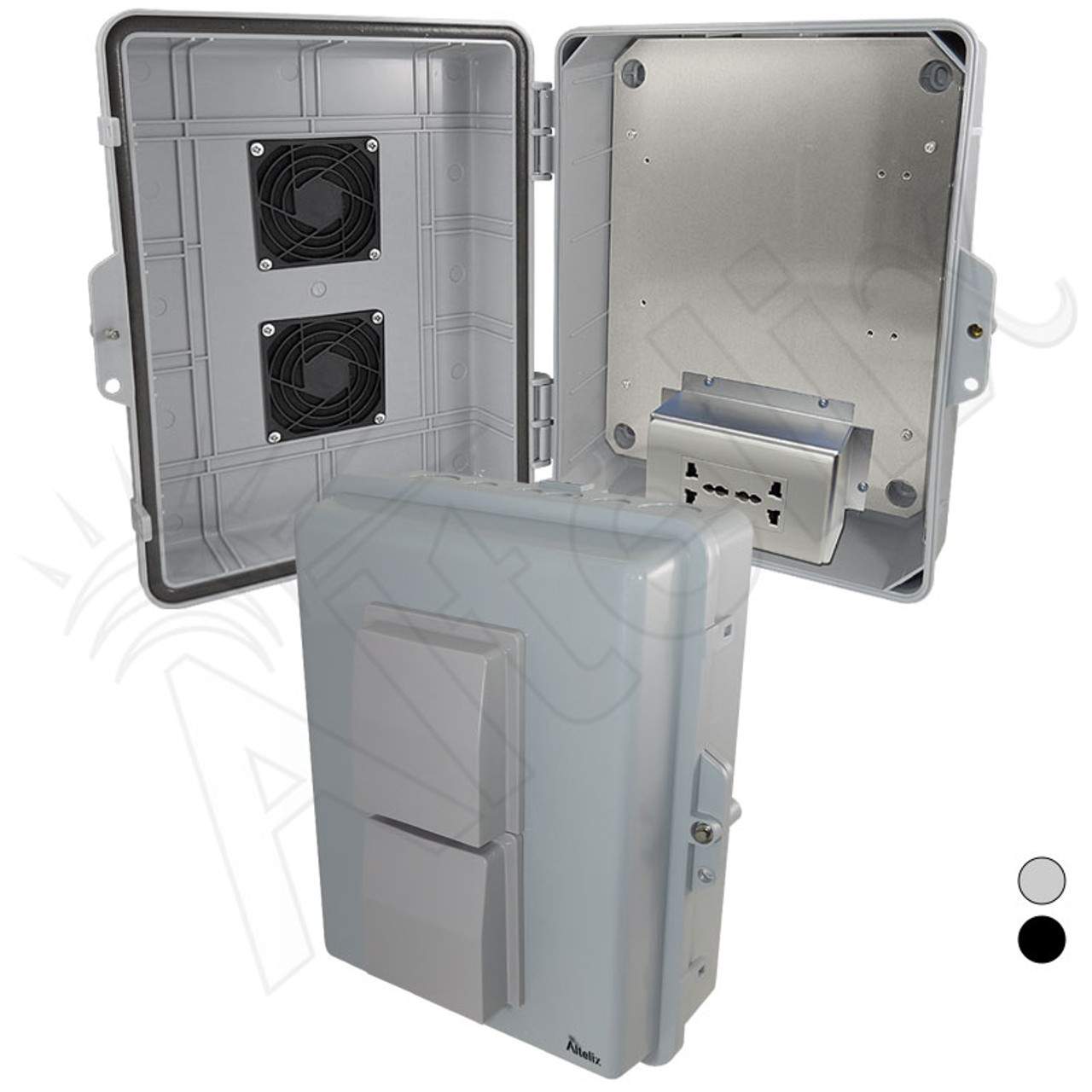

The Altelix NP141105VAU Vented Polycarbonate + ABS NEMA Weatherproof Enclosure with 100-240VAC Universal Power Outlet and Aluminum Equipment Plate is ideal for protecting equipment from harsh environments and tampering. This enclosure features a fully gasketed door to protect from dust and water ingress. The door features reinforced hinges, dual latches and a tamper-proof locking screw with key to secure the enclosure. There is also a provision for padlock use. Internal and external electrical ground points are also provided.

PC+ABS Polycarbonate / ABS Blend for Extreme Durability
These enclosures are molded out of UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS which combines the best qualities of both into a single material. PC+ABS enclosures are superior to ABS enclosures because they maintain high toughness, durability and dimensional stability even at extreme cold and hot temperatures.

Ventilation
This enclosure features two 3.5 inch air vents. Rain shields help prevent rain water from entering the enclosure.

Power
This enclosure features a 100-240VAC universal power outlet supporting multiple international power standards outside the USA.:

• 110VAC 50/60Hz
• 115VAC 50/60Hz
• 220VAC 50/60Hz
• 230VAC 50/60Hz
• 240VAC 50/60Hz

Universal Power Outlet

The universal 100-240 VAC power outlet is compatible with the following plug types:

• UK/Ireland BS 1363
• Italy CEI 23-16/VII
• Denmark Afsnit 107-2-D1
• Euro plug (2-pin) CEE 7/16
• Australia Type I
• India BS 546

For the following plugs types, please refer to the safety notes in the Technical Specs:

• Swiss (2-pin) SEV 1011
• Israel SI 32
• North America (2-pin) NEMA 1-15 and (3-pin) NEMA 5-15
• Continental Europe (Schuko) CEE 7
• France/Belgium CEE 7

A ground lug is provided on the side of the enclosure. Knock-outs on two sides of the enclosure are provided for additional wiring. Cable grommets are included with the accessory kit.

Aluminum Equipment Mounting Plate
The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

Mounting
The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for installation on poles up to 8 inches in diameter. See the accessories section above.

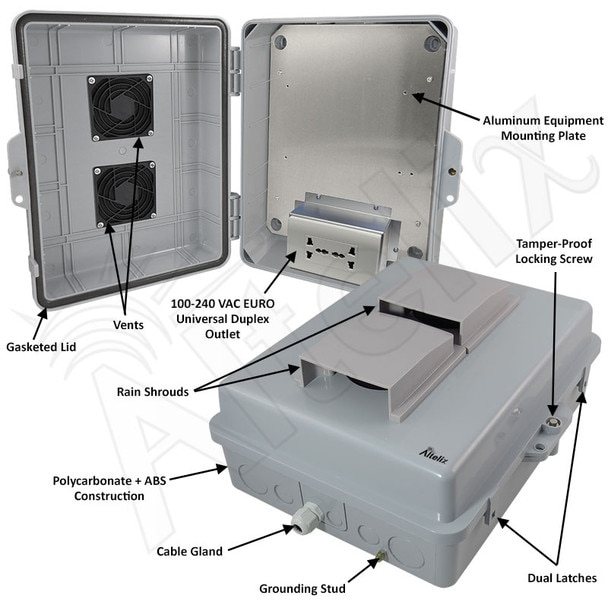

Features

• Universal 100-240VAC Duplex Outlets
• Dual 3.5" Vents with Rain Shields to Expel Heat
• ABS + Polycarbonate Enclosure
• Gasketed Lid with Tamper-Proof Locking Screw
• Dual Door Latches
• Includes Aluminum Mounting Plate
• NEMA Type 3R, 3RX / IP24 Rated
• Includes Wall Mount Hardware and Cable Grommets

Applications

• Worldwide Operation
• Indoor / Outdoor WiFi Equipment
• SCADA Remote Terminal Unit
• Security and Surveillance Systems
• Outdoor use of Indoor Equipment
• Protection of Equipment from Theft or Damage
• Concealment of Electronic Equipment
