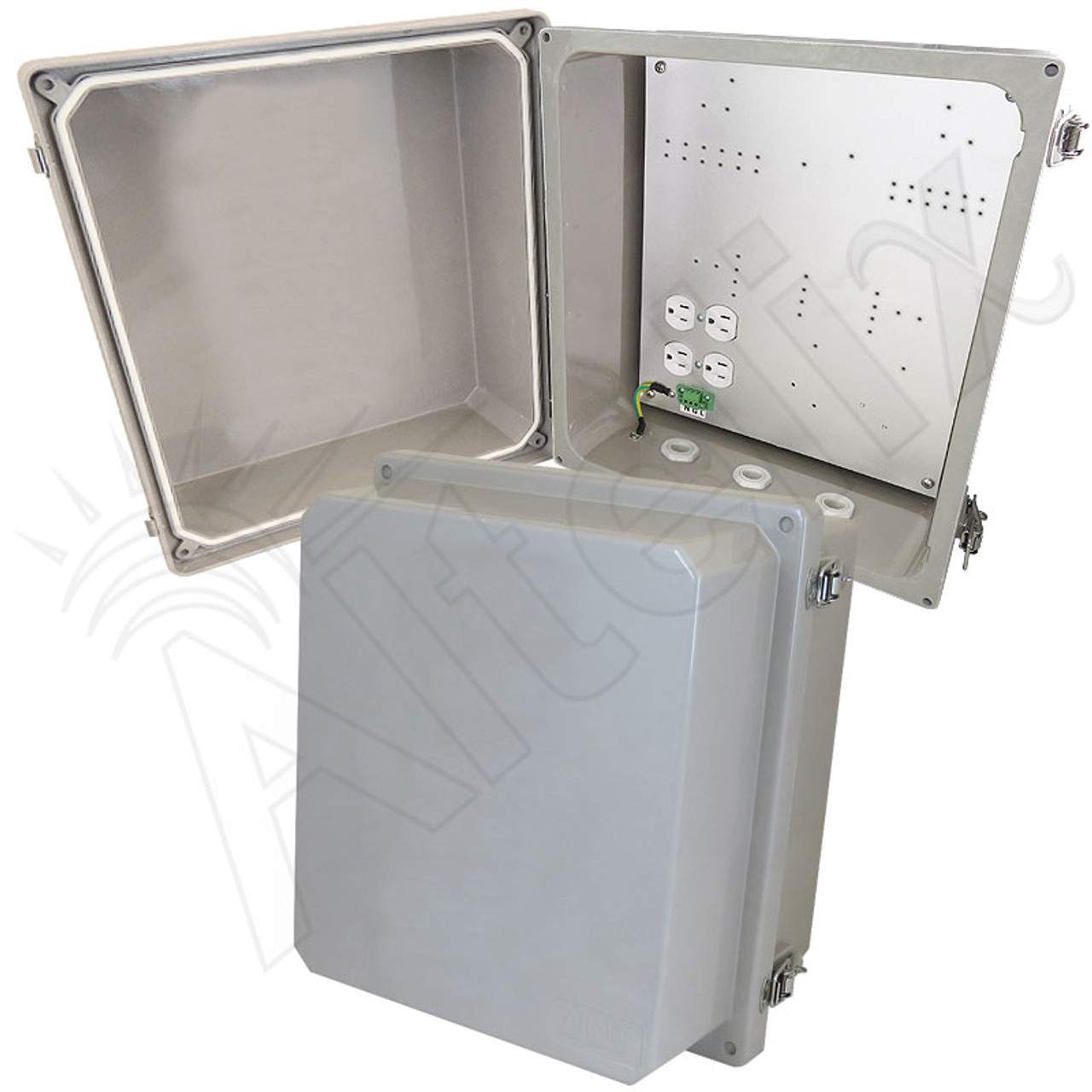

Altelix 14x12x10 Fiberglass Weatherproof Heated NEMA Enclosure with 200W Heater & 120 VAC Outlets

Altelix 14x12x10 Fiberglass Weatherproof Heated NEMA Enclosure with 200W Heater & 120 VAC Outlets

Heated NEMA 4X Protection with Power Outlets

The Altelix NF141210HA1 Heated NEMA Enclosure is deal for cold environments. It features a thermostat controlled 200W heating system. The heater turns on when the internal temperature reaches 43°F (6°C) and turns off when it rises to 59°F (15°C). The heater is mounted below the equipment plate and wired internally so leaves the interior space and power outlets available for your equipment. An insulated extreme cold weather model is also available with a 400W heating system.

120VAC Power Outlets
This enclosure features four pre-wired 120VAC power outlets. A terminal block provides easy wiring by a qualified installer.

Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.

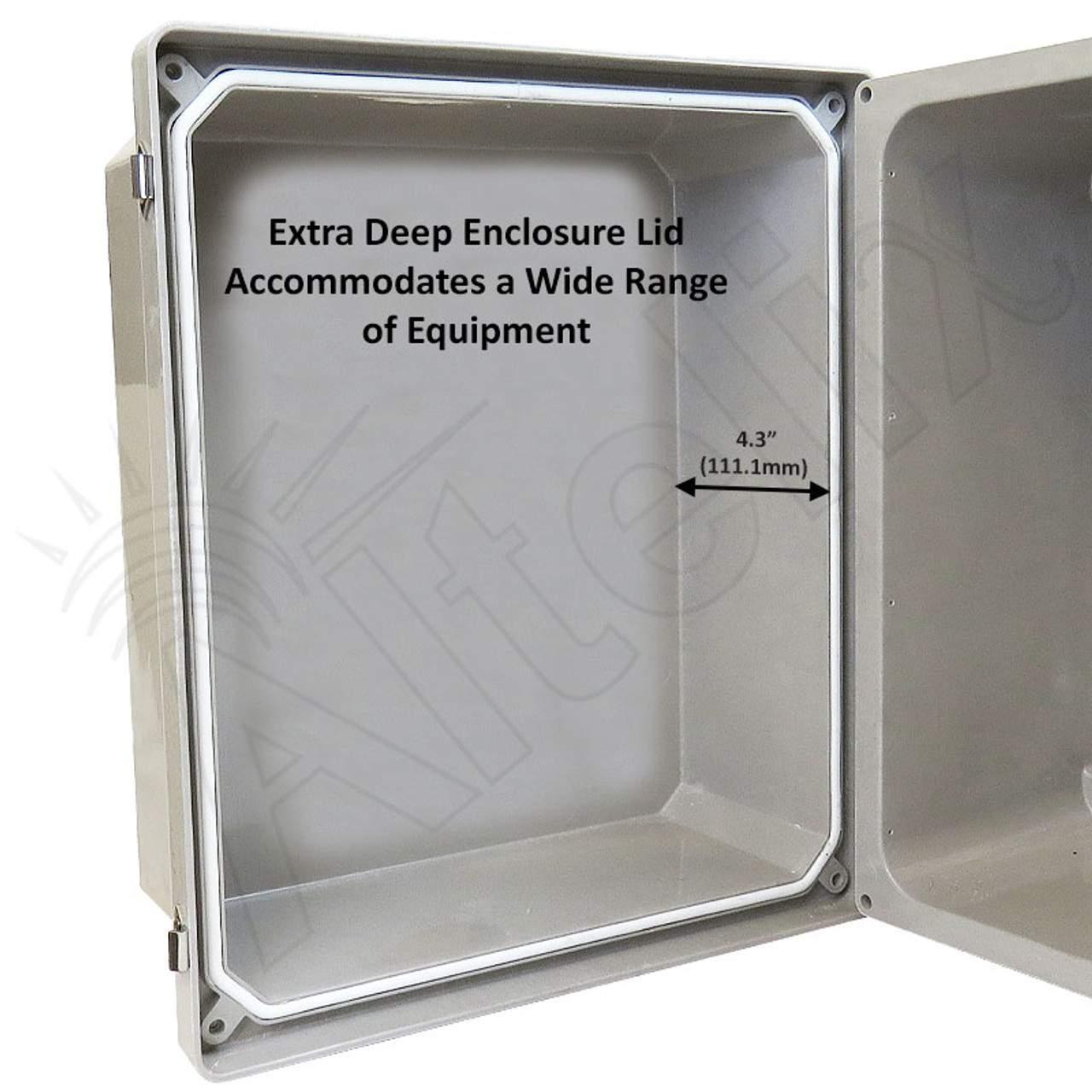

Increased Interior Space
The NF141210 series enclosures feature an extra deep lid, almost 2 inches deeper than our NF141208 series enclosures. With the generous size of this enclosure and extended lid the NF141210 can accommodate a wide range of equipment.

Cable Glands
The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Removable Terminal Block
This enclosure features our 120VAC top entry terminal block. It is easily removable which helps simplify on-site wiring. It can accept wires sizes from 12 to 18 AWG. The wires are secured by side terminal screws.

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available: painted steel ( NMKS-300-08) and stainless steel (NMKX-300-08).

Additional Sizes Available
The NF14 series enclosures are available in two additional sizes:
NF141206 Series - 14x12x6
NF141208 Series - 14x12x8

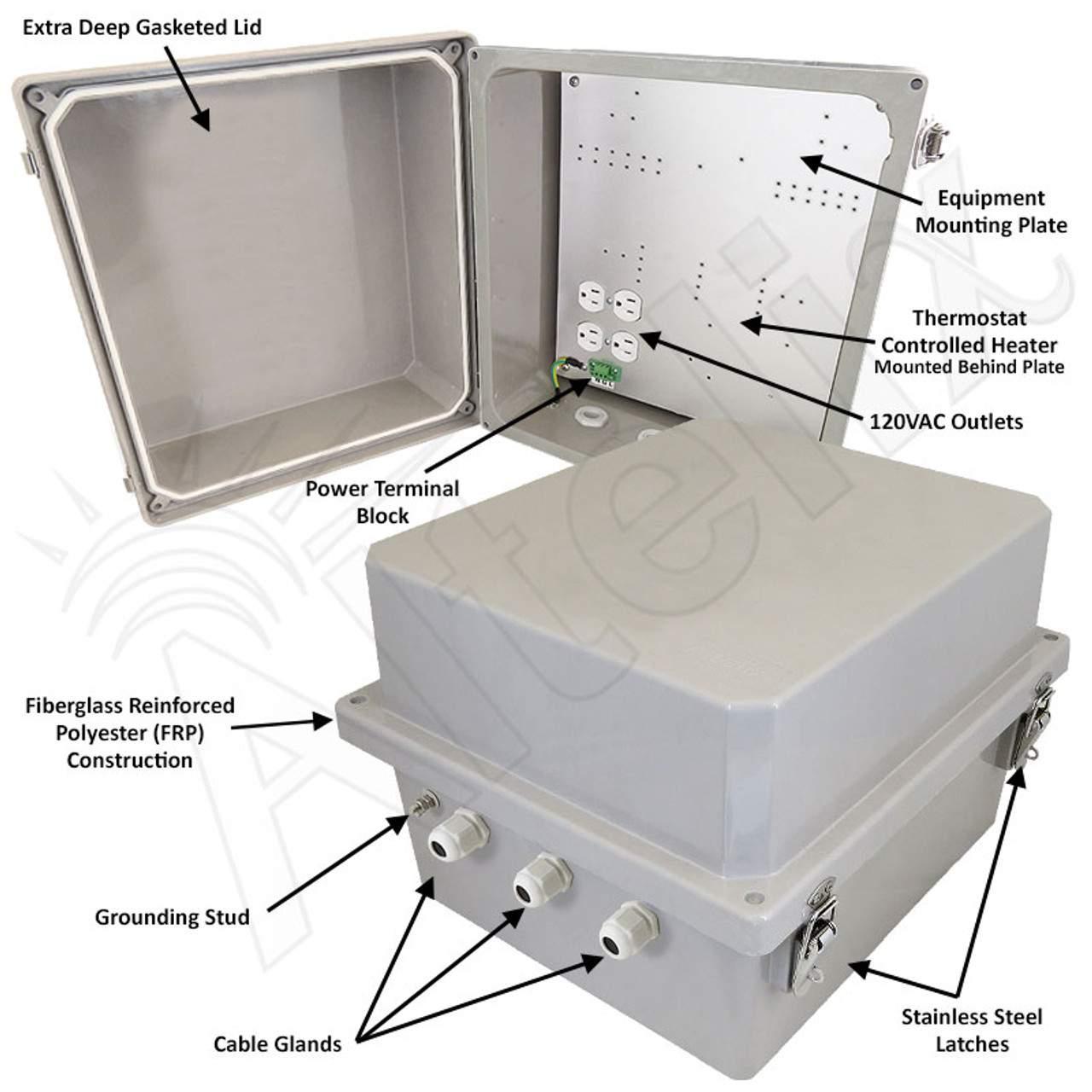

Features

• Thermostat Controlled 200W Heating System
• (4) Pre-Wired 120VAC Outlets
• Removable 120VAC Terminal Block
• Aluminum Equipment Mounting Plate
• Extra Deep Extended Lid for Increased Equipment Clearance
• Stainless Steel Hinges with High Quality 316 Steel Hinge Pins
• Stainless Steel Quick Release Latches with Padlock Hasps
• Fiberglass Reinforced Polyester, FRP
• Weatherproof, UV Stable and Highly Corrosion Resistant
• Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66
• Includes Cable Glands and (4) Stainless Steel Mounting Feet
• RF Transparent Enclosure
• Pole Mounting Kit Available

Applications

• Rapid Deployment Systems
• Harsh Cold Weather Environments
• Refrigerated Warehouses
• WiFi Enclosure
• RFID Reader Enclosure
• IoT Sensors
• SCADA Remote Terminal Unit
• Security and Surveillance Systems
• Outdoor use of Indoor Equipment
• Protection from Vandalism
• Concealment of Electronic Equipment
• Building Automation Controls
• Industrial Controls Enclosure
