Altelix NF141206-DIN - 14x12x6 Industrial DIN Rail Enclosure Fiberglass NEMA 4X IP66

Altelix 14x12x6 Industrial DIN Rail Enclosure Fiberglass NEMA 4X IP66 (NF141206-DIN)

NEMA 4X Weatherproof Protection for DIN Rail Mounted Equipment

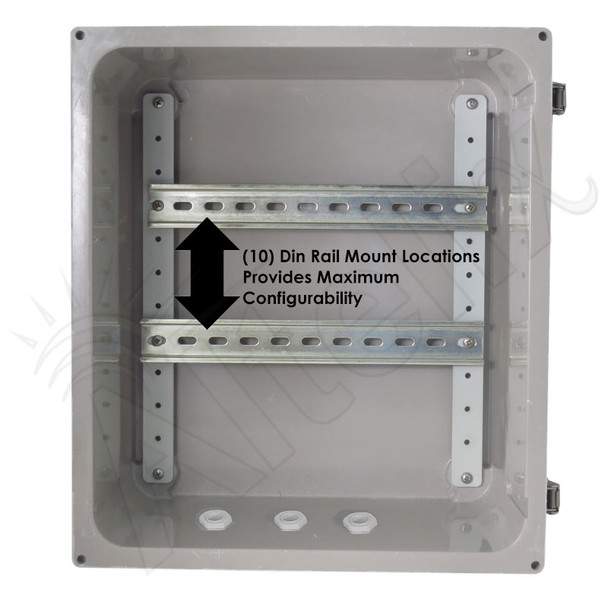

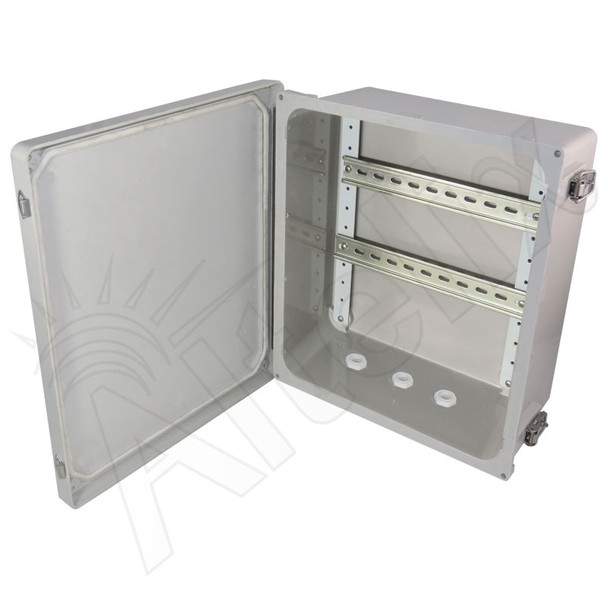

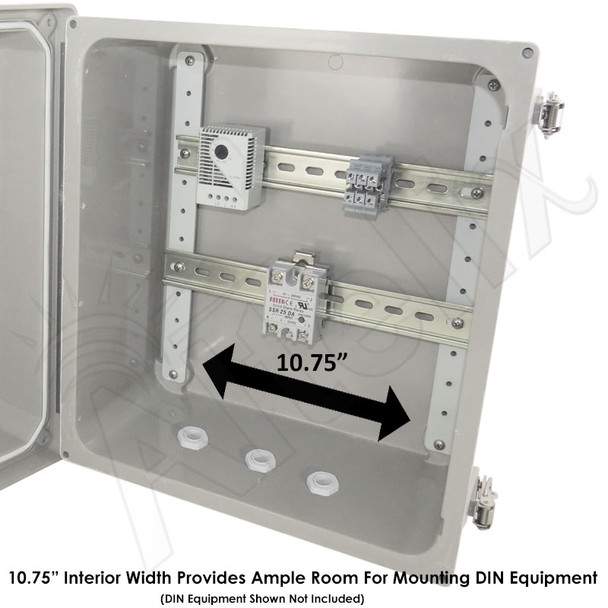

The Altelix NF141206-DIN NEMA 4X Weatherproof DIN Rail Enclosure features two heavy duty 12 gauge steel DIN rail mounting brackets that provide 10 adjustable DIN rail mounting positions. For convenience, the enclosure also includes two pre-cut steel 35mm top-hat rails and mounting hardware.

Extreme Protection Built to Last

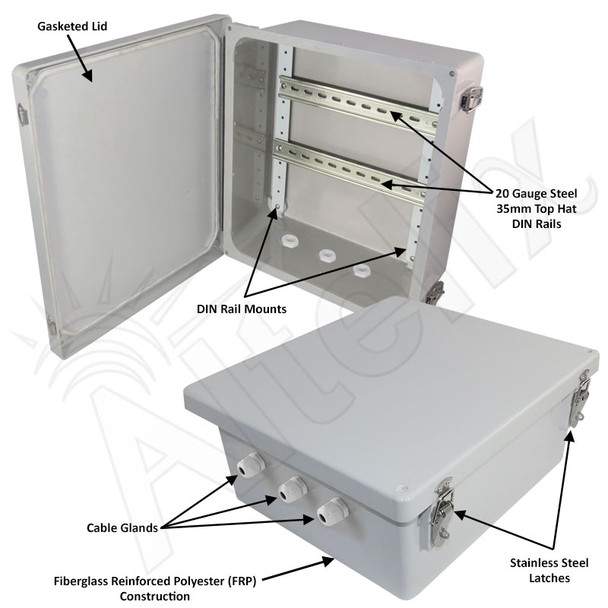

This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure accommodates a wide range of equipment.

Cable Glands
The enclosure features three unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Mounting

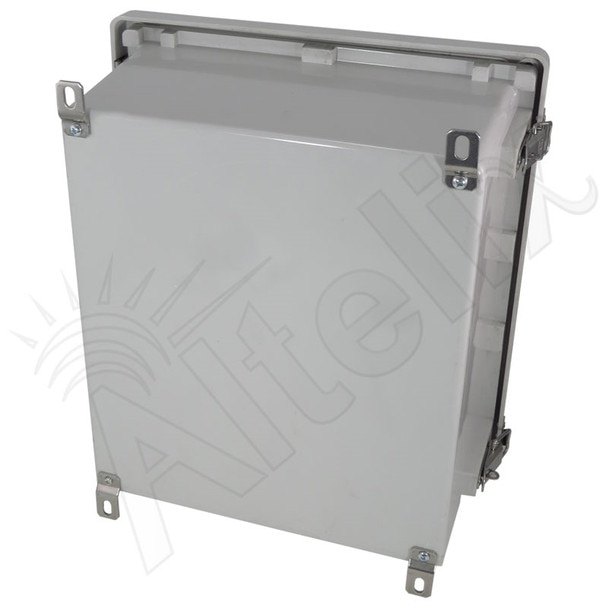

Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available: painted steel (NMKS-300-08) and stainless steel (NMKX-300-08).

Customization
We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

What's in the Box:

• Altelix Enclosure
• Incl. Stainless Steel Mounting Feet. Optional Pole Mount Available.
• Steel Din Rail Mounting Brackets with 10 Rail Mounting Positions
• Includes (2) Steel 35mm Top Hat DIN Rails and Screws
• Includes Cable Glands

Features

• Steel Din Rail Mounting Brackets with 10 Rail Mounting Positions
• Includes (2) Steel 35mm Top Hat DIN Rails and Screws
• Water Resistant JIC Enclosure Design with Gasketed Lid
• Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66
• Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
• Fiberglass Reinforced Polyester, FRP
• Weatherproof, UV Stable and Highly Corrosion Resistant
• Includes Cable Glands and Stainless Steel Mounting Feet
• RF Transparent and Non-Conductive
• Pole Mounting Kit Available

Applications

• Rapid Deployment Communications
• DIN Rail Mounted Equipment
• Harsh Environments
• Building Automation Controls
• Industrial Controls Enclosure
• IoT Sensors
• SCADA Remote Terminal Unit
• Security and Surveillance Systems
• Solar Equipment Enclosure
• Outdoor Use of Indoor Equipment
• Protection from Vandalism
• Concealment of Electronic Equipment
